IDEALPLUSING 19inch Rack Mount Power Converter 220v to 110v Dc Step Down Buck Converter
Product Description
19inch Rack Mount Power Converter 220V to 110V DC Step Down Buck Converter
š” INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
It adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, and beautiful external shape. This is the ideal configuration supplying power to communication equipment of different voltage grades.
ā KEY FEATURES
01Advanced dual-tube forward switch technology with module isolation to prevent interaction.
02N + 1 backup support ensures continuous operation even if one or several modules fail.
03Supports 220VDC, 110VDC, 24VDC power systems with wide input voltage range compatibility.
04Header module with 3.5-digit display for output current and voltage monitoring.
05Standard 19-inch width and 2U height design for easy rack-mounted installation.
06Wide operating temperature range from -10 ā to +50 ā at full output power.
07Compact size and light weight for effortless after-sales maintenance.
08Input and output are completely isolated, ensuring safe and reliable operation.
09Advanced current control mode with a stable and reliable circuit topology.
10High-quality key components sourced from top imported manufacturers.
11Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
12Parallel flow capability for scalable power requirements (Optional).
š MAIN PARAMETERS
| Technical Data-IPS-DTD | 220S1105 | 220S11010 | 220S11020 | Test Conditions | |
|---|---|---|---|---|---|
| Input Voltage Range(VDC) | 220VDC (180-270VDC) | - | |||
| Module Power Surge (A) | DC ā¤ 2A | Output Full Load | |||
| Output Float Voltage (V) | 110VDC | Factory Settings | |||
| Output Current (A) | 5A | 10A | 20A | Output Limit 101%~105% | |
| Load Regulation | ā¤ Ā±0.5% | No load to full load | |||
| Power Regulation | ā¤ Ā±0.2% | - | |||
| Dynamic Response | 100us Max | 20%~100% Load | |||
| Phone Scale Noise Voltage(mV) | ā¤ 2 | Noise meter | |||
| Peak-peak Noise Voltage (mV) | ā¤ 100 | 0~20MHz | |||
| Efficiency | ā„ 83% | - | |||
| Current Deviation | ā¤ Ā±5% | - | |||
| Temperature Coefficient (ā) | 0.02% | - | |||
| Over-temperature protection (ā) | 95 Ā± 5 | Radiator will close > 95ā, recoverable | |||
| Working Temperature (ā) | -5 ~ 45 | - | |||
| Storage Temperature (ā) | -10 ~ 85 | - | |||
| Working Humidity | 5%~95% | Non-condensing | |||
| Insulation Strength | Leakage Current < 30mA | 500Vdc/1min | |||
| Insulation Resistance (MĪ©) | ā„ 20 | DC 1KV | |||
| MTBF (hrs.) | 100000 | - | |||
| Net Weight (Kg) | 7.5 | - | |||
| Dimension Rack-mounted (mm) | 482 * 88 * 240 (L*H*D) | - | |||

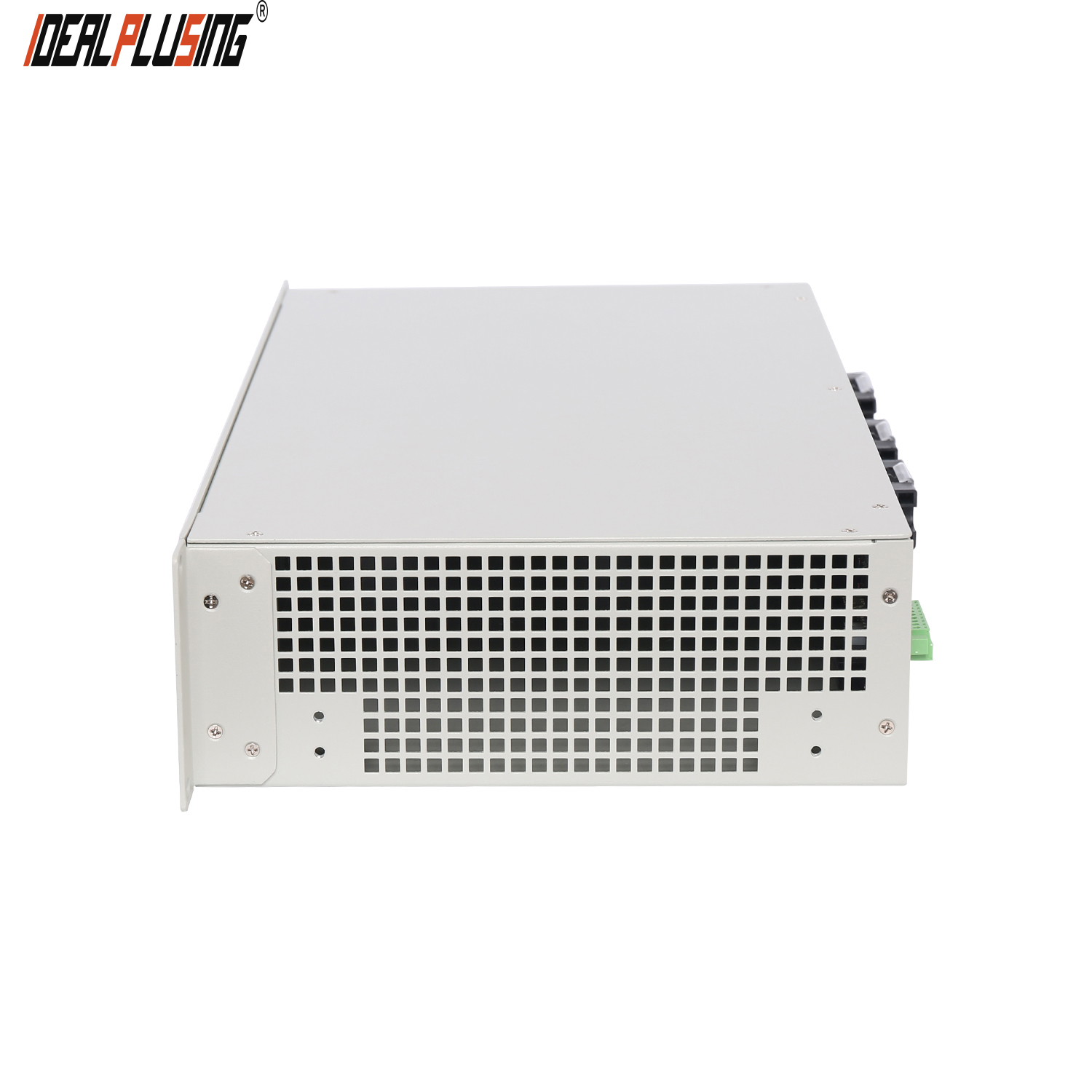

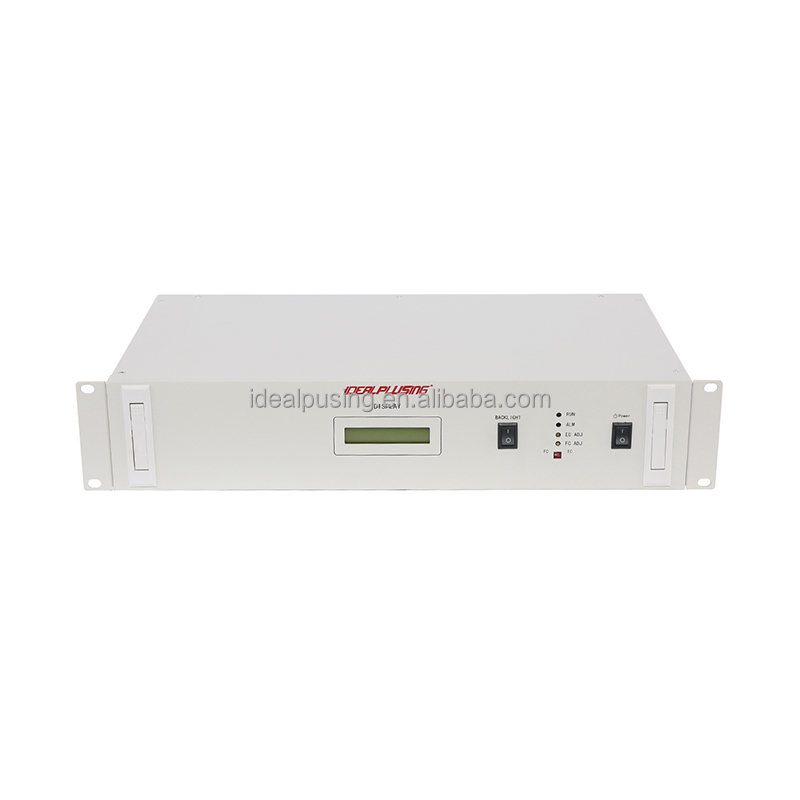

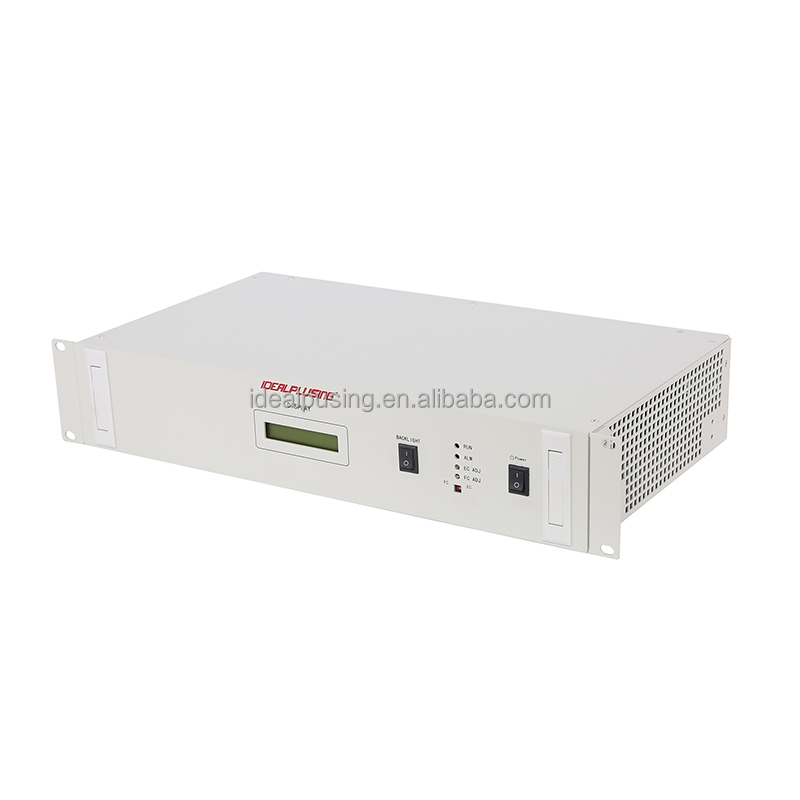

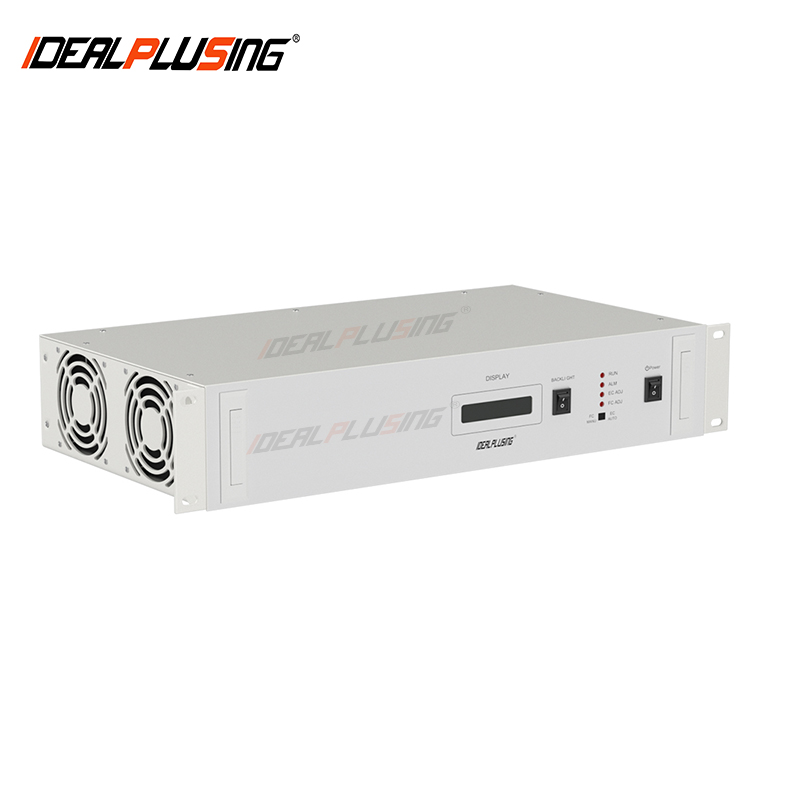

šø REFERENCE PICTURES
Note: Versions with battery port available upon request.

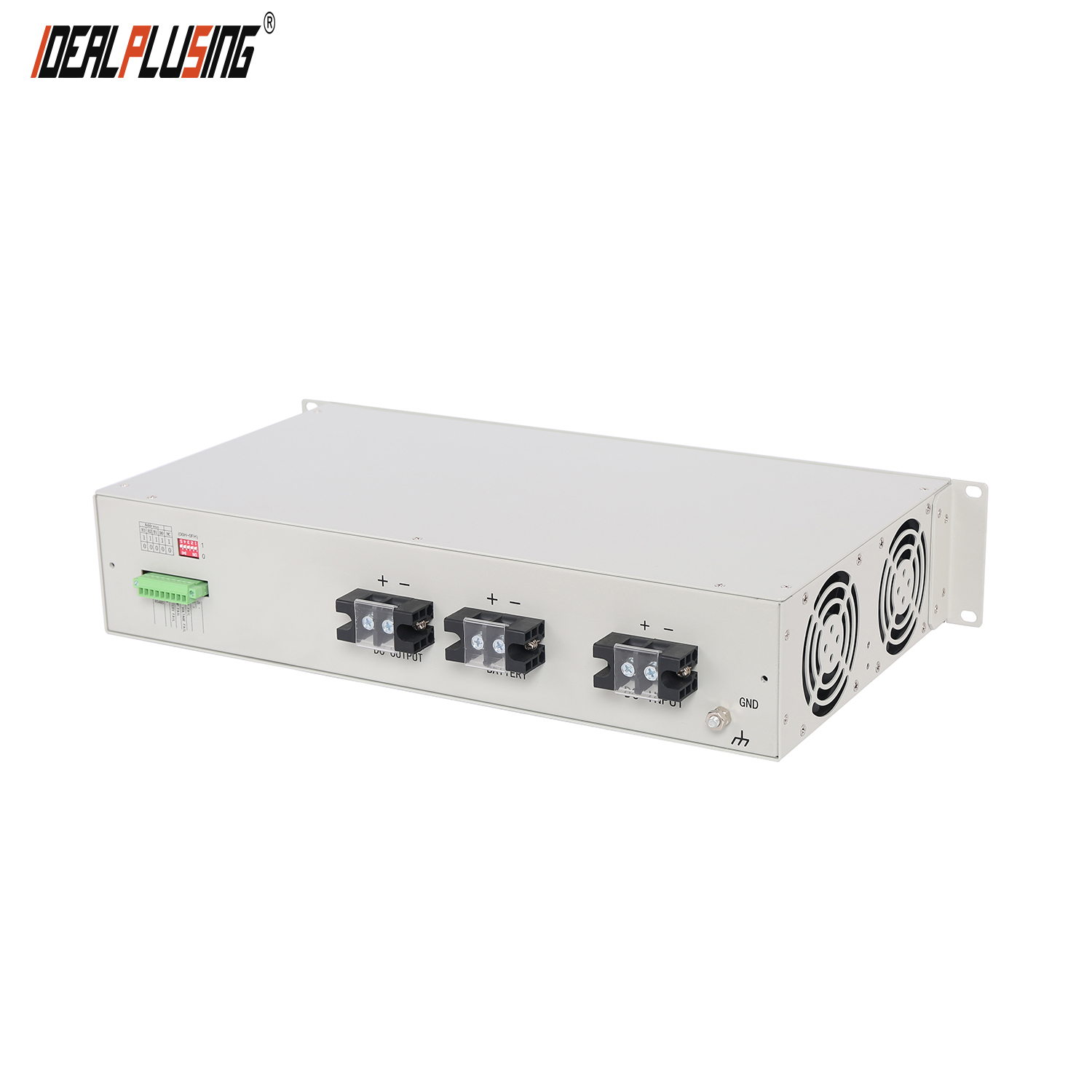

š BASIC CONNECTION
š FACTORY DISPLAY
Frequently Asked Questions
ā What is the input voltage range of this DC-DC converter?
The standard input voltage is 220VDC, with a wide operating range of 180VDC to 270VDC, making it compatible with various power grid systems.
ā Does the module support N+1 backup parallel operation?
Yes, it supports N+1 backup. In this configuration, even if one or several modules fail, the parallel operation of other modules remains unaffected, and automatic current sharing is achieved.
ā What kind of protection features are included?
The converter includes comprehensive protection for output over-voltage, over-current, short circuit, and whole-unit overheating (triggering at 95Ā±5ā).
ā Can I monitor the voltage and current output?
Yes, the module is equipped with a 3.5-digit table display that clearly shows the real-time output current and voltage for easy monitoring.
ā Is the installation suitable for standard server racks?
Yes, it features a standard 19-inch width and 2U height rack-mounted design, allowing for simple and professional installation in standard communication cabinets.
ā What is the efficiency and noise level of the converter?
The unit offers high efficiency (ā„83%) and low noise operation, with peak-to-peak noise voltage kept below 100mV for stable power delivery.
