IPS-DTD220S2430 IDEALPLUSING Hot Selling 220v Dc to 24v Dc 30a 720w Dc Converter
Product Description
IPS-DTD220S2430 220v dc to 24v dc 30a 720w dc converter
1. INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
2. FEATURES
1Advanced dual-tube forward switch technology with module isolation.
2N + 1 backup support with automatic current sharing between modules.
3Supports 220VDC, 110VDC, and 24VDC systems with a wide input range.
4Header module with clear display for output current and voltage.
5Standard 19-inch 2U rack-mounted design for easy installation.
6Wide operating temperature range: -10 ℃ ~ +50 ℃ with full output power.
7Small size, light weight, and easy maintenance.
8Complete input and output isolation for safety and reliability.
9Advanced current control mode and stable circuit topology.
10High-quality key components using imported devices.
11Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
12Optional support for parallel flow use.
3. MAIN PARAMETER
| Technical Data (IPS-DTD220S24) | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
|---|---|---|---|---|---|---|---|
| Input Voltage Range (VDC) | 180~270VDC | - | |||||
| Module Power Surge (A) | DC ≤ 2A | Output Full Load | |||||
| Output Float Voltage (V) | 24VDC | Factory Settings | |||||
| Output Current (A) | 10A | 20A | 30A | 40A | 50A | Output Limit 101%~105% | |
| Load Regulation | ≤±0.5% | No load to full load | |||||
| Power Regulation | ≤±0.2% | - | |||||
| Dynamic Response | 100us Max | 20%~100% Load | |||||
| Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | |||||
| Efficiency | ≥83% | - | |||||
| Over-temperature protection (℃) | 95±5 | Radiator will close, can recover | |||||
| Working Humidity | 5%~95% | Non-condensing | |||||
| Insulation Resistance (MΩ) | ≥20 | DC 1KV | |||||
| Net Weight (Kg) | 7.5 | - | |||||
| Dimension | Rack-mounted (L*H*D) | 482*88*240(MM) | - | ||||

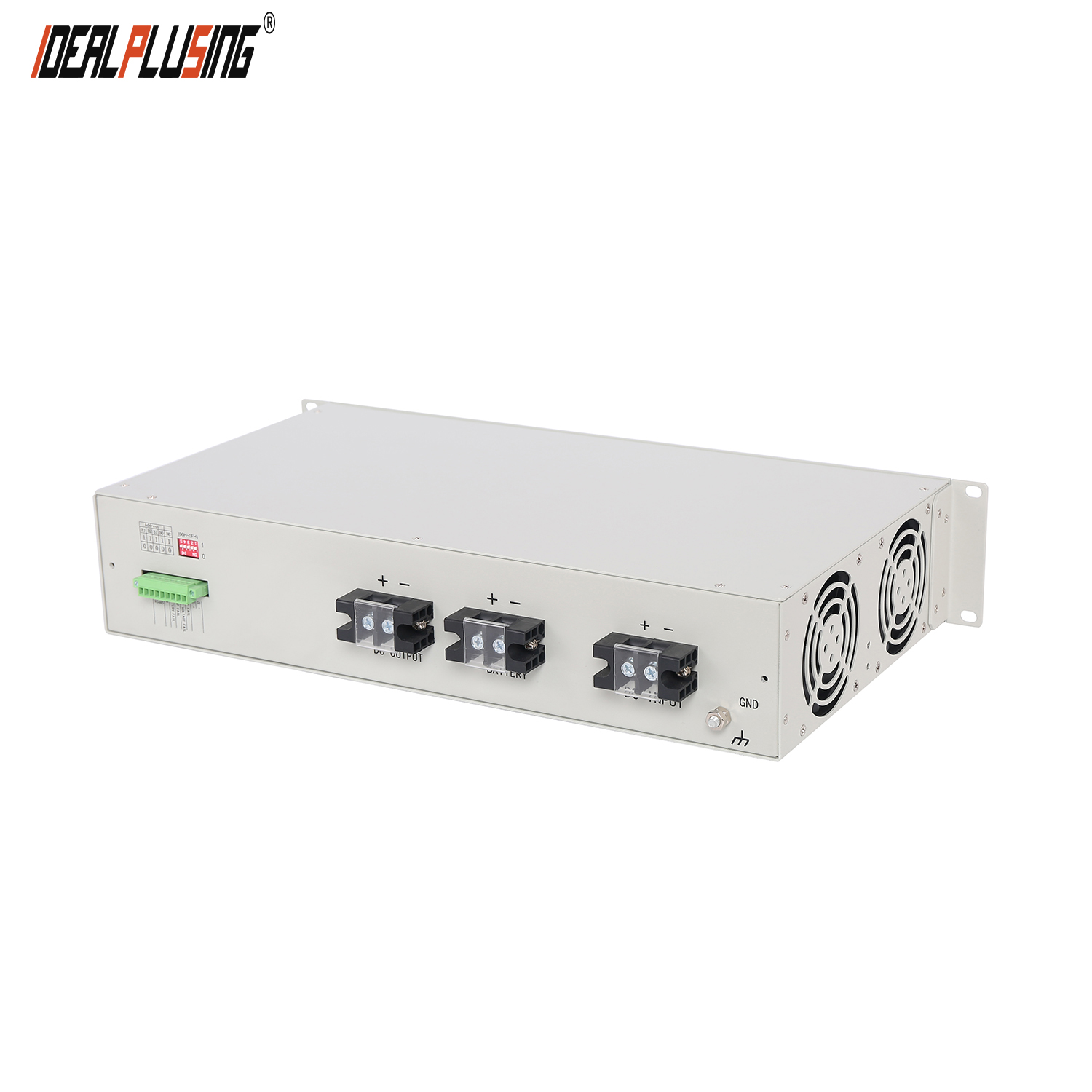

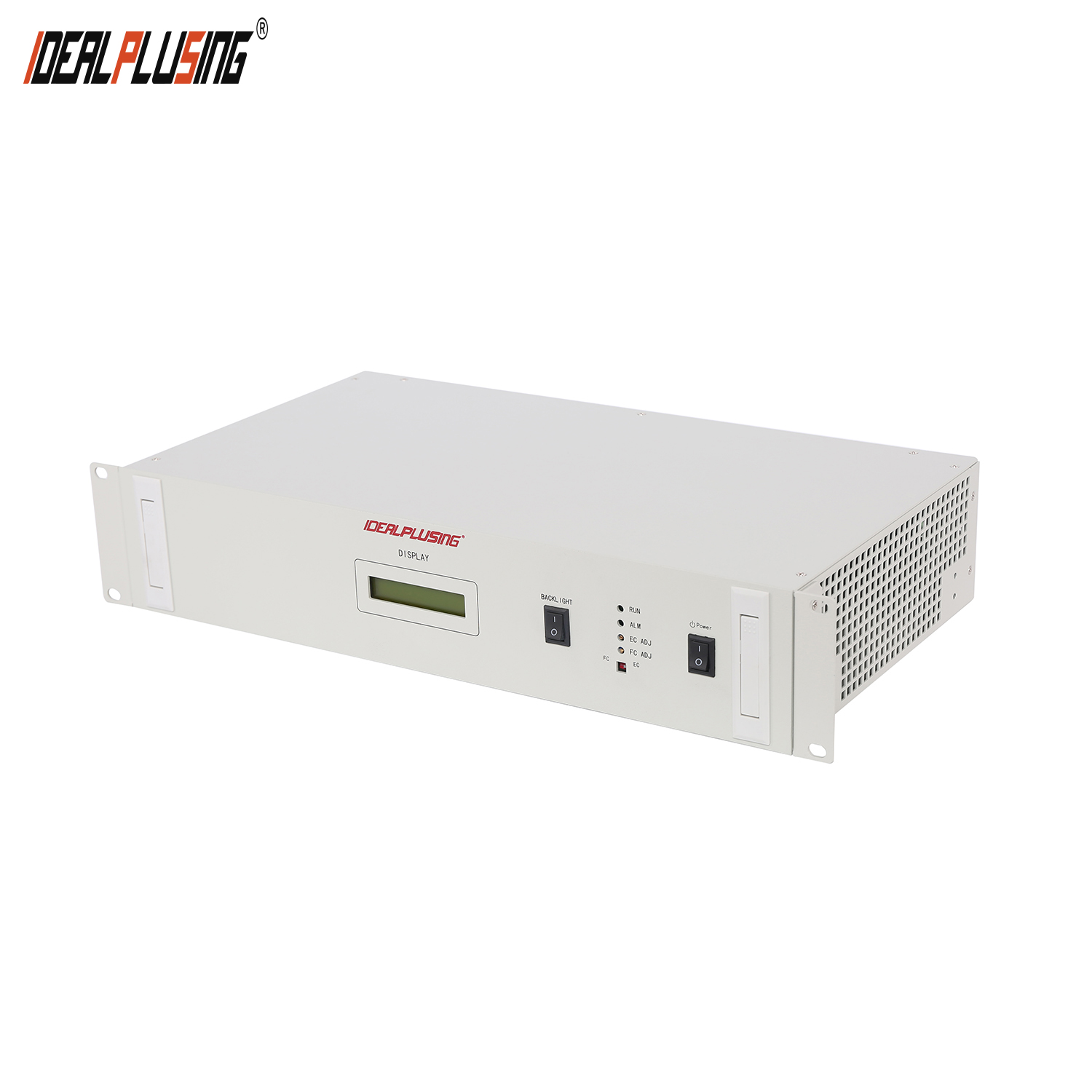

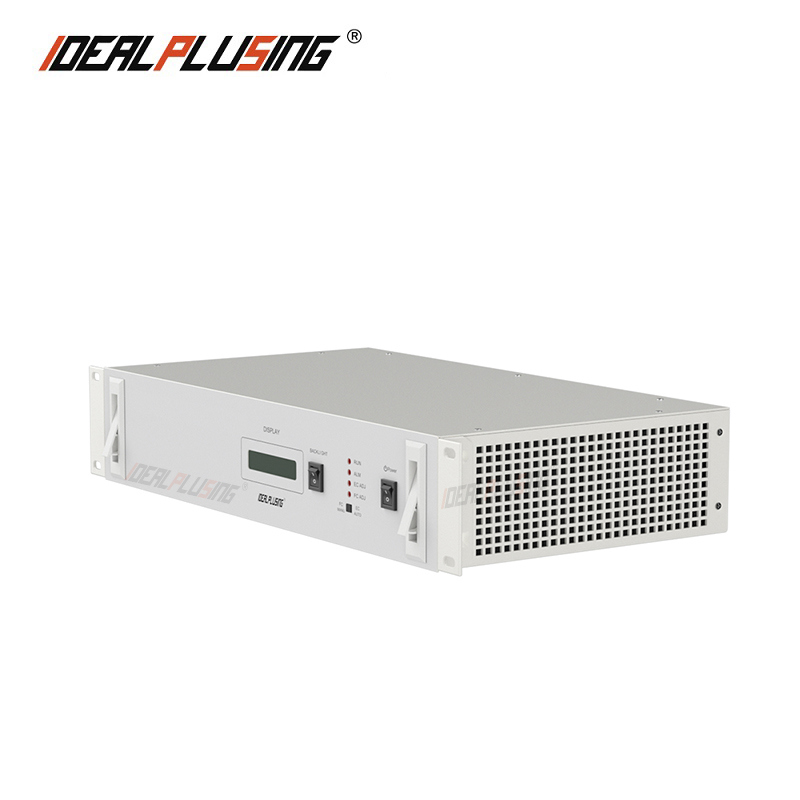

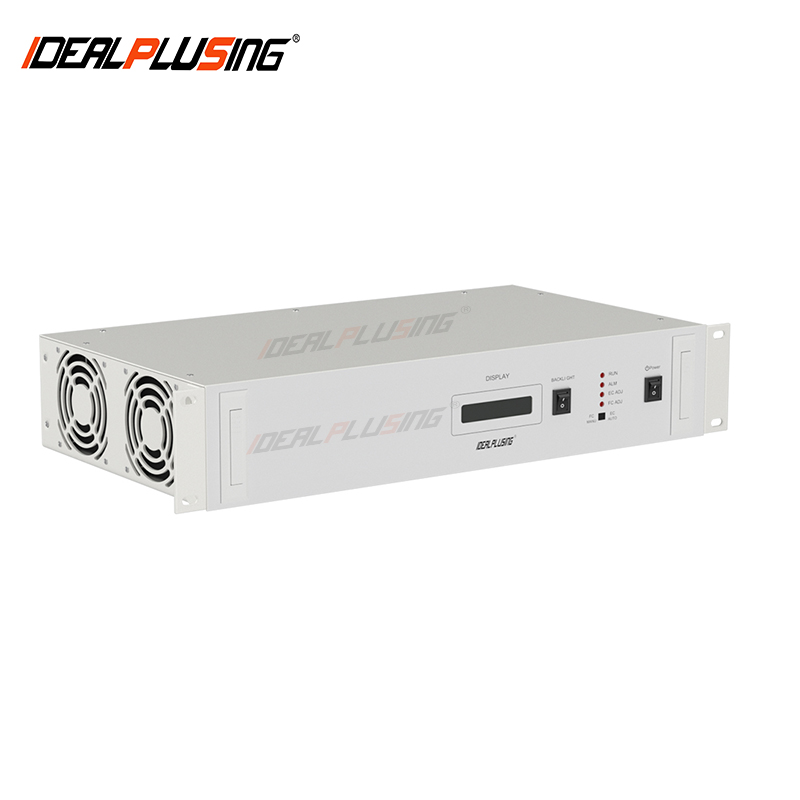

4. REFERENCE PICTURES

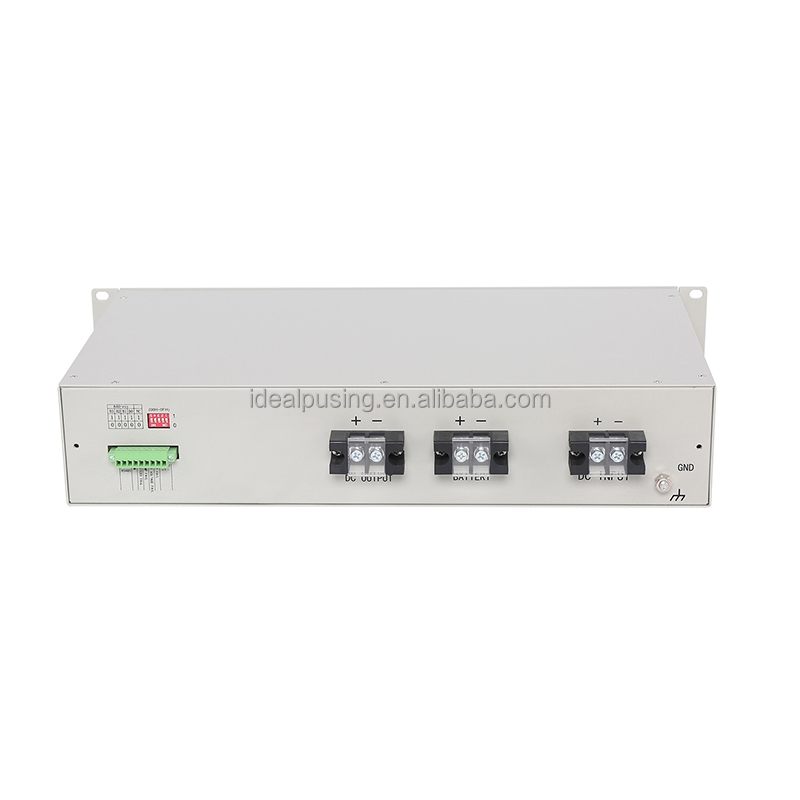

5. BASIC CONNECTION
Frequently Asked Questions
What is the input voltage range for this DC-DC converter?
The input voltage range is 180~270VDC, making it suitable for various power grid system requirements.
Is the output isolated from the input?
Yes, the input and output are completely isolated, ensuring a safe and reliable power supply for your equipment.
What kind of protection features are included?
It includes comprehensive protection functions such as output over-voltage, over-current, short circuit, and overheating protection.
Can multiple modules be used in parallel?
Yes, it supports N + 1 backup. Even if one module fails, others continue to operate, and automatic current sharing is achieved between modules.
What is the operating temperature range?
The unit operates efficiently within a temperature range of -10 ℃ to +50 ℃ at full output power.
What is the physical size of the rack-mounted unit?
The unit uses a standard 19-inch 2U rack-mounted design, with dimensions of 482*88*240mm.
