Factory Production 19 Inch Rack Type 24VDC 30A Rectifier System Power Battery Charger Has Complete protection Functions
Product Description
I. INTRODUCTION
⚡
High-Frequency Switching
Designed mainly for communications base stations, servers, telecommunications, local area networks, access network equipment, and program-controlled switches.
🛡️

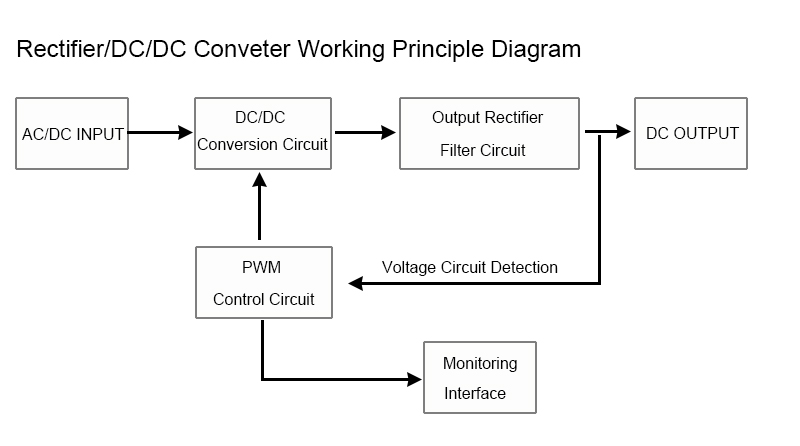

Dual-Tube Forward Switch
Features advanced dual-tube forward switch technology, implementing isolation between modules to completely prevent any operational interaction.
🔒
Multiple Protection
Equipped with complete safety functions including AC input over-voltage, DC output over-voltage, over-current, and short-circuit protections.
📐
Standard Rack-Mounted
Standard 19-inch width and 1U height compact structure with ultra-low radiation, strictly meeting electromagnetic compatibility industry standards.
II. PRODUCT SPECIFICATIONS
- ✓ Application: Telecommunications equipment / switches / servers / Ethernet / LAN / MAN / communications base stations
- ✓ Working Mode: AC / DC
- ✓ Nominal Voltage: +24VDC, -24VDC
- ✓ Rated Current: 10A~50A
- ✓ Module Configuration: None (single type)
- ✓ Power Distribution: No (terminal block output, 1 load interface, 1 battery interface)
- ✓ Outer Structure: Rack type (2U)
III. FEATURES
1

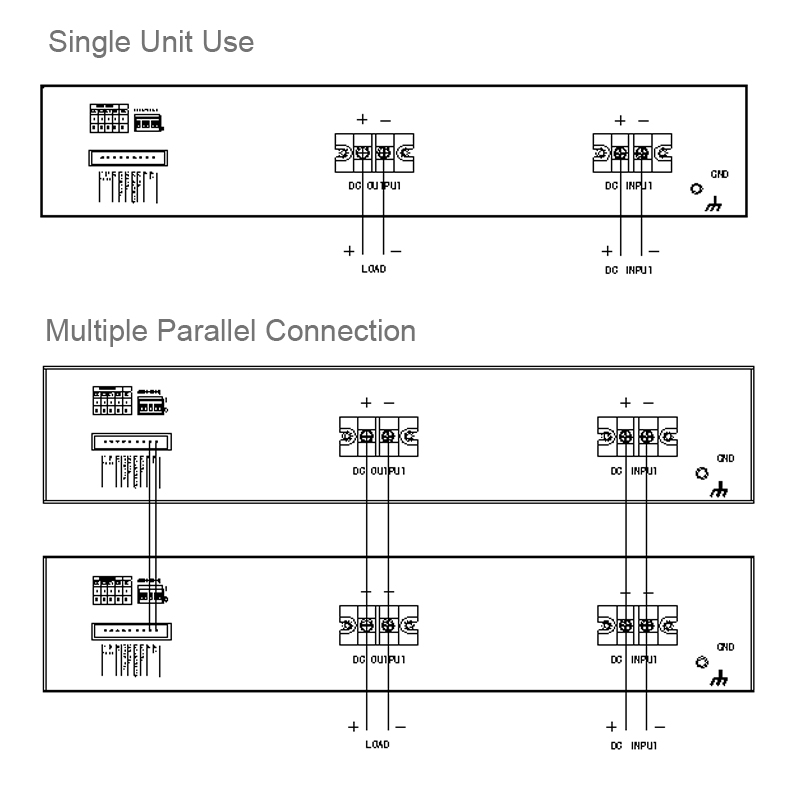

The use of advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules.
2
With AC input over-voltage protection, DC output over-voltage protection, over-current protection, short circuit protection, and other multiple protection.
3
They can meet the 220V AC, 110V AC power supply system standards. Wide input voltage range, the basic application to a variety of power grid system power supply requirements, compatibility is better.
4

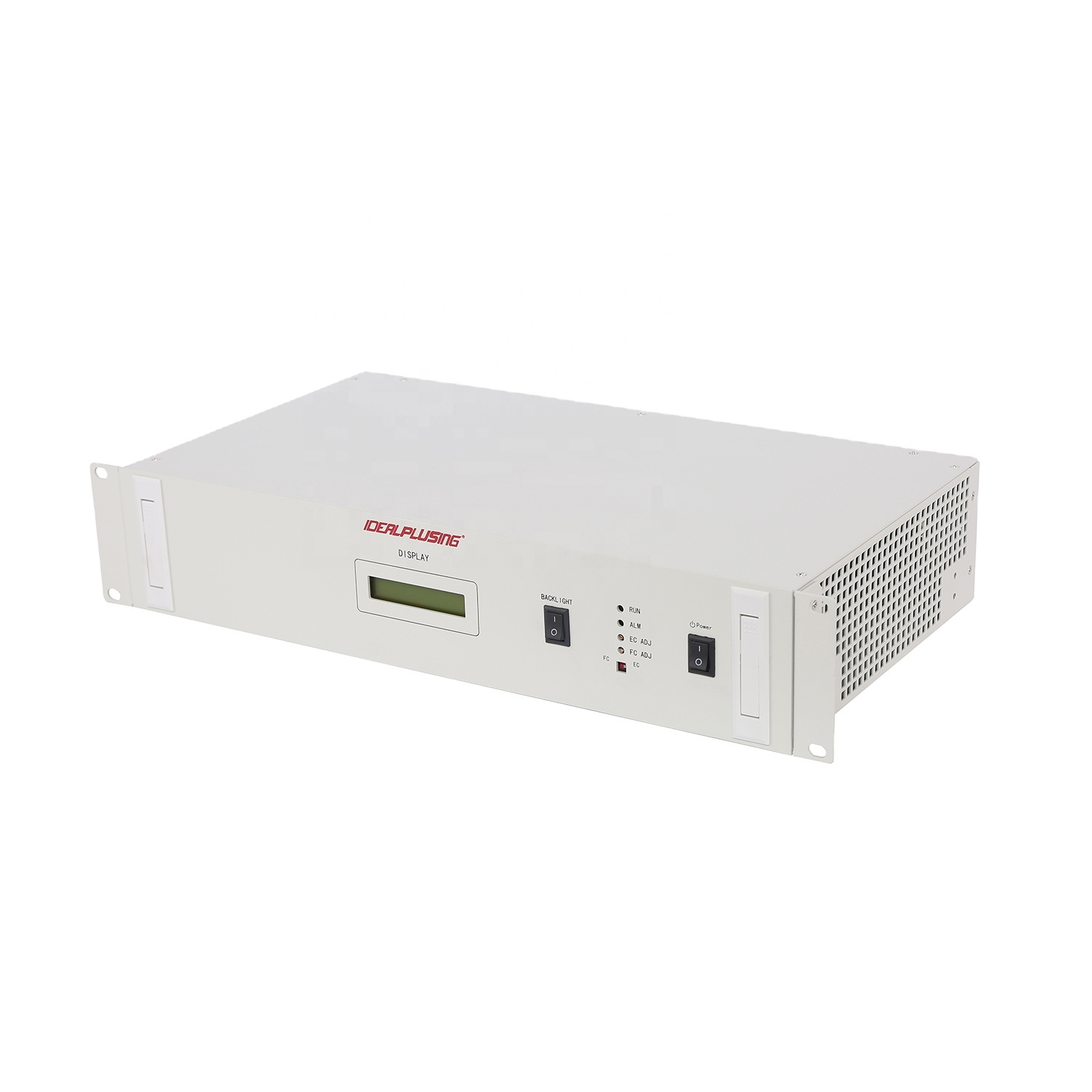

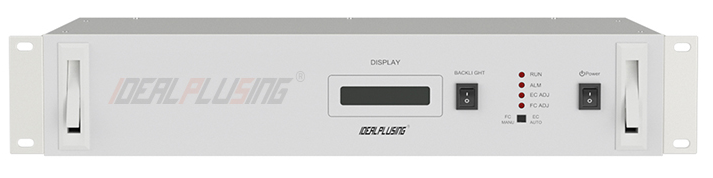

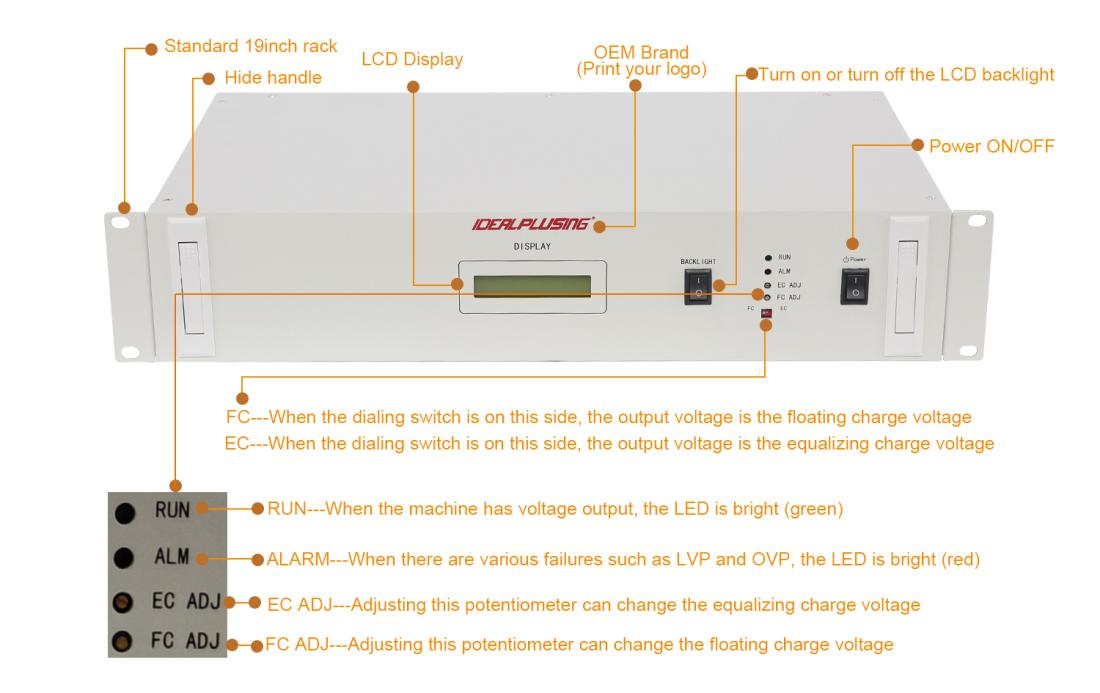

The head module uses a 3 and a half table display, displays the output current and voltage, simple and practical.
5
The module is designed with a standard rack-mounted design with a width of 19 inches and a height of 1U/2U.
6
Wide operating temperature range. -25℃~+55℃ temperature range can be full output power.
7
Small size, lightweight, easy after-sales maintenance.
IV. TECHNICAL PARAMETERS
| Technical Characteristics | Parameters | ||||||
|---|---|---|---|---|---|---|---|
| Model | IPS-RT2410 | IPS-RT2420 | IPS-RT2430 | IPS-RT2440 | IPS-RT2450 | ||
| AC Input | Input | Single-phase three-wire system (L/N/PE) | |||||
| Input voltage(V) | 220VAC±20% or customize 110VAC±20% | ||||||
| Input Frequency | Rated input frequency: 50/60HZ, Fluctuation range: 45Hz~66Hz | ||||||
| Inrush current | Under rated input conditions, the starting inrush current is not greater than the rated operating state of the input current peak value of 150% (from current spikes caused by capacitance EMI not considered) | ||||||
| Effectiveness | ≥88% | ||||||
| Input power factor | ≥0.9 | ||||||
| DC Output | Output Power(W) | 240W | 480W | 720W | 960W | 1200W | |
| Output voltage(V) | 24VDC | ||||||
| Rated output current(A) | 10A | 20A | 30A | 40A | 50A | ||
| Regulators Accuracy | ≤±2V | ||||||
| Broadband noise voltage | ≤50mV (3.4KHZ~150KHz) | ≤20mV (0.15KHZ~30MHz) | ||||||
| Discrete frequency noise voltage | ≤5mV (3.4KHZ~150KHz) | ≤3mV (150KHZ~200MHz) ≤2mV (200KHz~500KHz) | ≤1mV (0.5KHZ~30MHz) |
||||||
| Peak noise voltage | ≤150mV (20MHz bandwidth) | ||||||
| Current capacity of inter-module | The maximum and the minimum of the following difference 2A (above 10% load) | ||||||
| Security | Insulation strength | Input to output: 1500VDC | Input to chassis: 1500VDC | Output to chassis: 500VDC | |||||
| Leakage current | <1.5mA | ||||||
| Reliability | MTBF≥100000h | ||||||

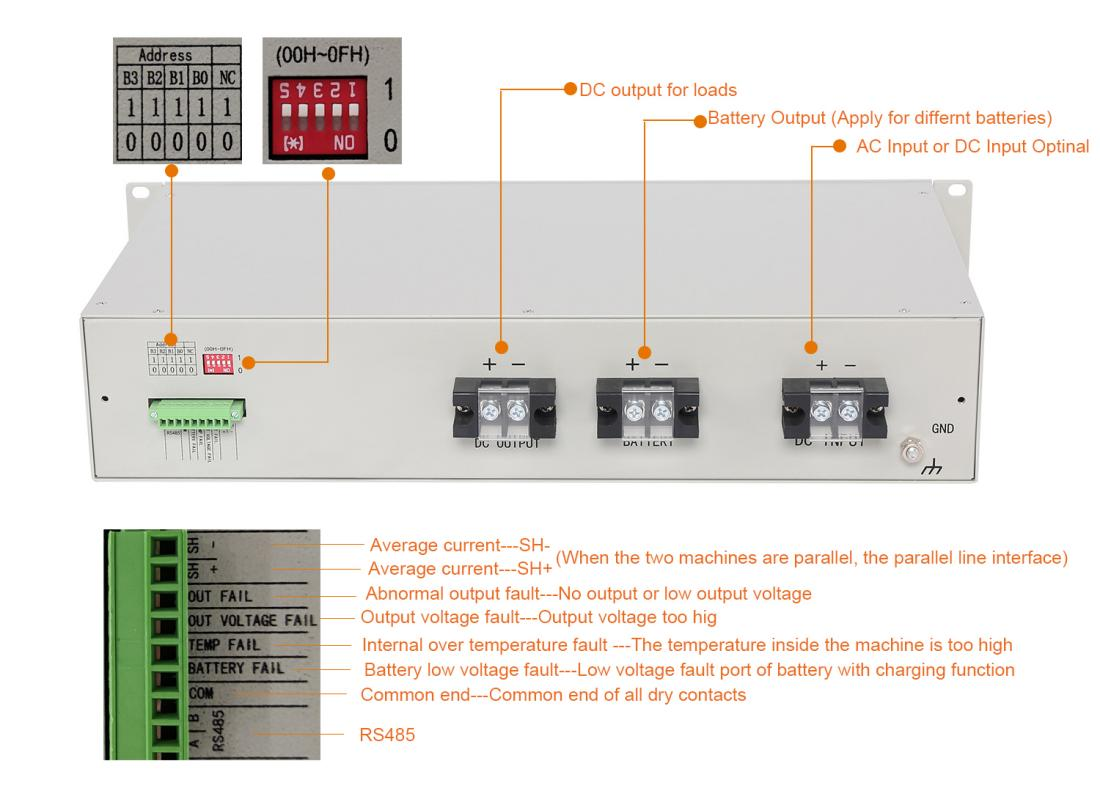

| Battery Port (Optional) | 24VDC*5A | ||||||
| RS485 Communication Port (Optional) | RS485*1 | ||||||

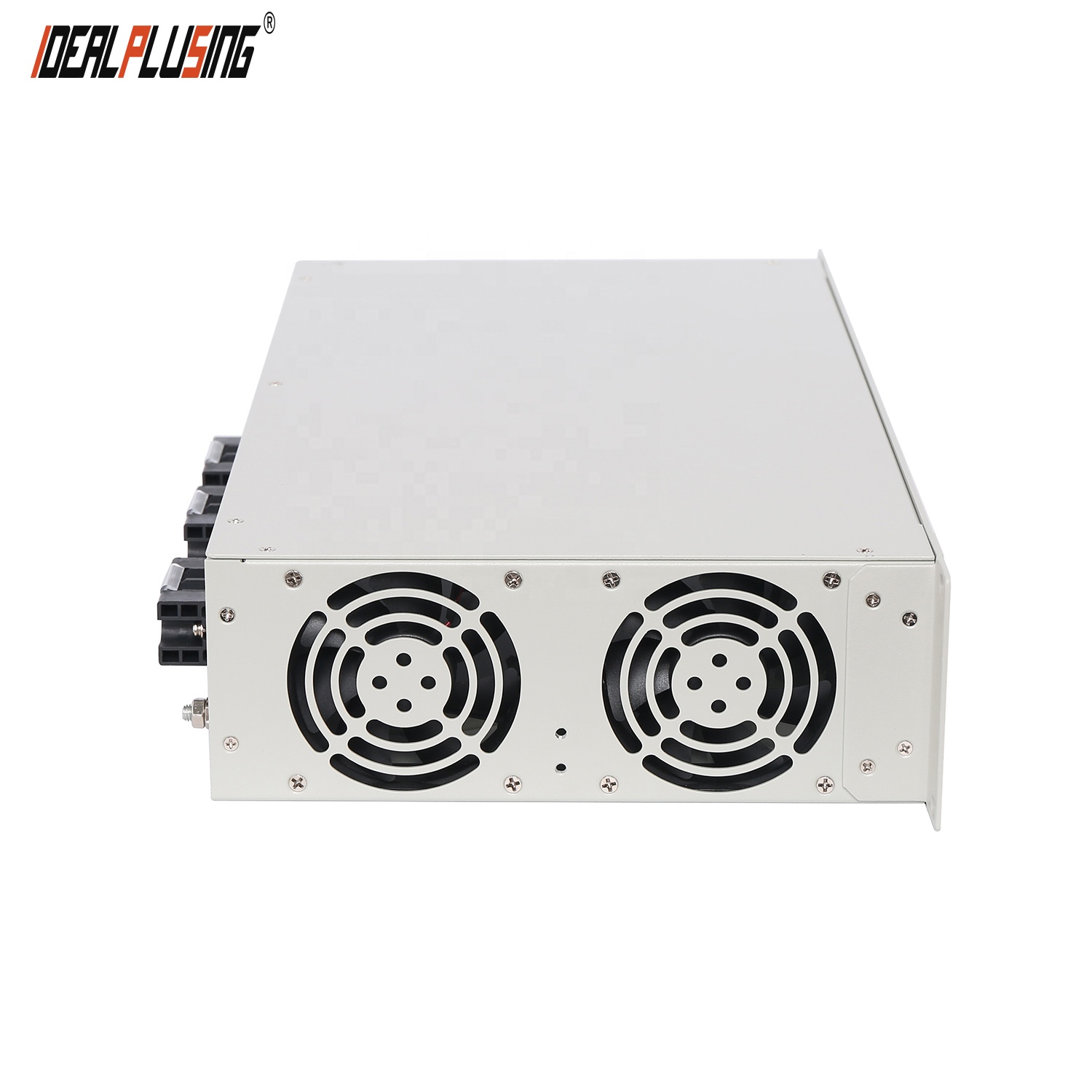

| Cooling method | Forced air cooling (internal rectifier DC fans, wind flow 42CFM) | ||||||
| Working Environment | Operating temperature | -10℃~+50℃ | |||||
| Storage temperature | -40℃~+85℃ | ||||||
| Relative humidity | 10%~90% (No condensation) | ||||||

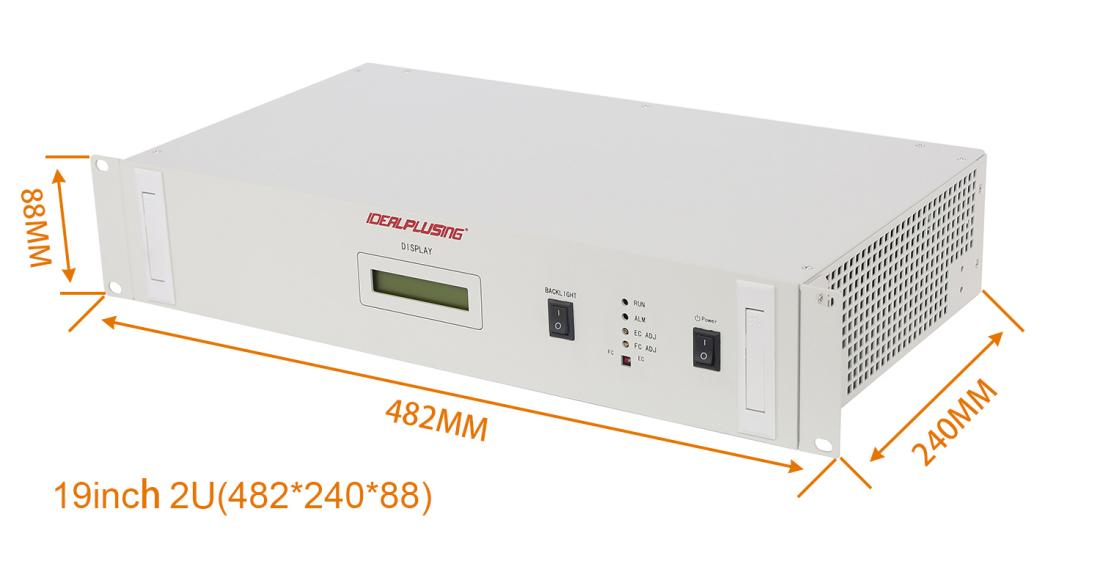

| Mechanical Parameters | Machine Dimensions | L482*W240*H88 (MM) | |||||
| Package Dimensions | L610*W360*H170 (MM) | ||||||
| Net Weight / Gross Weight | 8.5KG / 11KG | ||||||

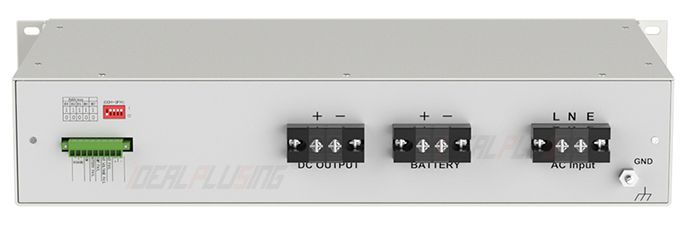

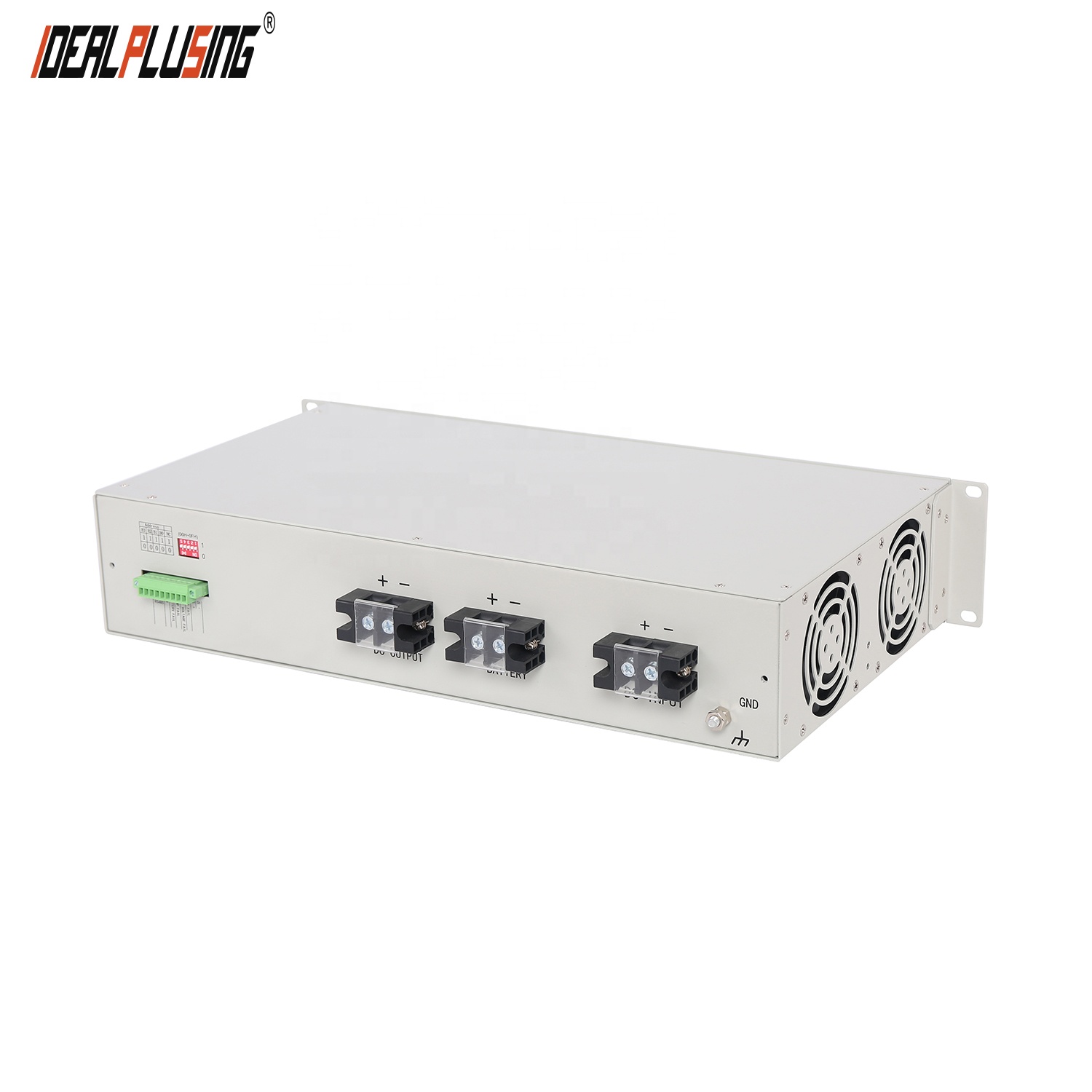

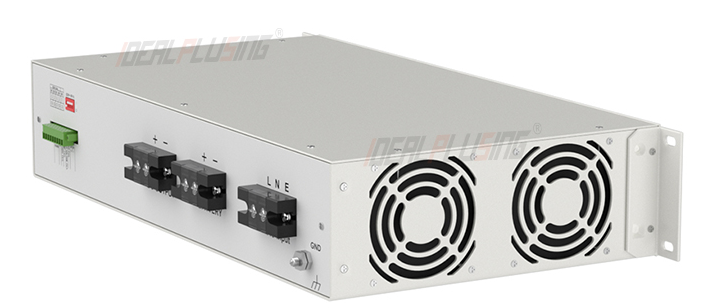

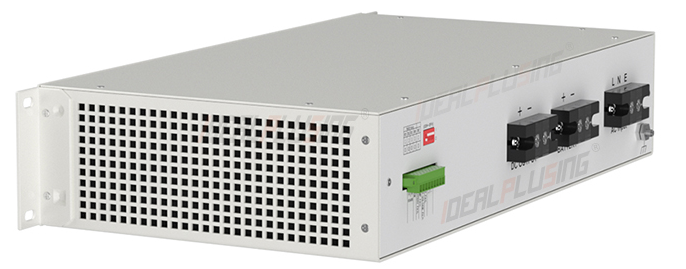

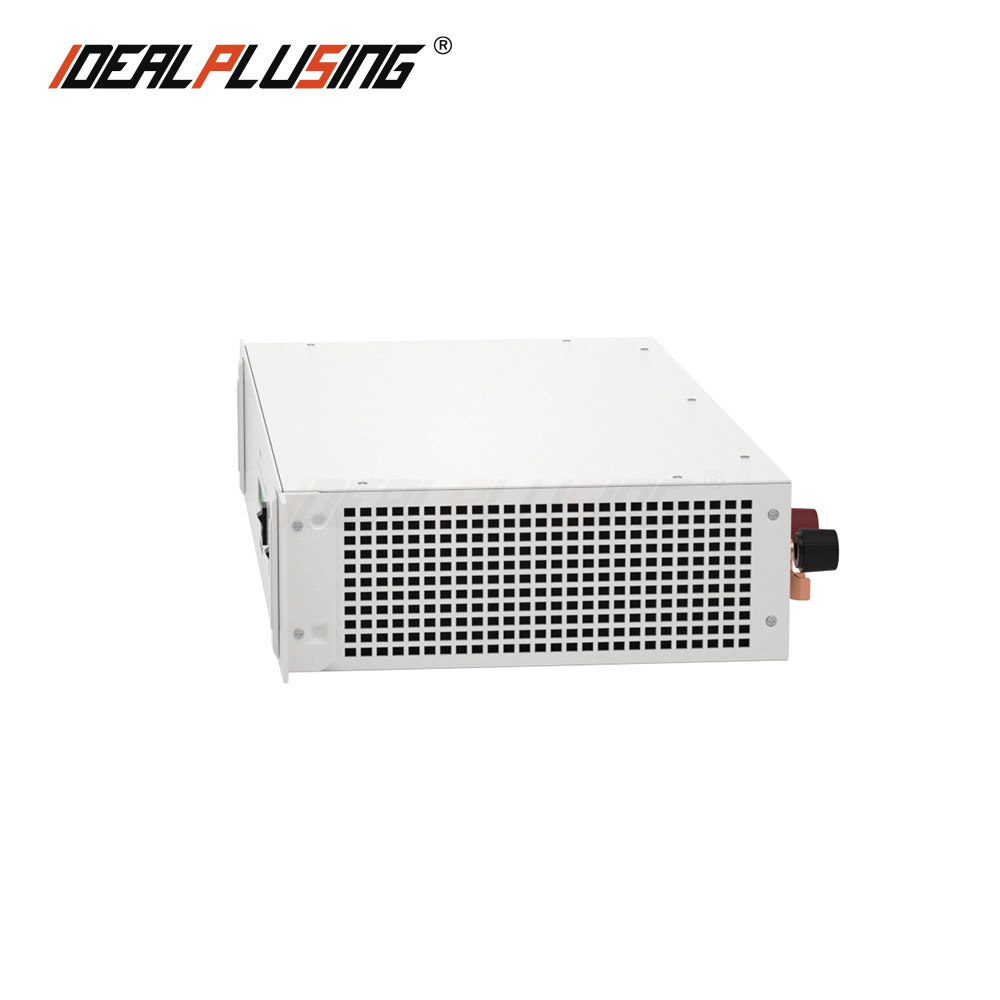

V. REFERENCE PICTURES (WITH BATTERY PORT)
Frequently Asked Questions (FAQ)
What are the primary applications of this 24VDC rectifier system power charger?
This system is mainly engineered for mobile communications, program-controlled switches, access network equipment, telecommunication systems, servers, local area networks (LAN), and communication base stations.
What protective safety features does the system have?
It incorporates comprehensive safeguards, including AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short circuit protection.
What mounting size and standards does this module use?
It features a standard 19-inch wide rack-mounted design, utilizing either a compact 1U or 2U height depending on the chosen configuration, making integration into server cabinets clean and efficient.
Does this rectifier power supply support dual grid inputs?
Yes, the power system is highly compatible and can meet both 220V AC and 110V AC input system standards with a wide overall voltage input range.
How is mutual interference prevented between multi-module configurations?
The series adopts advanced dual-tube forward switch technology, implementing isolation between modules to completely prevent any interaction or mutual interference.
