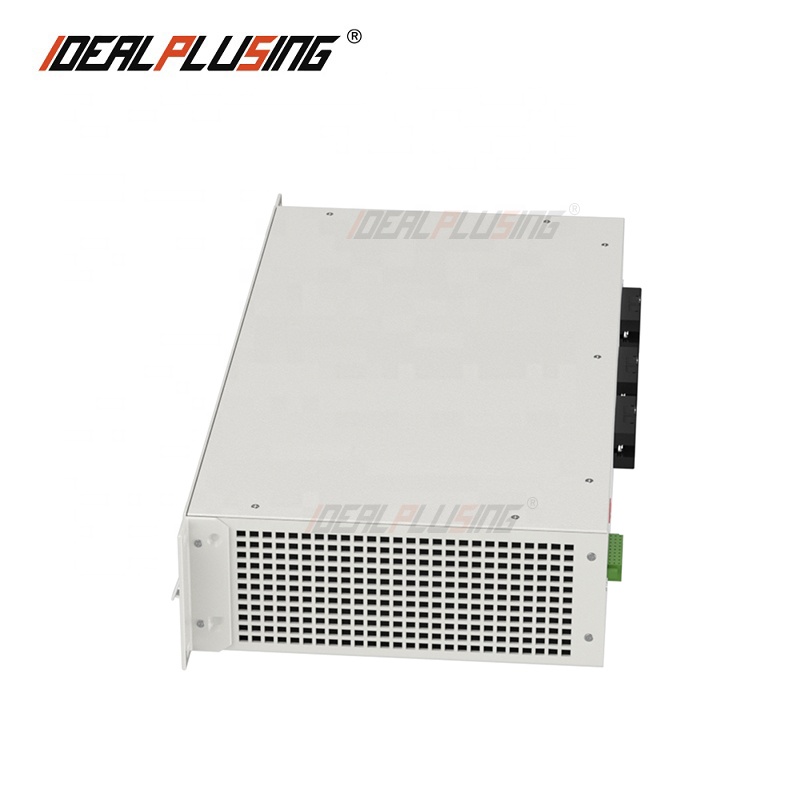

Input 220vac Output Dc 110v Power Supply Rectifier 10a for Telecom
Product Description
Input 220vac output dc 110v power supply rectifier 10a for telecom
110vdc switching power supply
📋
Specification
| Technical Characteristics | Parameter | ||
| AC Input | Input | Single-phase three-wire system (L/N/PE) | |
| Input Voltage (V) | AC220V | ||
| Input Frequency | Rated input frequency: 50/60HZ, Fluctuation range: 45Hz~66Hz | ||
| Inrush Current | Under rated input conditions, the starting inrush current is not greater than the rated operating state of the input current peak value of 150% (from the current spikes caused by capacitance EMI does not consider) | ||
| Effectiveness / Power Factor | Effectiveness: ≥88% | Power factor: ≥0.9 | ||
| Model | IPS-RT11010 | ||
| DC Output | Output Power (W) | 1100W | |
| Output Voltage (V) | 110V DC | ||
| Rated Output Current (A) | 10A (Current values: 11A) | ||
| Regulators Accuracy | ≤±2V | ||
| Broadband Noise Voltage | ≤50mV (3.4KHZ~150KHz) | ≤20mV (0.15KHZ~30MHz) | ||
| Discrete Frequency Noise | ≤5mV (3.4KHZ~150KHz), ≤3mV (150KHZ~200MHz), ≤2mV (200KHz~500KHz), ≤1mV (0.5KHZ~30MHz) | ||
| Peak Noise Voltage | ≤150mV (20MHz bandwidth) | ||
| Inter-module Current Capacity | Parallel connection: The maximum and the minimum of the following difference 2A (above 10% load) | ||
| Security | Insulation Strength | Input to output: 1500VDC | Input to chassis: 1500VDC | Output to chassis: 500VDC | |
| Leakage Current | <1.5mA | ||
| Reliability | MTBF ≥ 100,000h | ||
| Cooling Method | Forced air cooling (internal rectifier DC fans, wind flow 42CFM) | ||
| Working Environment | Operating Temperature | -10°C ~ +50°C | |
| Storage Temperature | -40°C ~ +85°C | ||
| Relative Humidity | 10% ~ 90% (No condensation) | ||
| Mechanical Parameter | Dimensions (W*H*D) | 482 mm * 88 mm * 300mm (10A-60A) 482 mm * 88 mm * 350mm (80A-100A) |
|
| Weight | 8.5 KG (10A-60A), 12 KG (80A-100A) | ||
🔍
Detailed Images
⚙️
Customize Range
We can customize 110vdc switching power supply specifications as follows:
(1) Input:
220Vac/110Vac, 45-65HZ.
(2) Output:
24V/48V/110VDC, available in 5A/10A/15A/20A/25A/30A/50A/60A/75A/120A/150A/200A/450A...
🏭
Factory Display
⚡
Product Highlights & Design
💡
Frequently Asked Questions
💬 Q1. Can I have a sample order of 220vac to 110vdc rectifier?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
💬 Q2. What about the lead time?
Most models are in stock. The sample lead time after receiving payment is 1-3 working days.
💬 Q3. Do you have any MOQ limit?
We support low MOQ. 1 piece for sample checking is available.
💬 Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
💬 Q5. How to proceed with an order?
Initially, let us know your requirements or application. We will quote according to your needs or offer our suggestions. Customers then confirm the samples and place a deposit for the formal order, after which we arrange production.
💬 Q6. Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply products.
