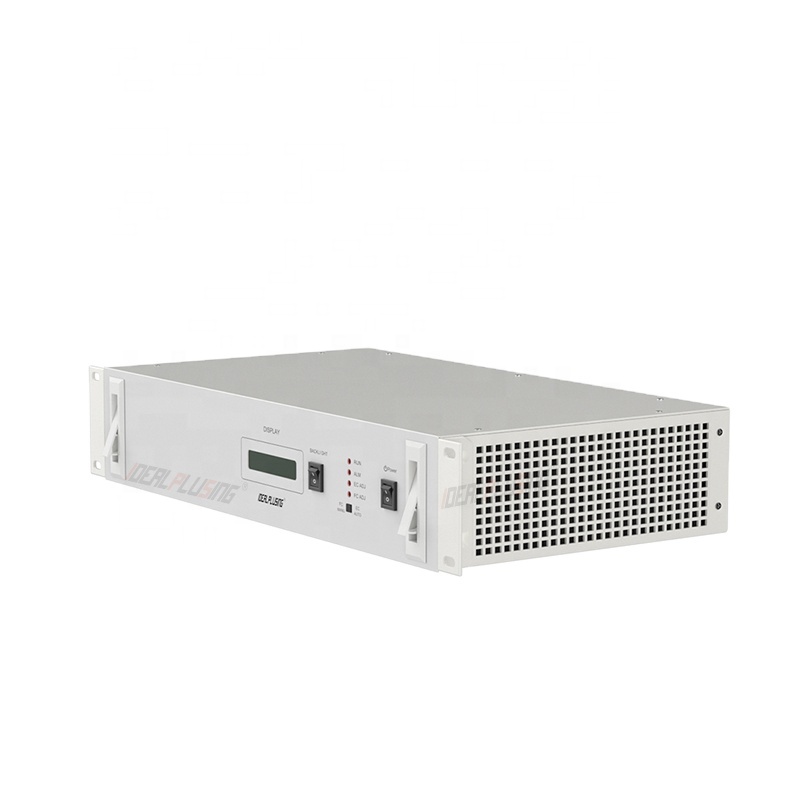

Factory Production Converter Step Down 48v Dc to 110vdc 20a Converter 19 Inch Rack Type Converter Step up Module
Product Description
IPS-DTD48S11020 48VDC-110VDC 20A DC DC Converter
1 INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
This converter adopts high-frequency switching technology and offers numerous advantages, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, light weight, and a beautiful external shape. It is the ideal configuration for supplying power to communication equipment across different voltage grades.
2 FEATURES
✓
Advanced dual-tube forward switch technology with module isolation to prevent interaction.
✓
N + 1 backup support: failure of one module does not affect others; supports automatic current sharing.
✓
Wide input voltage range, compatible with 220V DC, 110V DC, and 24VDC power systems.
✓
Header module with 3.5-digit display for real-time output current and voltage monitoring.
✓
Standard 19-inch 2U rack-mounted design for easy installation.
✓
Wide operating temperature range (-10°C to +50°C) with full power output capability.
✓
Input and output completely isolated for maximum safety and reliability.
✓
Advanced current control mode and stable circuit topology using high-quality components.
✓
Comprehensive protection: over-voltage, over-current, short circuit, and overheating protection.
3 CUSTOMIZE RANGE
| Model list - 19 inch Rack Mount DC DC CONVERTER | ||||
|---|---|---|---|---|
| NO | Input Voltage (VDC) | Output Voltage (VDC) | Output Current (AMPS) | Size (MM) |
| [24VDC to 48VDC] Series | ||||
| #1 | 24VDC | 48VDC | 10A | 19” 2U (482*240*88) |
| #2 | 24VDC | 48VDC | 20A | 19” 2U (482*240*88) |
| #3 | 24VDC | 48VDC | 30A | 19” 2U (482*240*88) |
| #4 | 24VDC | 48VDC | 40A | 19” 2U (482*240*88) |
| #5 | 24VDC | 48VDC | 50A | 19” 2U (482*240*88) |
| [24VDC to 110VDC] Series | ||||
| #6 | 24VDC | 110VDC | 5A | 19” 2U (482*240*88) |
| #7 | 24VDC | 110VDC | 10A | 19” 2U (482*240*88) |
| #8 | 24VDC | 110VDC | 20A | 19” 2U (482*240*88) |
| [48VDC to 110VDC] Series (Model Featured) | ||||
| #20 | 48VDC | 110VDC | 5A | 19” 2U (482*240*88) |
| #21 | 48VDC | 110VDC | 10A | 19” 2U (482*240*88) |
| #22 | 48VDC | 110VDC | 20A | 19” 2U (482*240*88) |
| [220VDC to 48VDC] Series | ||||
| #57 | 220VDC | 48VDC | 10A | 19” 2U (482*240*88) |
| #58 | 220VDC | 48VDC | 20A | 19” 2U (482*240*88) |
| #61 | 220VDC | 48VDC | 50A | 19” 2U (482*240*88) |
4 MAIN PARAMETERS
| Technical Data | IPS-DTD48S11020 | Test Conditions |
|---|---|---|
| Input Voltage Range | (40~60)VDC | - |
| Input Current | 53A | - |
| Output Float Voltage | 110VDC | Factory Settings |
| Output Current | 20A | Limit 101%~105% |
| Load Regulation | ≤±0.5% | No load to full load |
| Efficiency | ≥83% | - |
| Peak - peak Noise Voltage | ≤100mV | 0~20MHz |
| Over-temperature protection | 95±5°C | Auto-recoverable |
| Working Temperature | -5°C ~ 45°C | - |
| Insulation Resistance | ≥20 MΩ | DC 1KV |
| Net Weight | 7.5 Kg | - |
| Dimension (L*H*D) | 482*88*240 MM | Rack-mounted |

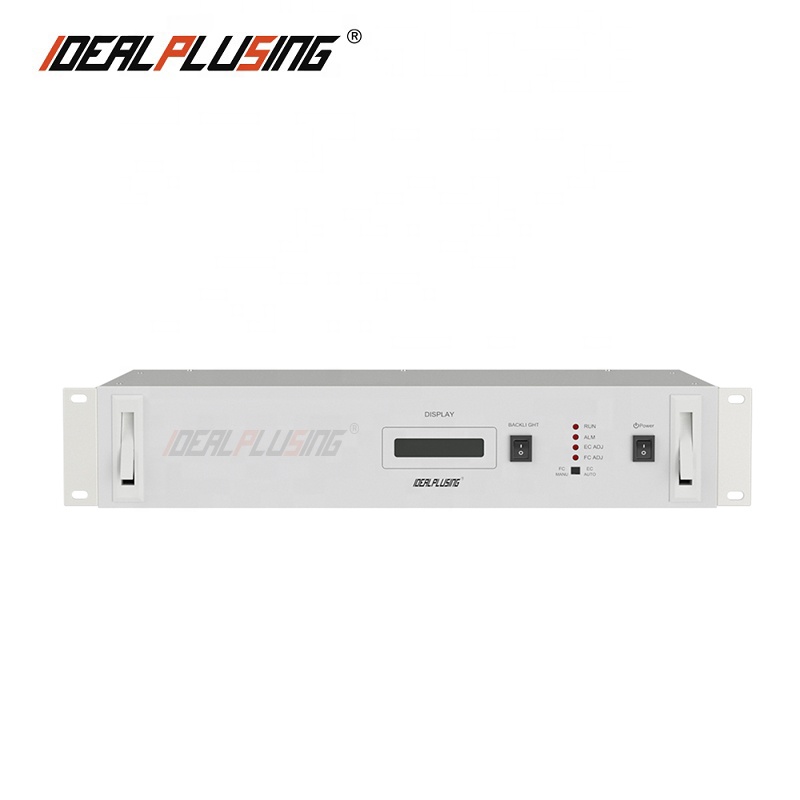

5 PRODUCT OVERVIEW
6 FACTORY DISPLAY
Frequently Asked Questions
What are the primary applications for this DC-DC converter?
It is specifically designed for communication equipment in power departments and electric power systems that require stable DC voltage conversion.
Does the device support parallel operation?
Yes, it supports N+1 backup. Even if one module fails, others continue to operate in parallel with automatic current sharing.
Is the input isolated from the output?
Absolutely. The input and output are completely isolated, ensuring safety and protecting sensitive downstream equipment.
What kind of protection does this converter offer?
The system includes comprehensive protection against output over-voltage, over-current, short circuits, and overall system overheating.
Can I install this in a standard server rack?
Yes, it features a standard 19-inch width and 2U height rack-mounted design, making it compatible with most industrial racks.
What happens if the unit overheats?
The unit features an over-temperature protection system that will close the radiator when the temperature reaches 95±5°C and will automatically recover once it cools down.
