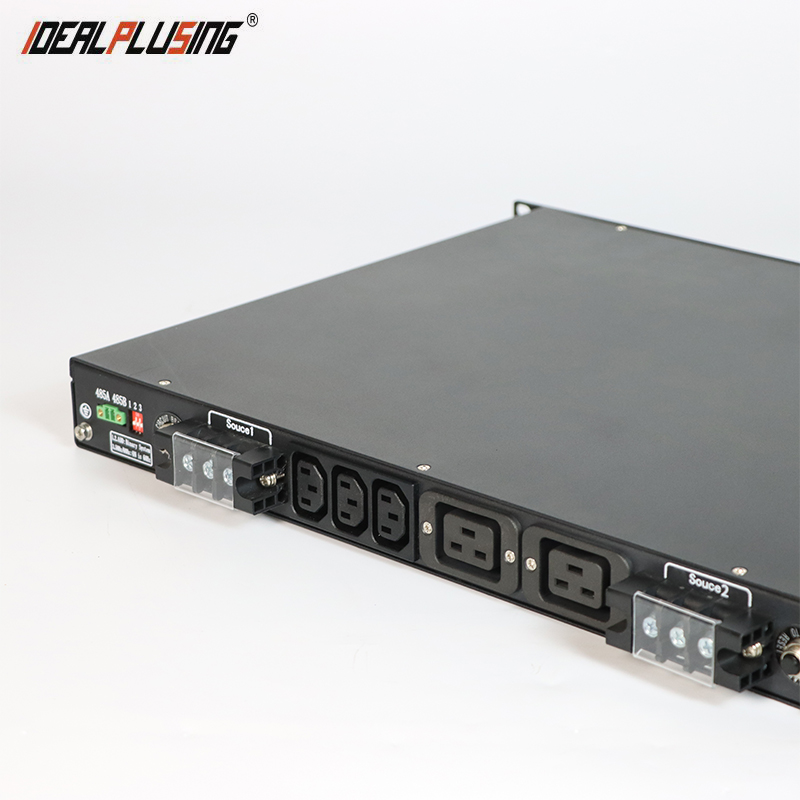

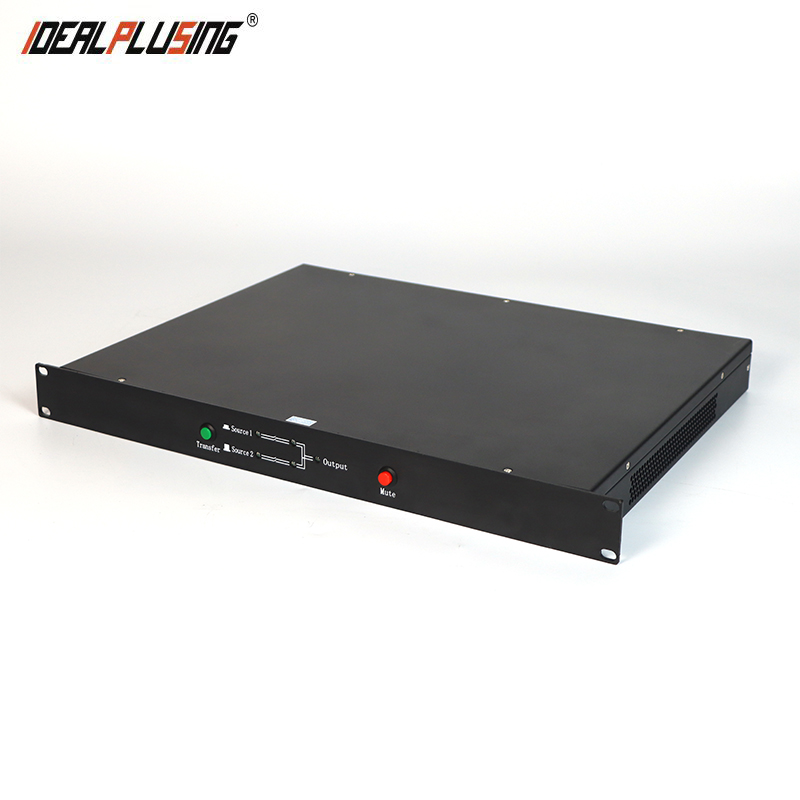

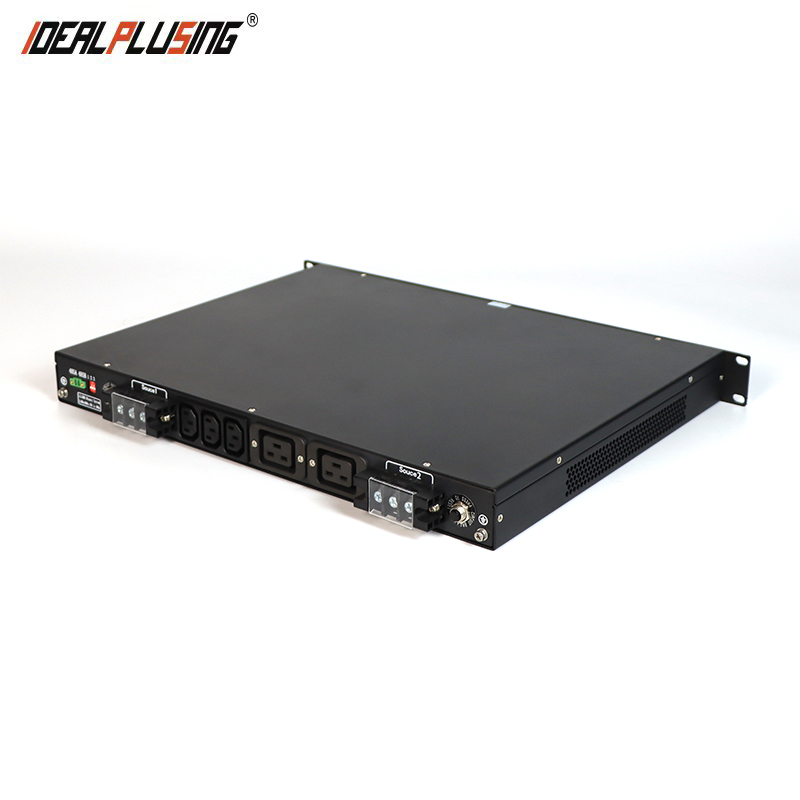

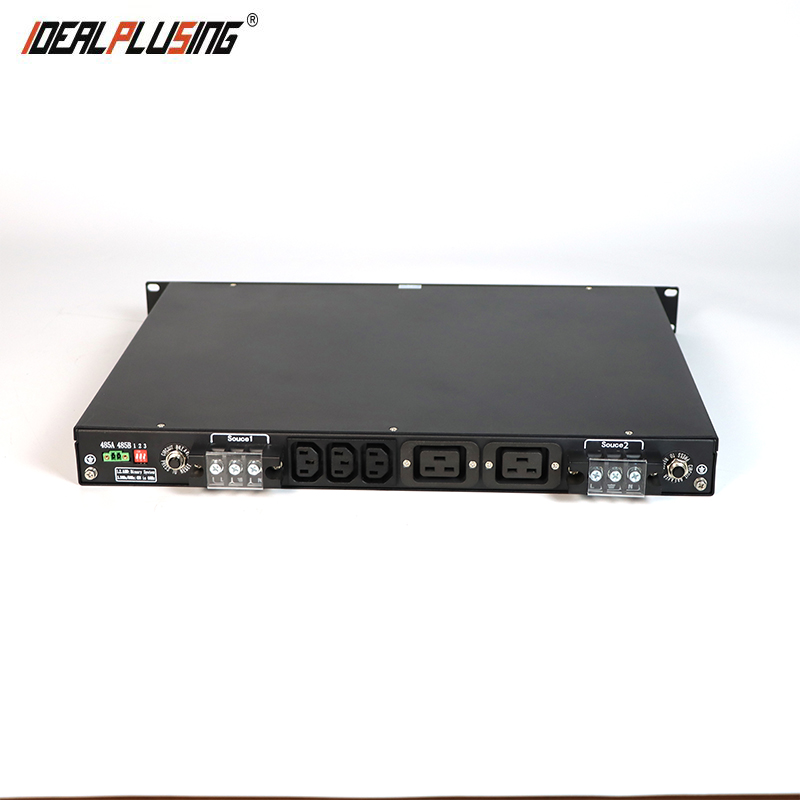

IDEALPLUSING 220V AC 16A Sts Static Transfer Switch STS Price Automatic Transfer Switch Testing
Product Description
🚀 Product Overview
Static Transfer Switch (STS)
STS is a dual-input AC converter switch. It ensures that one AC input is used to power the load while the other is disconnected. When the power supply becomes abnormal, the STS automatically switches to the alternative power source to ensure continuous supply to the load.
⭐ Product Characteristics
✅
Full digital control with strong anti-interference ability and fast operation speed.
⚡
Switching time ≤4ms, ensuring high reliability for sensitive loads.
💪
Strong overload capacity, capable of withstanding full load startup.
🛡️
Comprehensive protection: input undervoltage, overcurrent, and more.
📊

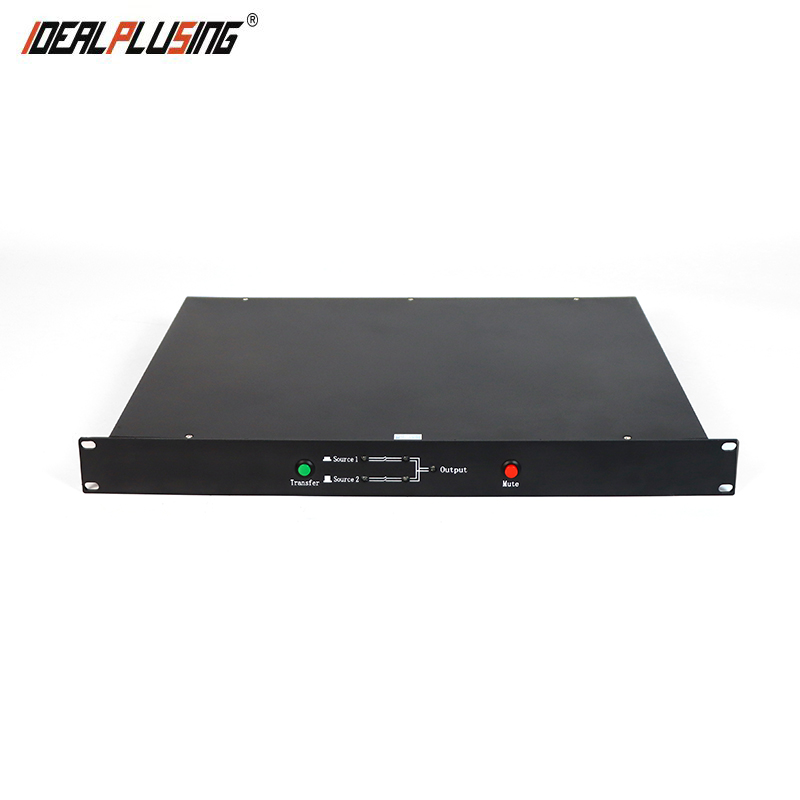

Front panel equipped with a display screen and indicator lights for status tracking.
🔄
Versions available for simultaneous live and neutral line switching.
🔥 Hot Selling Models
Model: IPS-DQ25J
📍 Input Voltage: 190~260VAC
📍 Frequency: 50/60HZ
📍 Rated Voltage: 220VAC
📍 Output Current: 25A
📍 Switching: Dual Type
📍 Display: LED
Model: IPS-STS32S
📍 Input Voltage: 190~260VAC
📍 Frequency: 50/60HZ
📍 Rated Voltage: 220VAC
📍 Output Current: 32A
📍 Switching: Single Type
📍 Display: LED
Model: IPS-STS080SM
📍 Input Voltage: 190~260VAC
📍 Frequency: 50/60HZ
📍 Rated Voltage: 220VAC
📍 Output Current: 80A
📍 Switching: Single Type
📍 Display: LED+LCD
⚙️ Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Core Info | Model | IPS-DQ16J / Series |
| Core Info | Switching Time | ≤4ms |
| Input | Rated Voltage | 220VAC |
| Voltage Range | 190～260VAC | |
| Rated Frequency | 50/60HZ | |
| Power Factor | 1 | |
| Environment | Noise (1m) | ≤55dB |
| Ambient Temp | -25～50℃ | |
| Protection Level | IP20 | |
| Protection | Functions | Under/Over voltage, Overload, Over temperature, Short circuit |
📷 Product Details
📋 Model Selection List
| Model Type | Model Name | Current | Voltage |
|---|---|---|---|
| Relay Version | IPS-DQ16J | 16A | 190~260VAC |
| IPS-DQ25J | 25A | 190~260VAC | |
| IPS-DQ32J | 32A | 190~260VAC | |
| Thyristor Board | IPS-STS16S/D | 16A | 190~260VAC |
| IPS-STS32S/D | 32A | 190~260VAC | |
| IPS-STS45S/D | 45A | 190~260VAC | |
| IPS-STS080SM/DM | 80A | 190~260VAC | |
| IPS-STS125SM/DM | 125A | 190~260VAC |
🏭 Production & Feedback
❓ Frequently Asked Questions
🔹 1. What is the main function of the Static Transfer Switch (STS)?
The STS is a dual-input switch that automatically transfers power to a secondary source if the primary source fails, ensuring continuous power to the load.
🔹 2. How fast is the switching time?
The switching time is ≤4ms, which is fast enough to ensure that most sensitive electronic equipment continues to operate without interruption.
🔹 3. What safety protections are built into the device?
It includes protection against input undervoltage, overvoltage, output overload, over temperature, and short circuiting.
🔹 4. Can the device handle high-demand startups?
Yes, the STS has a strong overload capacity and is designed to withstand full load startup conditions.
🔹 5. What are the environmental limits for operation?
It operates reliably in temperatures ranging from -25℃ to 50℃ and humidity levels up to 90% without condensation.
🔹 6. Is there a version that switches both live and neutral lines?
Yes, we provide STS versions where both the live and neutral lines are switched simultaneously while maintaining the same performance and structure.
