IPS-DTD48S11010 High Quality 48v to 110v 10a 1100w Dc Output Power Supply
Product Description
IPS-DTD48S11010 High Quality 48V to 110V 10A 1100W DC Output Power Supply
1 INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
This converter adopts high-frequency switching technology and offers numerous advantages, including high accuracy voltage stabilizing, low output noise, strong capacity for resisting disturbance, small volume, lightweight, and an aesthetically pleasing external design. It is the ideal configuration for supplying power to communication equipment of different voltage grades.
2 FEATURES
● Advanced dual-tube forward switch technology with module isolation.
● N+1 backup support; modules achieve automatic current sharing.
● Compatible with 220VDC, 110VDC, and 24VDC power systems.
● Header module with clear 3.5-digit display for current and voltage.
● Standard 19-inch 2U rack-mounted design for easy installation.
● Wide operating temperature range: -10°C to +50°C at full power.
● Small size, light weight, and easy after-sales maintenance.
● Complete electrical isolation between input and output.
● Stable and reliable circuit topology with advanced current control.
● High-quality imported key components for long-term durability.
● Comprehensive protection: over-voltage, over-current, short circuit, and overheating.
● Optional parallel flow capability for increased capacity.
3 MAIN PARAMETERS
| Technical Data-IPS-DTD | 48S1105 | 48S11010 | 48S11020 | Test Conditions | |
|---|---|---|---|---|---|
| Input Voltage Range(VDC) | 48VDC(40-60VDC) | - | |||
| Module Power Surge (A) | DC≤2A | Output Full Load | |||
| Output Float Voltage (V) | 110VDC | Factory Settings | |||
| Output Current (A) | 5A | 10A | 20A | Limit 101%~105% | |
| Load Regulation | ≤±0.5% | No load to full load | |||
| Power Regulation | ≤±0.2% | - | |||
| Dynamic Response | 100us Max | 20%~100% Load | |||
| Phone Scale Noise (mV) | ≤2 | Noise meter | |||
| Peak-peak Noise Voltage (mV) | ≤100 | 0~20MHz | |||
| Efficiency | ≥83% | - | |||
| Temperature Coefficient | 0.02% | - | |||
| Over-temperature Protection | 95±5°C | Auto-recoverable | |||
| Working Humidity | 5%~95% | Non-condensing | |||
| Dimension Rack-mounted (mm) | 482*88*240 | L * H * D | |||

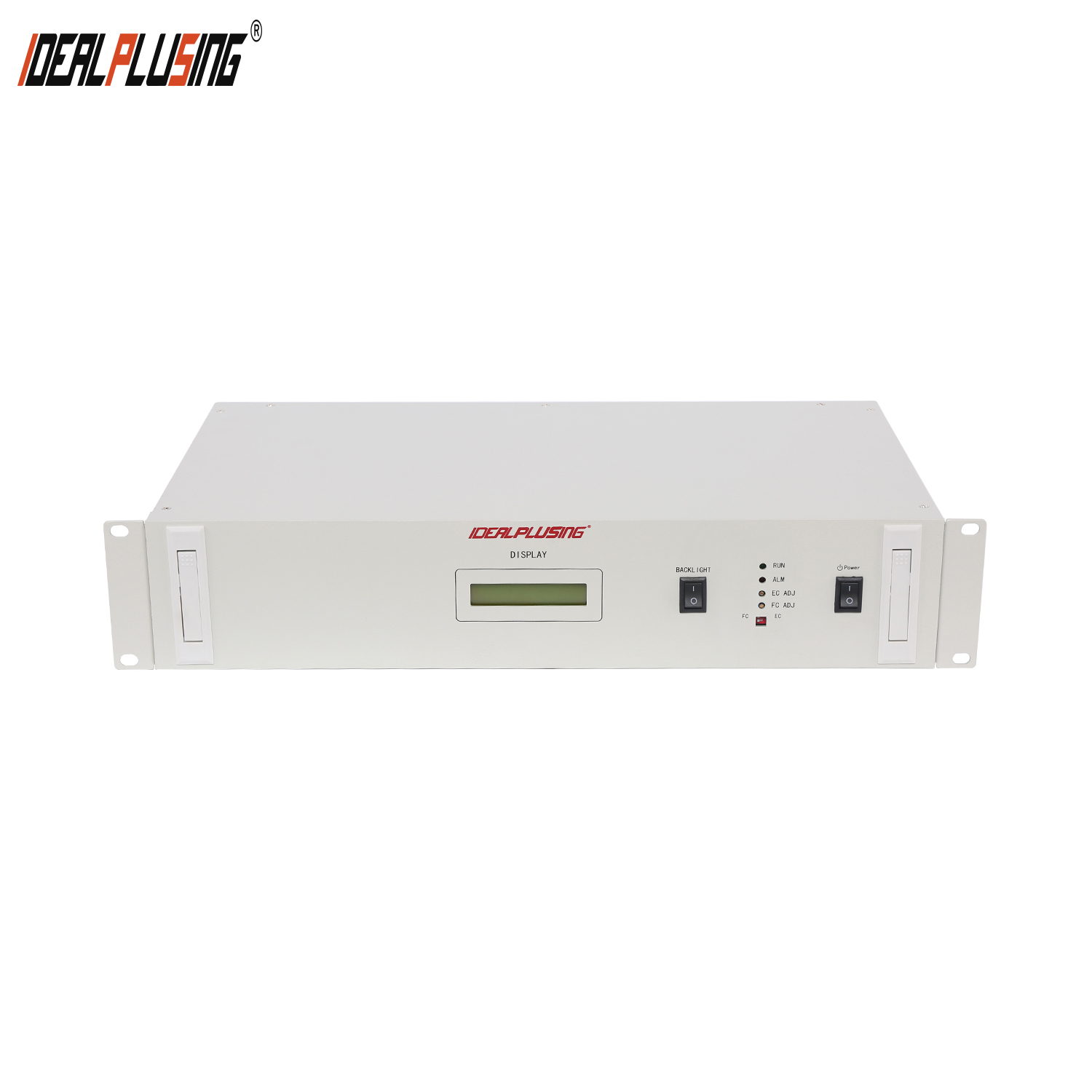

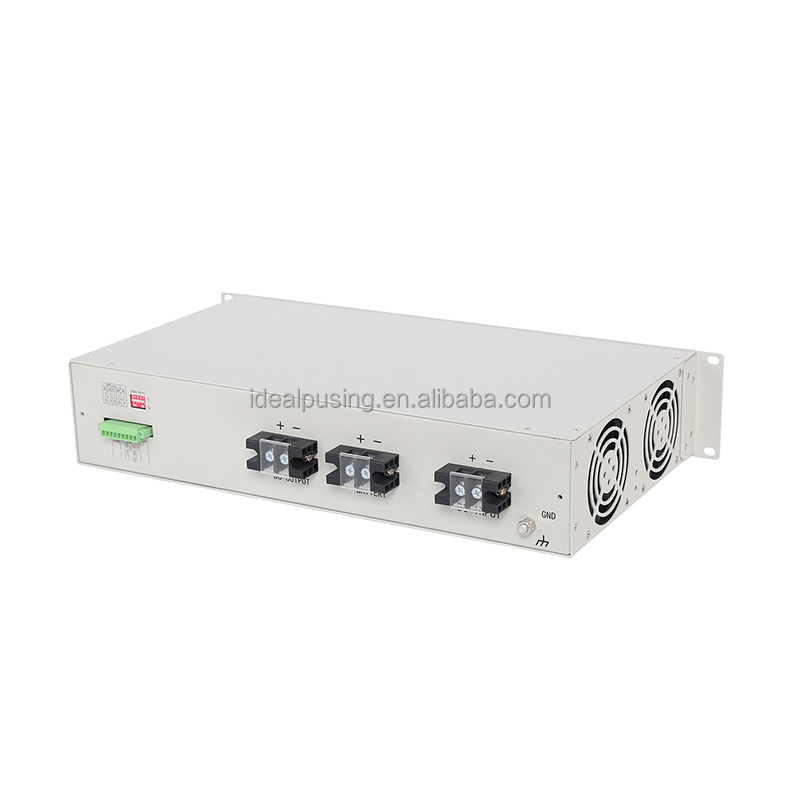

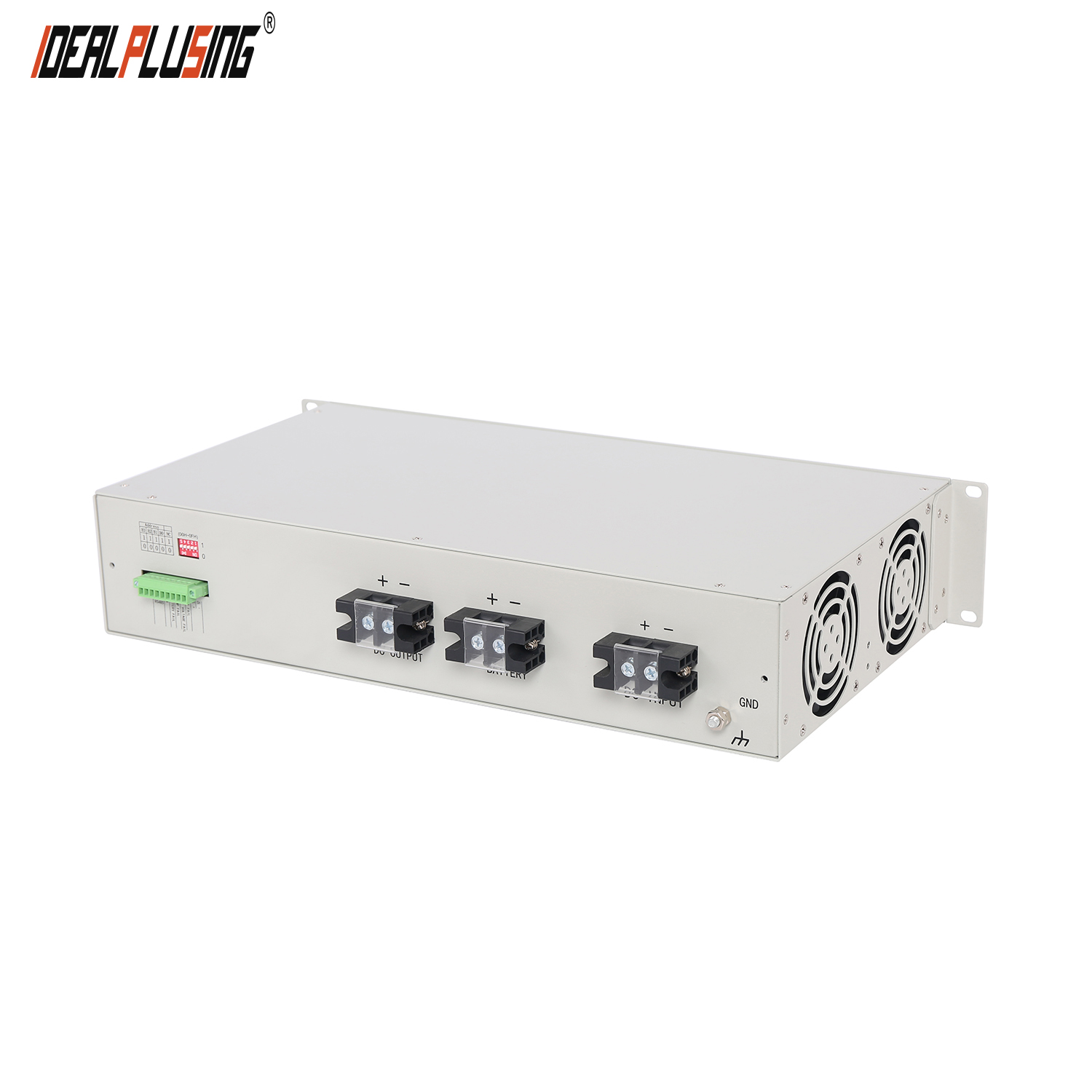

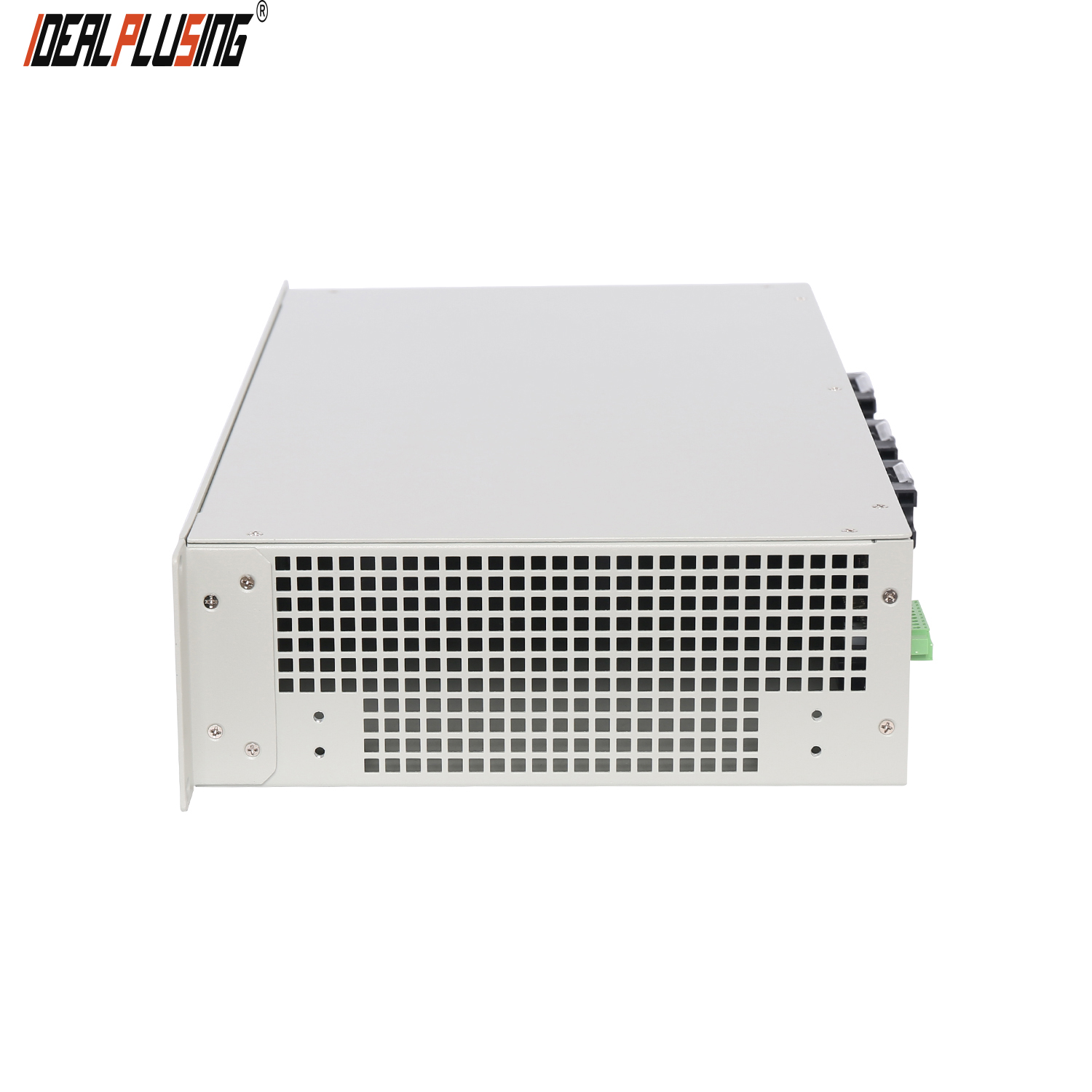

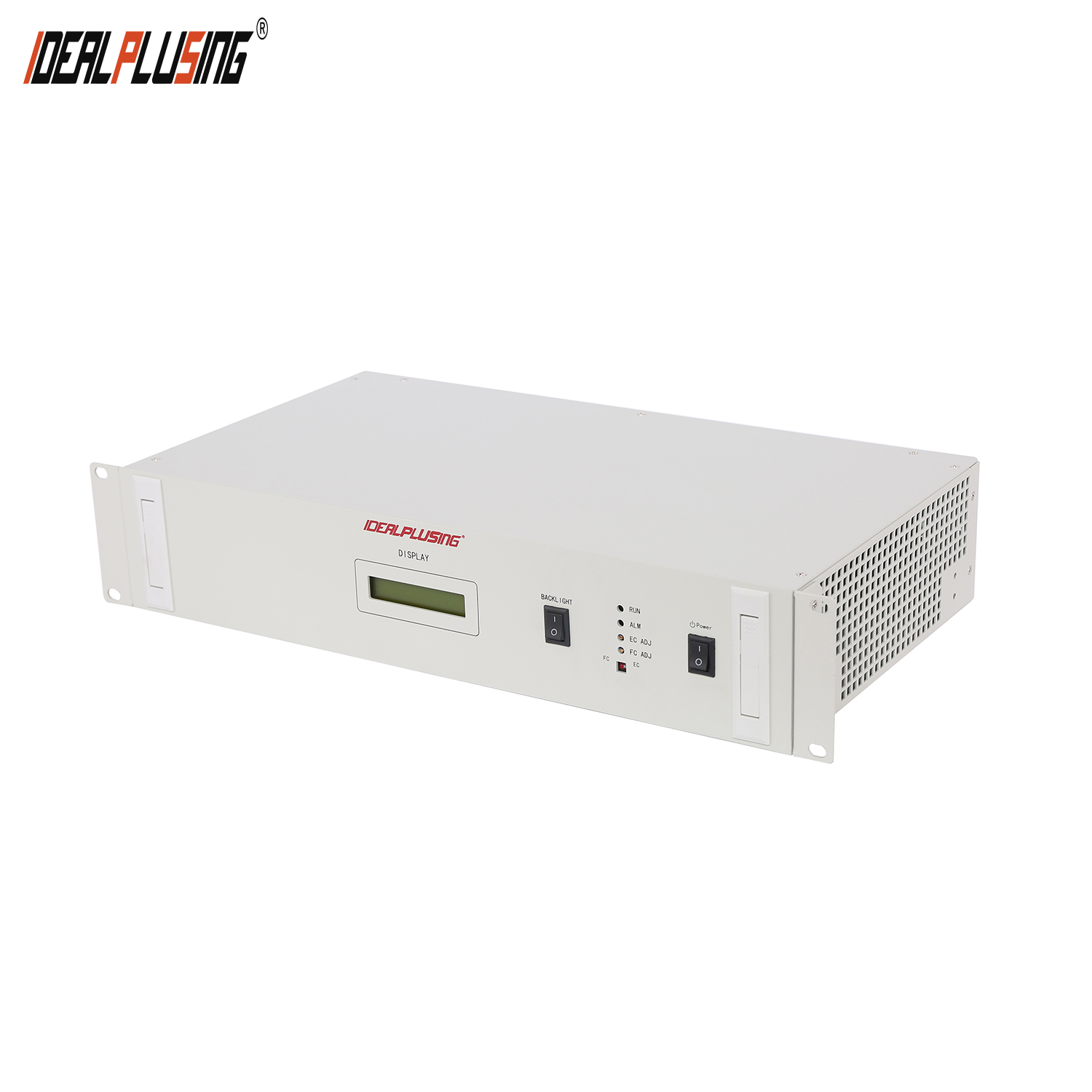

4 REFERENCE PICTURES
Note: Battery port availability depends on specific order configuration.
5 BASIC CONNECTION
1) Single Use Connection:
2) Multiple Parallel Connection:
? FREQUENTLY ASKED QUESTIONS
What is the main application for this DC-DC converter?
This converter is primarily designed for communication and electric power departments to provide stabilized power for various communication equipment.
Does the device support parallel operation?
Yes, the module supports N+1 backup and multiple parallel connections with automatic current sharing among modules.
How does the device handle overheating?
It includes an integrated over-temperature protection system. If the radiator temperature exceeds 95±5°C, the module will automatically shut down and can recover once cooled.
What information is displayed on the front panel?
The unit features a 3.5-digit table display that provides real-time monitoring of both output current and voltage.
Is the input isolated from the output?
Yes, the input and output are completely isolated, ensuring safe and reliable operation for sensitive electronic equipment.
What is the installation standard for this power supply?
The power supply follows a standard 19-inch rack-mounted design with a 2U height, making it compatible with most industrial server racks.
