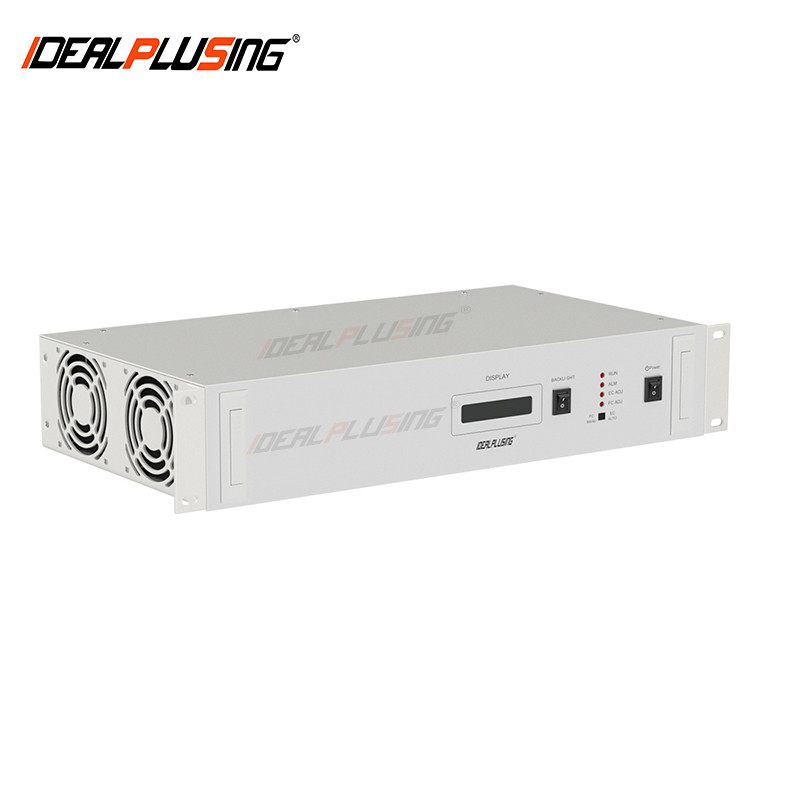

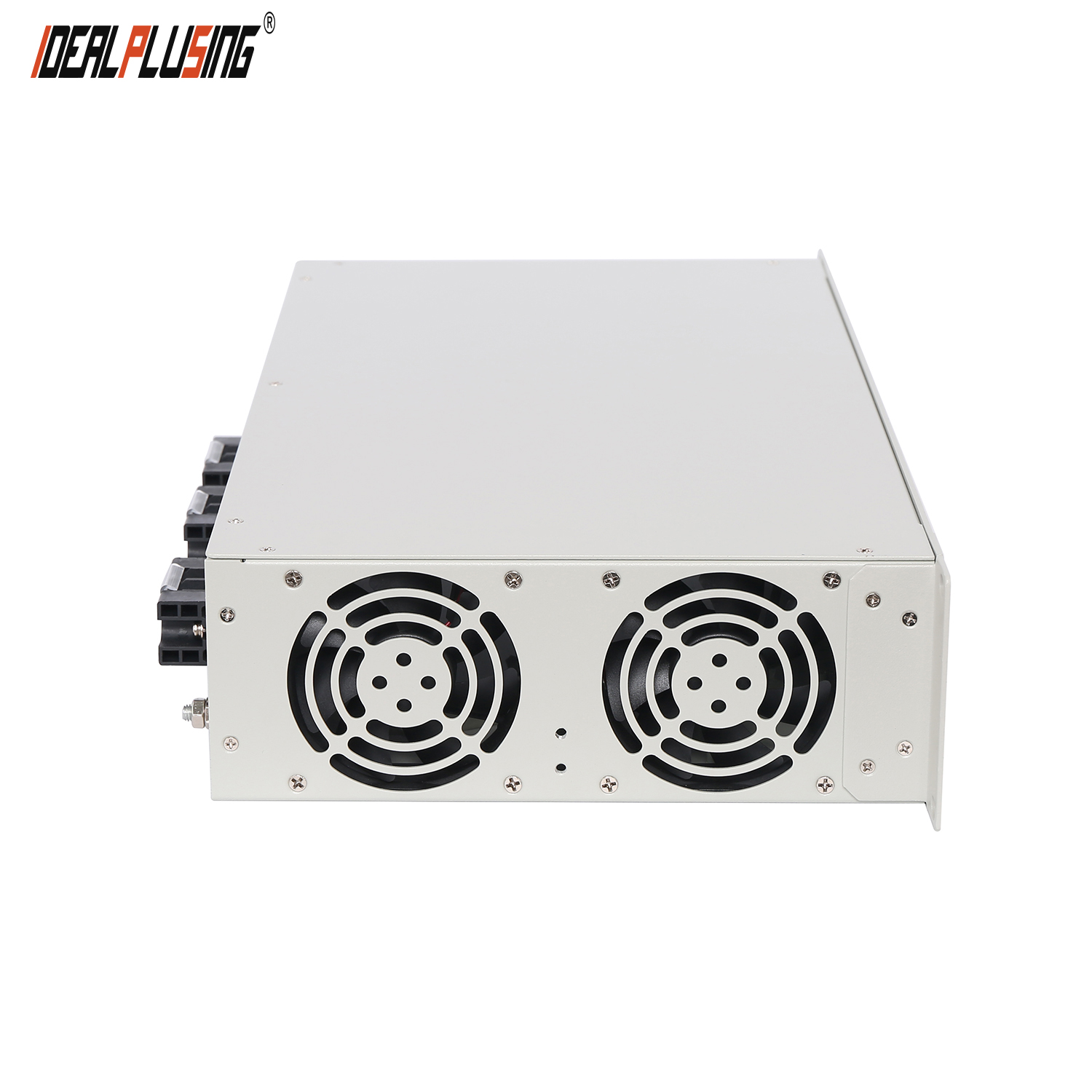

IPS-DTD48S2430 Factory Price 48v to 24v 30 Amp 720w Dc Transformer
Product Description
IPS-DTD48S2430 Factory Price 48V to 24V 30 Amp 720W DC Transformer
INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
FEATURES
- The use of advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules.
- In the case of N + 1 backup, even if one or several modules fail, it does not affect the parallel operation of other modules, and between modules can achieve automatic current sharing.
- Meet the 220VDC, 110VDC, 24VDC power supply system requirements. Input voltage range is wide, basically applicable to a variety of power grid system power supply requirements, compatibility is better.

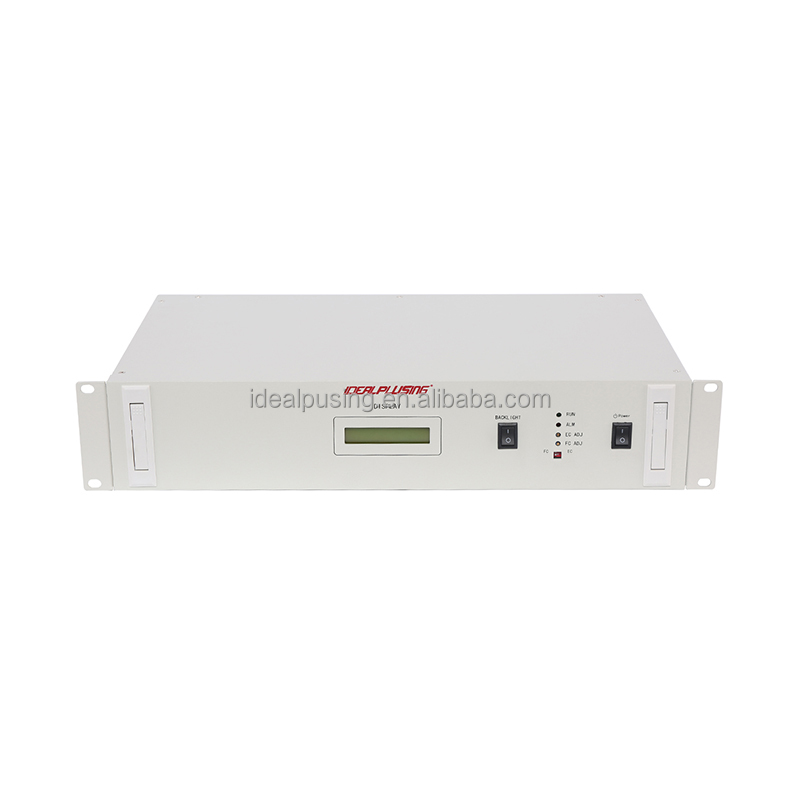

- Header module with 3 and a half of the table display, display the output current and voltage, simple and practical.

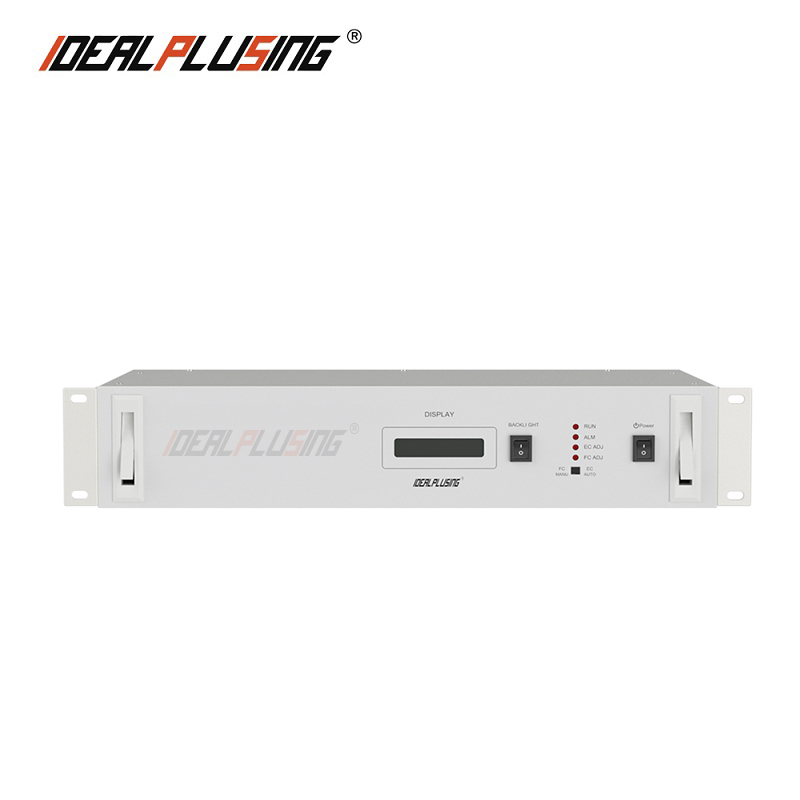

- Module with a width of 19 inches, the height of 2U standard rack-mounted design, the user installed.
- Wide operating temperature range. -10℃ ~ +50℃ temperature range can be full output power.
- Small size, light weight, easy after-sales maintenance.
- Input and output completely isolated, safe and reliable.
- Advanced current control mode and stable and reliable circuit topology.
- All the key components used in all imported devices.
- Protection function comprehensive, the output over-voltage, over-current, short circuit, the whole overheating protection.
- Can be more than a parallel flow and use. (Optional)
MAIN PARAMETER
| Technical Data (IPS-DTD48S24) | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
|---|---|---|---|---|---|---|---|
| Input Voltage Range (VDC) | 48V (40~60VDC) | ||||||
| Module Power Surge (A) | DC ≤ 2A | Output Full Load | |||||
| Output Float Voltage (V) | 24VDC | Factory Settings | |||||
| Output Current (A) | 10A | 20A | 30A | 40A | 50A | Output Limit 101%~105% | |
| Load Regulation | ≤ ±0.5% | Output without load to full load | |||||
| Power Regulation | ≤ ±0.2% | ||||||
| Dynamic Response | 100us Max | 20%~100% Load | |||||
| Phone Scale Noise Voltage (mV) | ≤ 2 | Noise meter | |||||
| Peak - peak Noise Voltage (mV) | ≤ 100 | 0~20MHz | |||||
| Efficiency | ≥ 83% | ||||||
| Current Deviation | ≤ ±5% | ||||||
| Temperature Coefficient (℃) | 0.02% | ||||||
| Over-temperature protection (℃) | 95 ± 5 | Radiator will close when temperature is over 95℃, can recover. | |||||
| Working Temperature (℃) | -5~45 | ||||||
| Storage Temperature (℃) | -10~85 | ||||||
| Working Humidity | 5%~95% | Non-condensing | |||||
| Insulation Strength | Leakage Current < 30mA | 500Vdc/1min | |||||
| Insulation Resistance (MΩ) | ≥ 20 | DC 1KV | |||||
| MTBF (hrs.) | 100000 | ||||||
| Net Weight (Kg) | 7.5 | ||||||
| Gross Weight (Kg) | 9.5 | ||||||
| Dimension | Rack-mounted (mm) (L * H * D) | 482*88*240(MM) | |||||
| Dimension | Package | 613*155*413(MM) | |||||

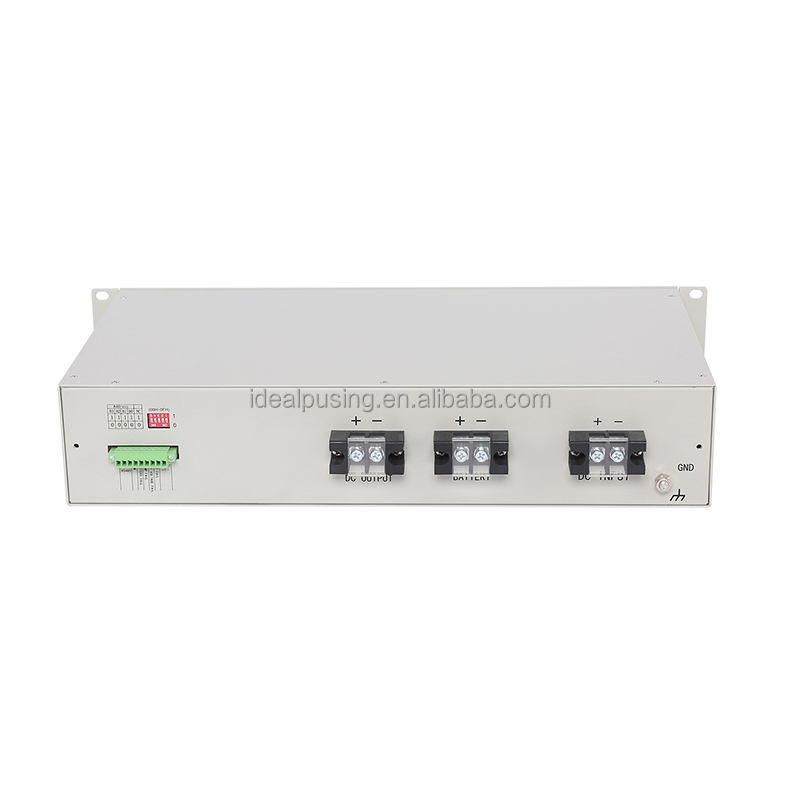

REFERENCE PICTURE (WITH BATTERY PORT)
BASIC CONNECTION
1) Single Use Connection
2) Multiple Parallel Connection
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range for the 48V to 24V DC transformer?
A: The standard input voltage range is 48VDC, with an acceptable working range between 40VDC and 60VDC.
Q2: Can multiple modules be connected in parallel for higher output?
A: Yes. The system supports multiple parallel connections with N + 1 backup. Even if one or more modules fail, it will not affect the parallel operation of the remaining units, achieving automatic current sharing.
Q3: Are the input and output circuits electrically isolated?
A: Yes, the input and output circuits are completely isolated to guarantee safe and reliable operation for communication and electric power equipment.
Q4: What protective features are built into this DC-DC converter?
A: The converter features comprehensive protection systems, including output over-voltage, over-current, short circuit, and automatic over-temperature protection.
Q5: How does the over-temperature protection work?
A: When the radiator's temperature exceeds 95℃ (±5℃), the module will automatically close to prevent damage. It will automatically recover normal operation once the temperature drops to a safe level.
Q6: What are the standard dimensions and mounting options?
A: The converter features a standard 19-inch rack-mounted design with a height of 2U, measuring 482mm * 88mm * 240mm for easy installation in standard server racks.
