IPS-RT11020 Chinese Factory Sales 220vac to 110vdc 20A Rectifier for Some Kinds of Electronic Equipment
Product Description
📌 INTRODUCTION
1. This series of high-frequency switching power supply is designed for mobile communications, program-controlled switches, access network equipment, telecommunications equipment, servers, local area network, and communications room base stations.
2. Using advanced dual-tube forward switch technology, the design features isolation between modules to prevent interaction and ensure stable performance.
3. Equipped with multiple safety features including AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short circuit protection.
4. The module uses a standard 19-inch rack-mount design with a height of 1U. It features advanced electromagnetic compatibility design and meets industrial standards for communication power supply equipment (YD/T983).
⚙️ PRODUCT SPECIFICATIONS
Application:
Telecommunications equipment, switches, servers, Ethernet, LAN, MAN, communications base stations.
Telecommunications equipment, switches, servers, Ethernet, LAN, MAN, communications base stations.
Nominal Voltage:
+110VDC or -110VDC
+110VDC or -110VDC
Rated Current:
5A to 20A
5A to 20A
Outer Structure:
Standard Rack type (1U/2U)
Standard Rack type (1U/2U)
⭐ KEY FEATURES
- Advanced dual-tube forward switch technology for high efficiency.
- Comprehensive protection: Over-voltage, over-current, and short-circuit.
- Compatible with 220V AC and 110V AC power supply system standards.
- Wide input voltage range, applicable to various power grid requirements.
- Module includes a 3.5-digit table display for real-time output current and voltage monitoring.
- Standard rack-mounted design (19 inches width, 1U/2U height).
- Wide operating temperature range: -25℃ to +55℃ with full output power.
- Compact size, lightweight, and easy maintenance.
📊 TECHNICAL DATA SHEET
| Model | IPS-RT1105 | IPS-RT11010 | IPS-RT11020 |
|---|---|---|---|
| AC Input | Single-phase three-wire system (L/N/PE) | ||
| Input Voltage | 220VAC±20% or 110VAC±20% (Customizable) | ||
| Effectiveness | ≥88% | ||
| Output Power | 550W | 1100W | 2200W |
| Output Voltage | 110VDC | ||
| Rated Output Current | 5A | 10A | 20A |
| Peak Noise Voltage | ≤150mV (20MHz bandwidth) | ||
| Isolation Strength | Input to Output: 1500VDC; Input to Chassis: 1500VDC | ||
| Reliability | MTBF ≥ 100,000 hours | ||
| Dimensions (mm) | L482 * W240 * H88 | ||

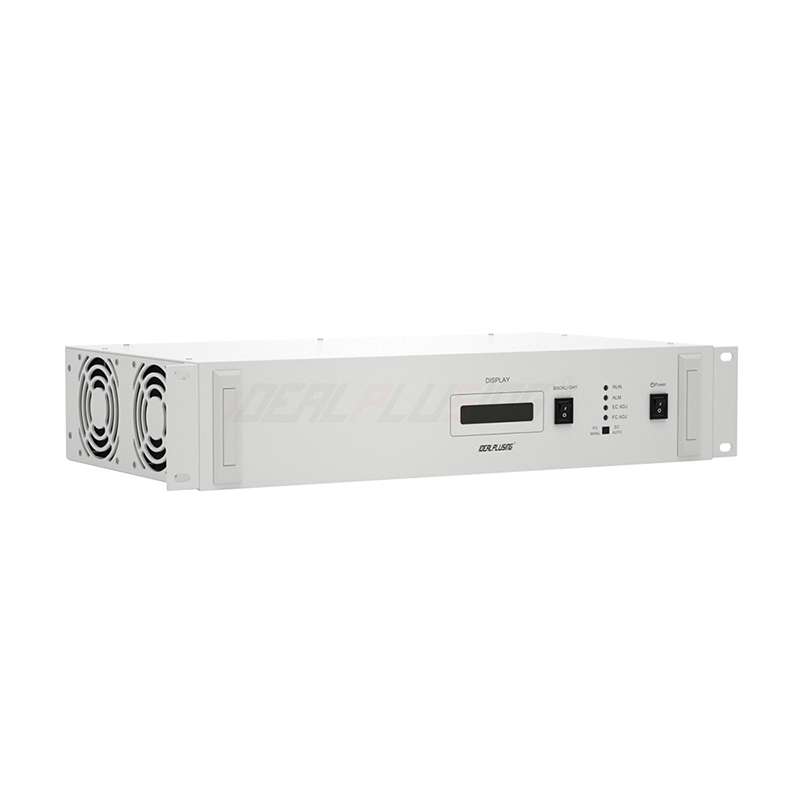

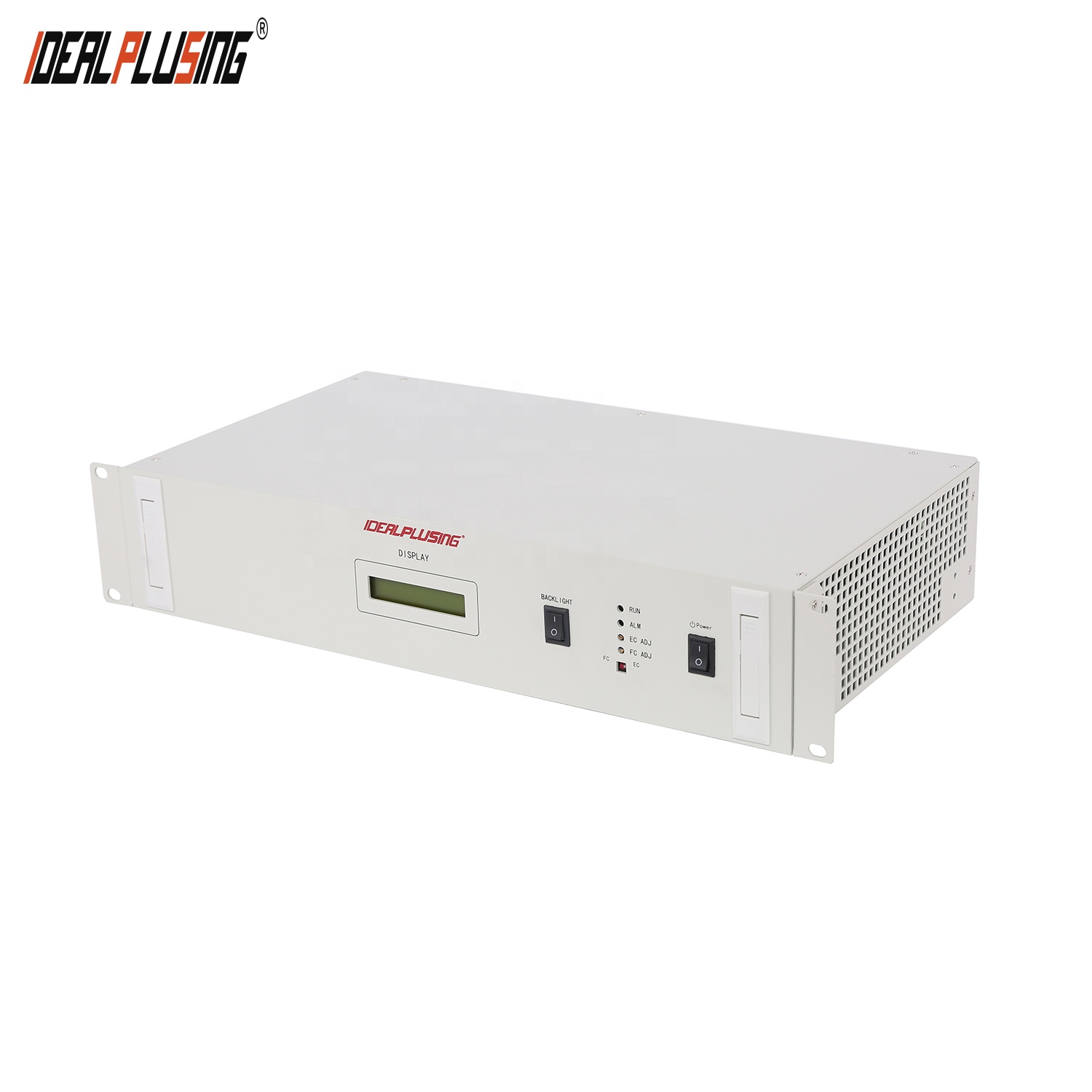

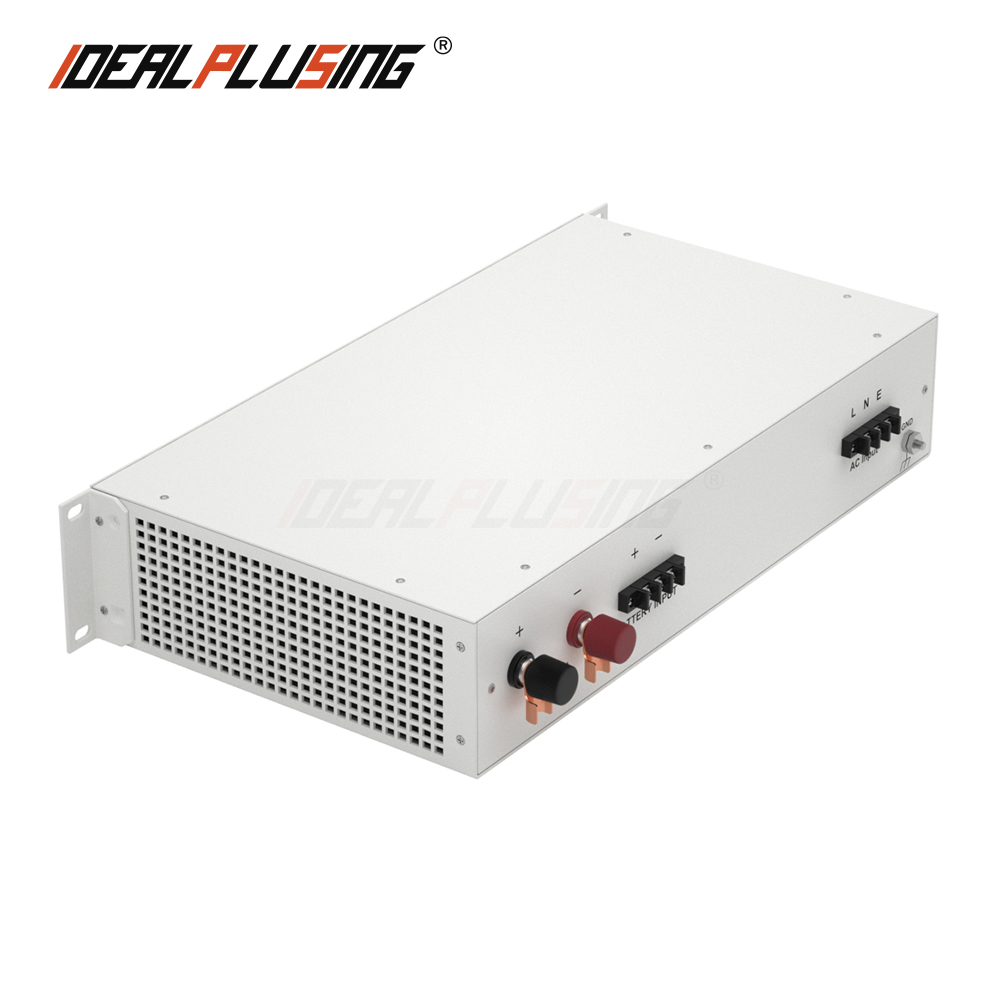

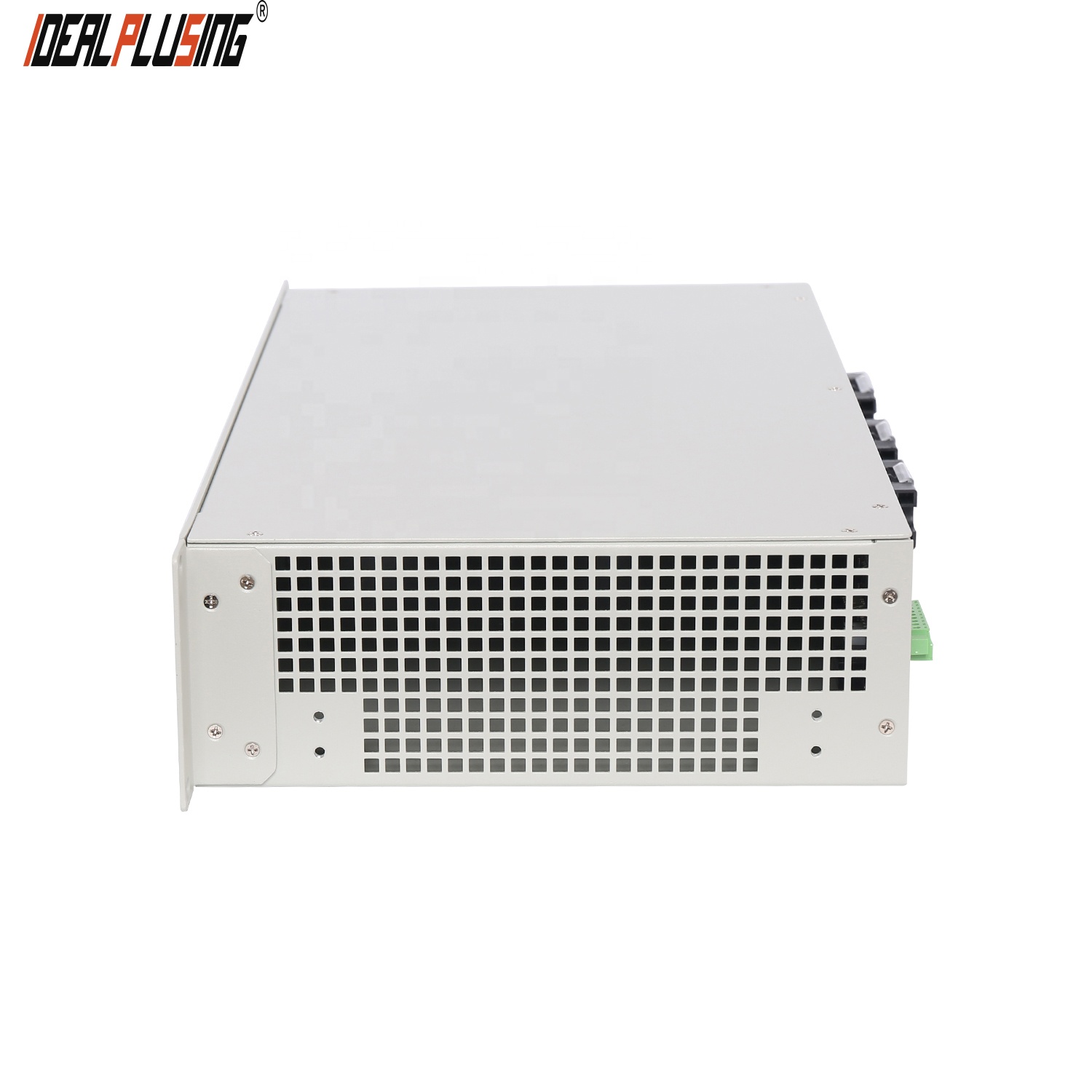

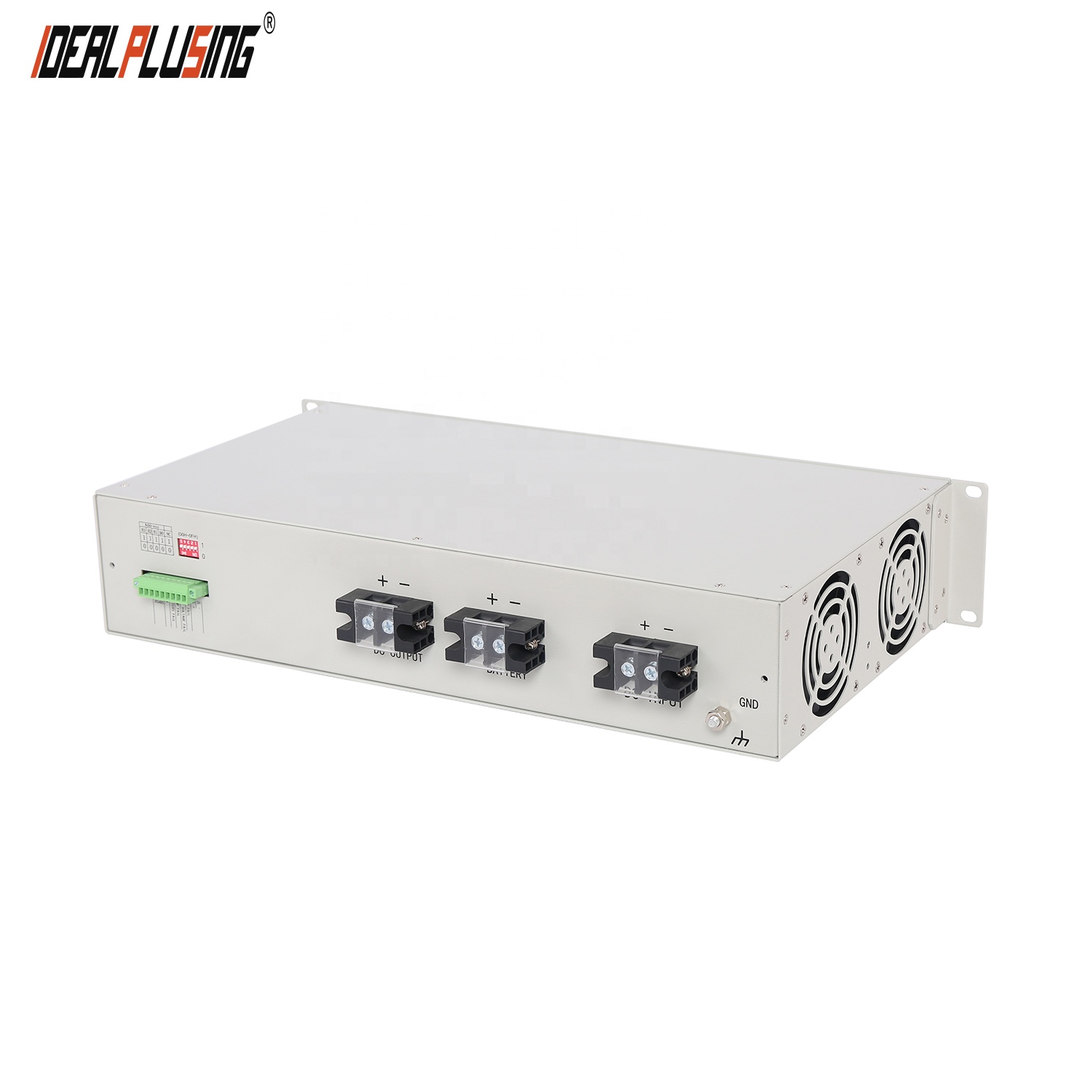

🖼️ REFERENCE PICTURES
❓ FREQUENTLY ASKED QUESTIONS
What is the input voltage compatibility of this rectifier?
The IPS-RT110 series supports a wide input range, specifically designed for 220VAC±20% systems, with customization options available for 110VAC±20% power grids.
What safety protections are built into the device?
The unit includes multiple protection layers: AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short-circuit protection.
Can this power supply be mounted in a standard server rack?
Yes, it features a standard 19-inch rack-mount design with a 1U or 2U height, making it perfectly compatible with industrial communication racks.
What is the operating temperature range?
The rectifier operates efficiently within a temperature range of -25℃ to +55℃, maintaining full output power throughout this range.
How is the output monitored?
The front panel is equipped with a 3.5-digit display that provides clear, real-time readings of both the output voltage and current.
What is the reliability rating of this product?
This series has a Mean Time Between Failures (MTBF) of ≥100,000 hours, ensuring long-term stable operation for critical infrastructure.
