IPS-RT11020 Factory Production High-quality RackMount 110vdc 20a Rectifier Battery Charger
Product Description
PRODUCT INTRODUCTION
🚀
IPS-RT110 series high-frequency switching power supply is designed for mobile communications, program-controlled switches, access network equipment, telecommunications equipment, servers, and base stations.
This series utilizes advanced dual-tube forward switch technology with modular isolation design to prevent interaction between components, ensuring high stability and performance.
Safety is prioritized with integrated AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short circuit protection.
The unit features a standard 19-inch rack-mount design with a height of 1U, meeting strict electromagnetic compatibility limits and measurement methods for industrial communication power supply.
PRODUCT SPECIFICATIONS
🔹 Application: Telecommunications / Servers / LAN / Ethernet
🔹 Working Mode: AC / DC
🔹 Nominal Voltage: +110VDC, -110VDC
🔹 Rated Current: 5A ~ 20A
🔹 Configuration: Single type (Standard Rack 2U)
🔹 Distribution: Terminal block (1 Load, 1 Battery interface)
KEY FEATURES
⚙️
Dual-tube Forward Switch Technology: Enhanced isolation between modules for superior reliability.
🛡️
Comprehensive Protection: Full safety suite including over-voltage and short-circuit protection.
🌍
Wide Input Range: Compatible with 220V AC and 110V AC power supply systems globally.
📊
Digital Display: Features a 3.5-digit table display for real-time monitoring of output current and voltage.
🌡️
Extreme Temperature Resilience: Full power output maintained within -25℃ to +55℃.
TECHNICAL PARAMETERS
| Technical Characteristics | IPS-RT1105 | IPS-RT11010 | IPS-RT11020 | |
|---|---|---|---|---|
| AC Input | Input System | Single-phase three-wire system (L/N/PE) | ||
| Input Voltage | 220VAC±20% or customize 110VAC±20% | |||
| Frequency Range | 50/60HZ (Fluctuation: 45Hz~66Hz) | |||
| DC Output | Output Power | 550W | 1100W | 2200W |
| Rated Current | 5A | 10A | 20A | |
| Accuracy | ≤±2V | |||
| Mechanical | Dimensions (mm) | L482 * W240 * H88 | ||
| Weight (Net/Gross) | 8.5KG / 11KG | |||

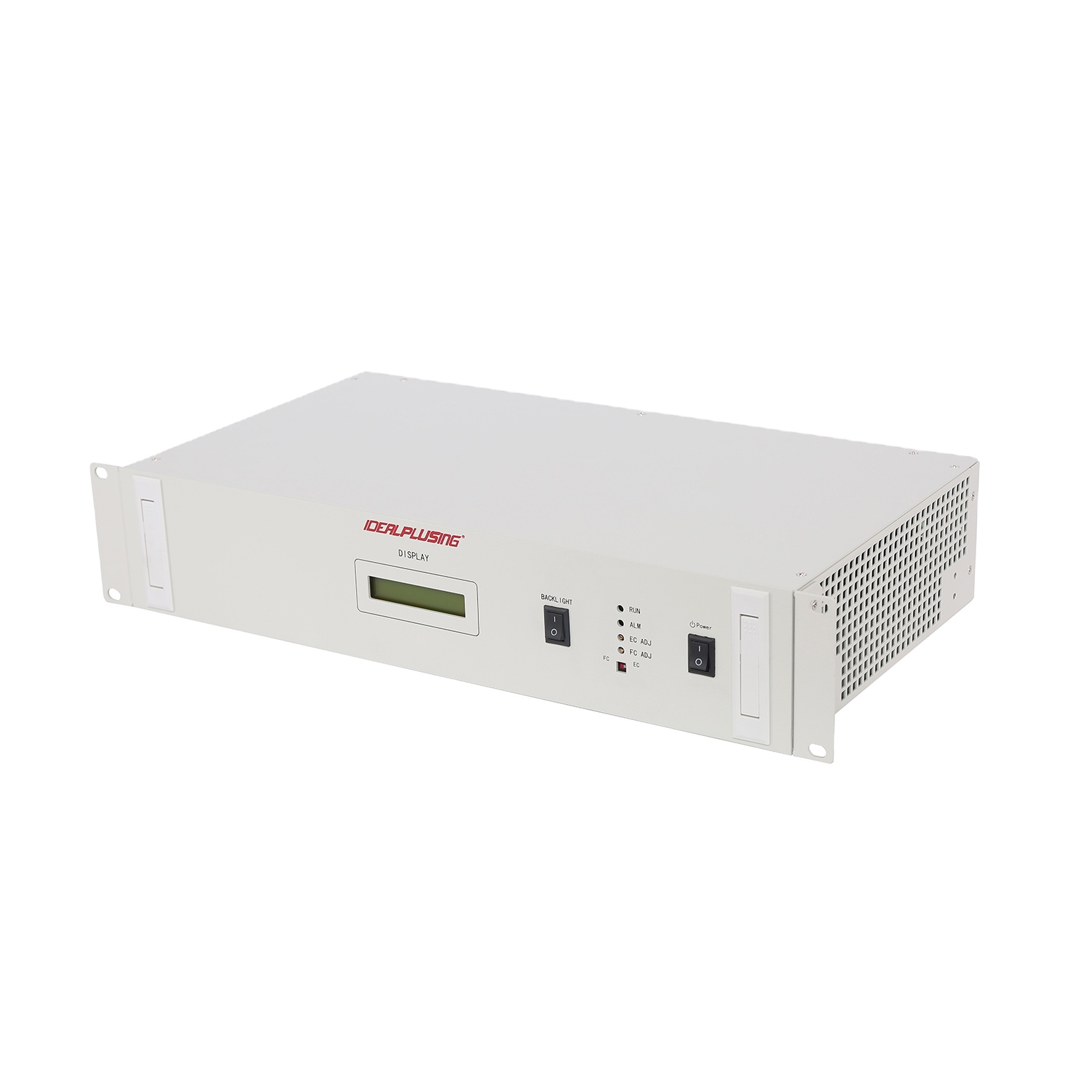

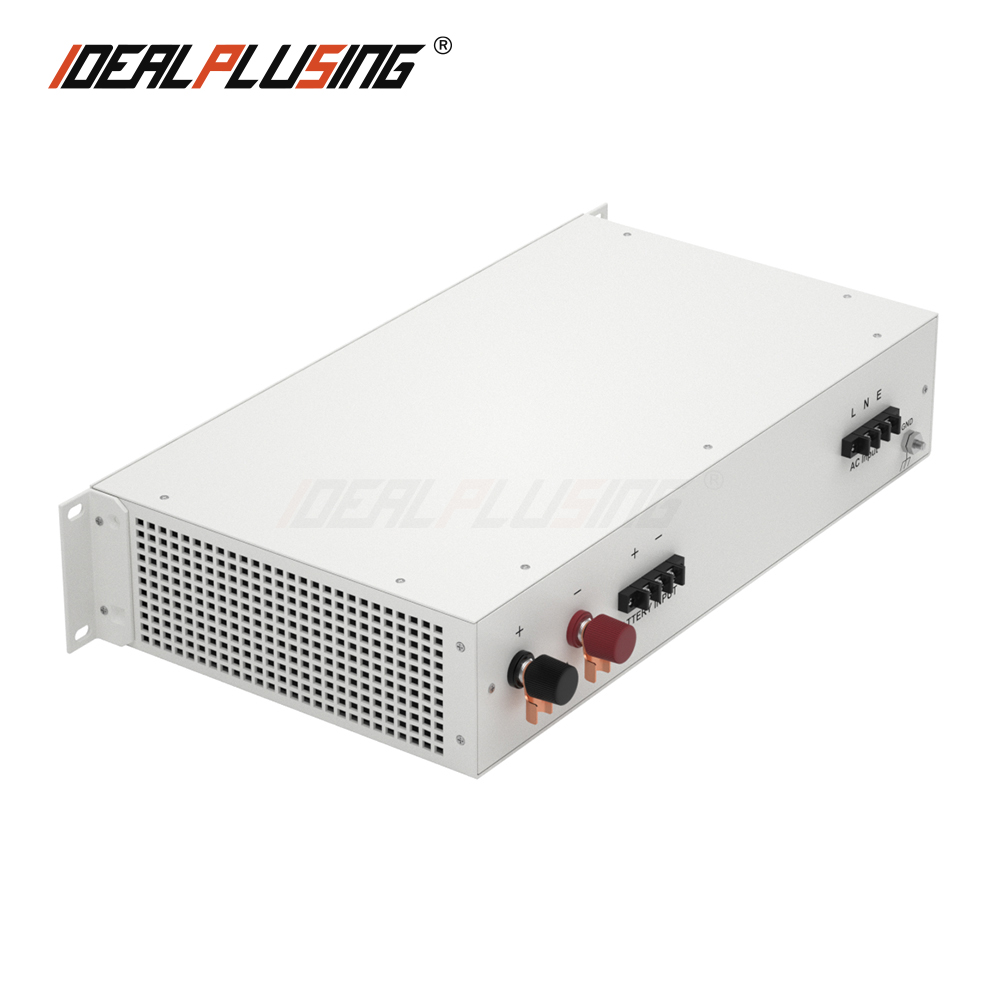

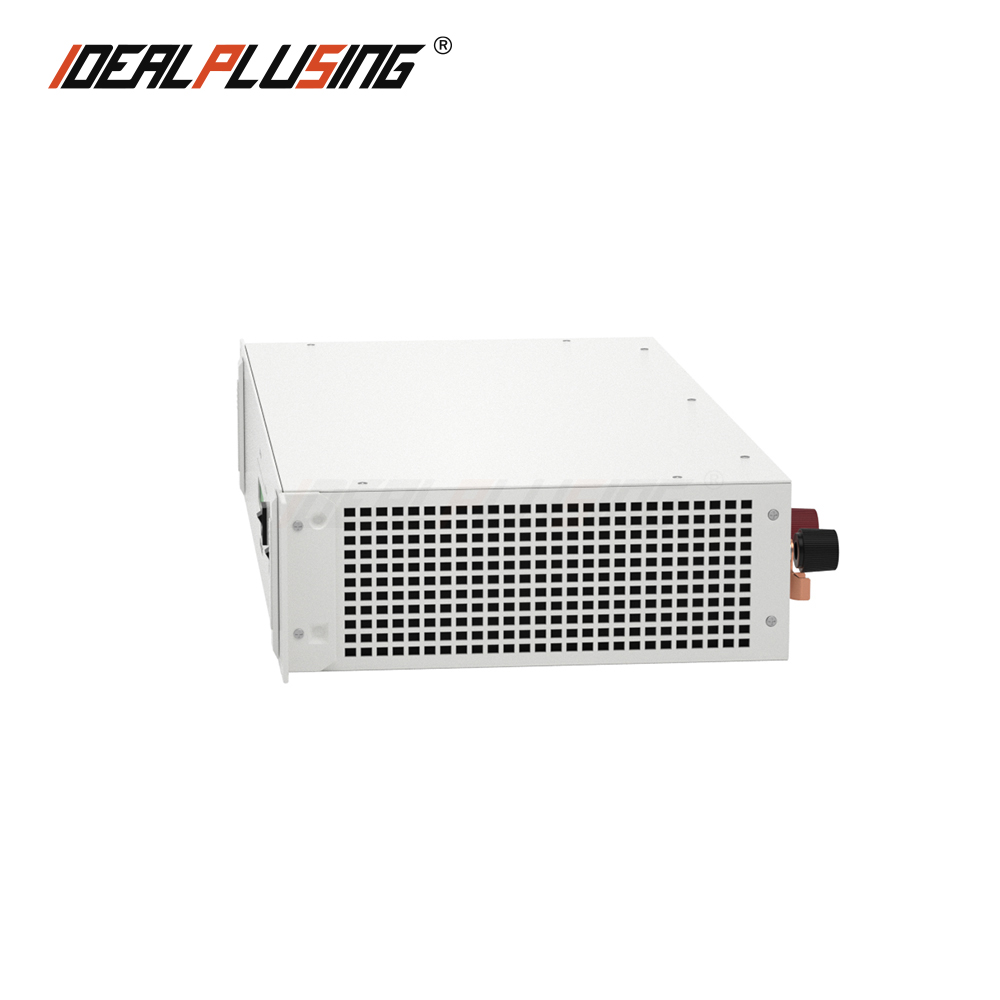

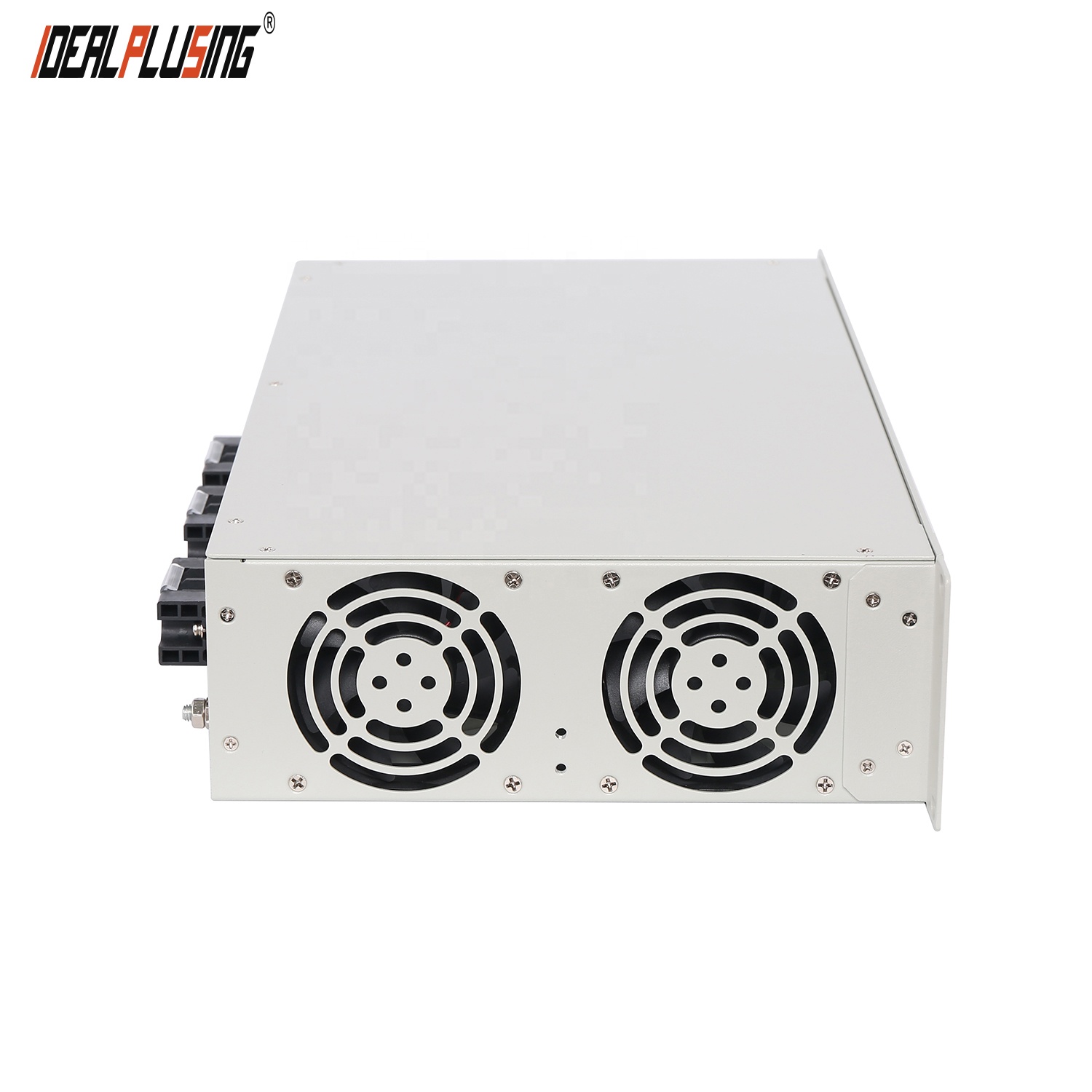

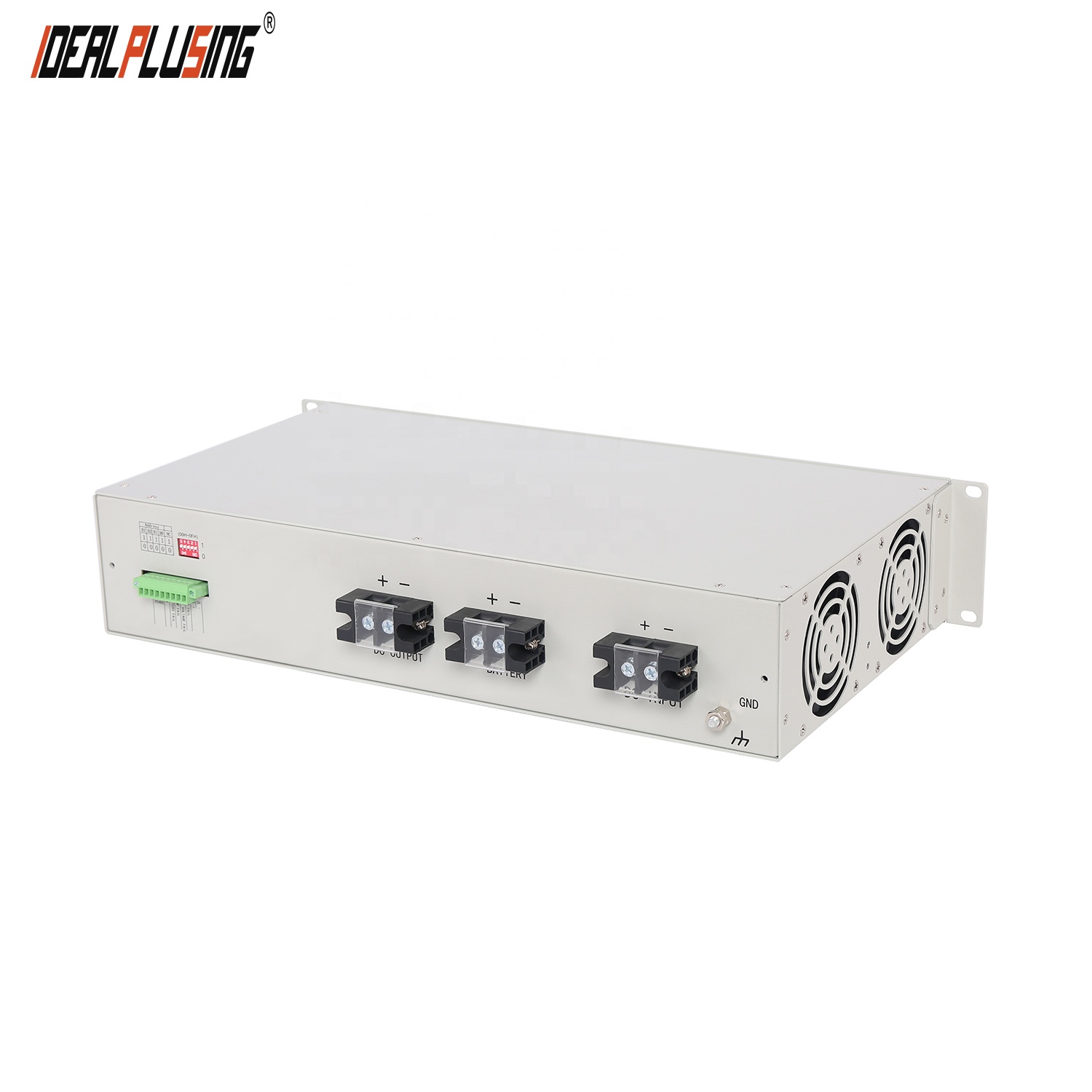

REFERENCE PICTURES
Frequently Asked Questions
What is the primary use of the IPS-RT110 series rectifier?
It is specifically designed for high-demand environments such as telecommunications base stations, server rooms, Ethernet/LAN networks, and program-controlled switches.
Does this unit support different input voltages?
Yes, the system is compatible with both 220V AC and 110V AC power supplies, offering a wide input voltage range to suit various global power grid requirements.
What safety protections are built into the device?
The rectifier includes comprehensive protection for AC input over-voltage, DC output over-voltage, over-current, and short circuiting to ensure equipment safety.
Can the output voltage and current be monitored?
Yes, the head module is equipped with a digital display that provides clear, real-time readings of both the output current and voltage.
What are the environmental operating limits?
The unit is designed to operate reliably in temperatures ranging from -25℃ to +55℃, and can maintain full output power throughout this range.
What is the form factor of the rectifier?
It features a standard 19-inch rack-mounted design with a 1U or 2U height, making it easy to integrate into existing industrial server racks.
