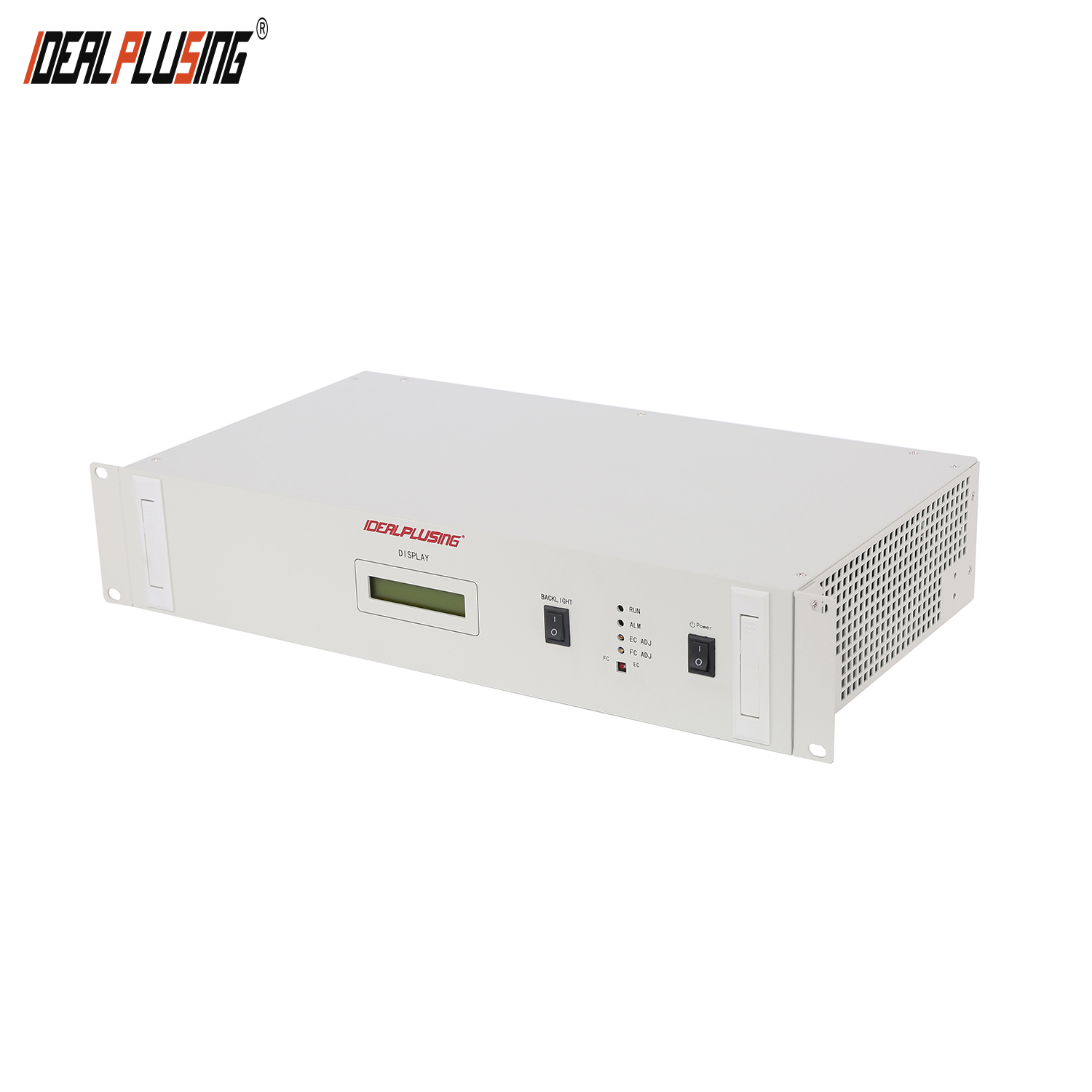

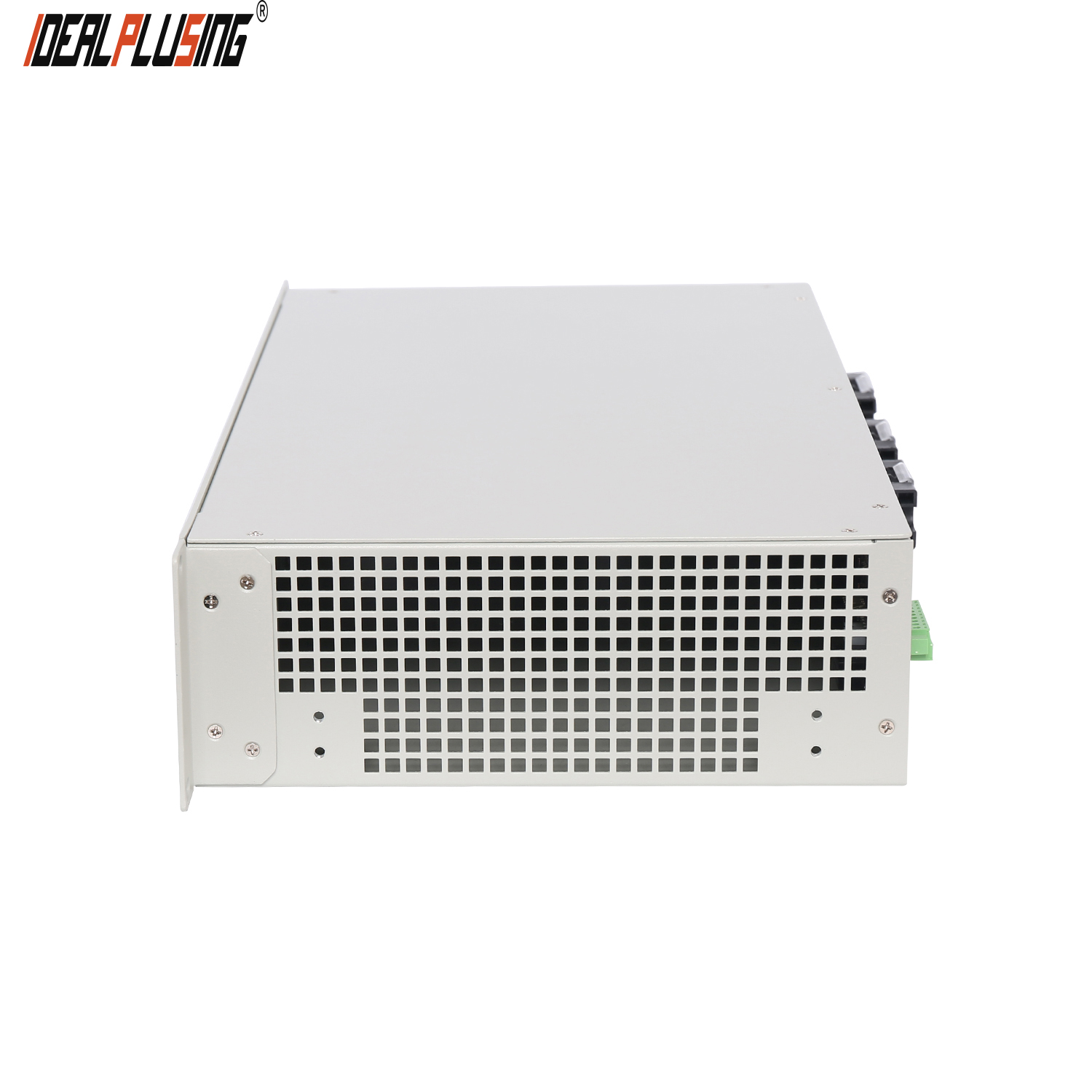

RackMount 110vdc 20a Rectifier Battery Charger
Product Description
Product Introduction
The high-frequency switching power supply series is primarily developed for mobile communications, program-controlled switches, access network equipment, telecommunications equipment, servers, local area networks, and communications base stations.

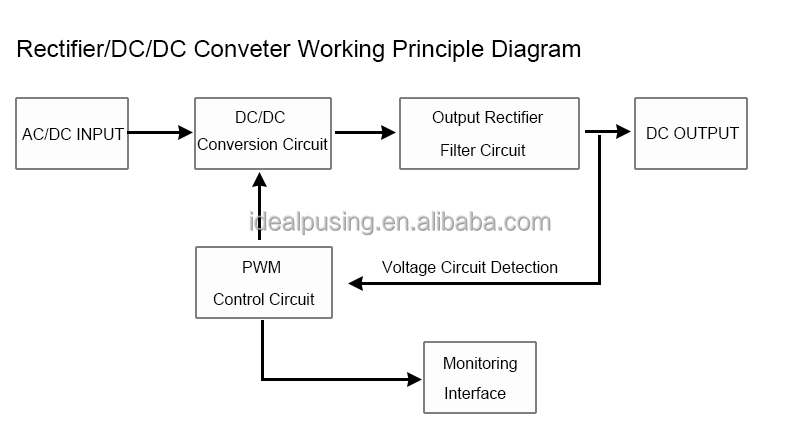

Utilizing advanced dual-tube forward switch technology, this series incorporates isolation design between modules to prevent interaction and ensure stable performance.
- Comprehensive protection: AC input over-voltage, DC output over-voltage, over-current, and short circuit protection.
- Standard rack-mount design: 19-inch width and 1U height, meeting industry electromagnetic compatibility limits (YD/T983).
- Ultra-low radiation and advanced electromagnetic compatibility design.
Product Specifications
- Application: Telecommunications equipment / switches / servers / Ethernet / LAN / MAN / communications room base station
- Working Mode: AC / DC
- Nominal Voltage: +110VDC, -110VDC
- Rated Current: 5A ~ 20A

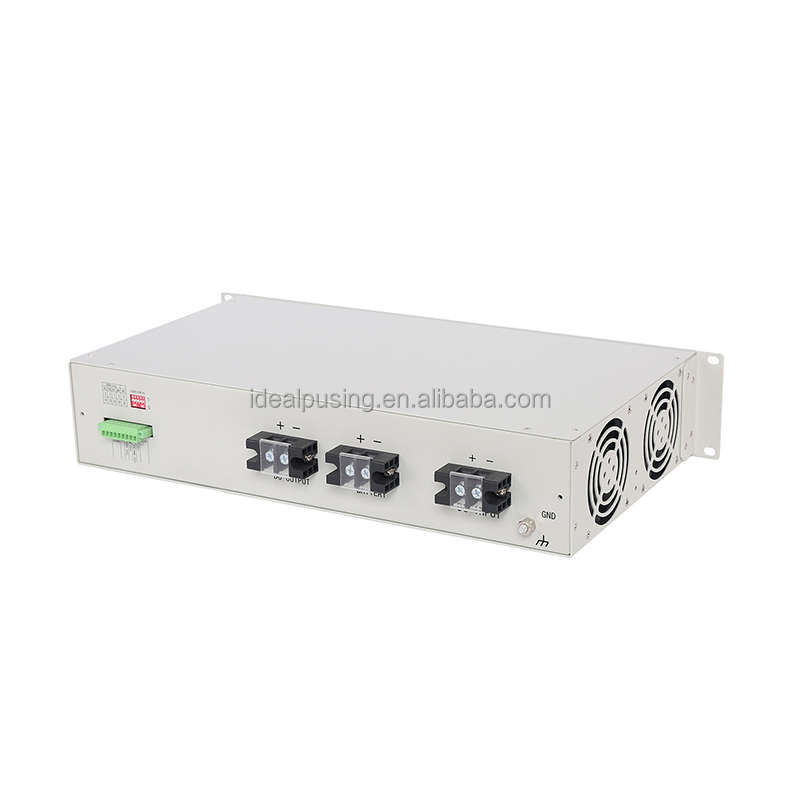

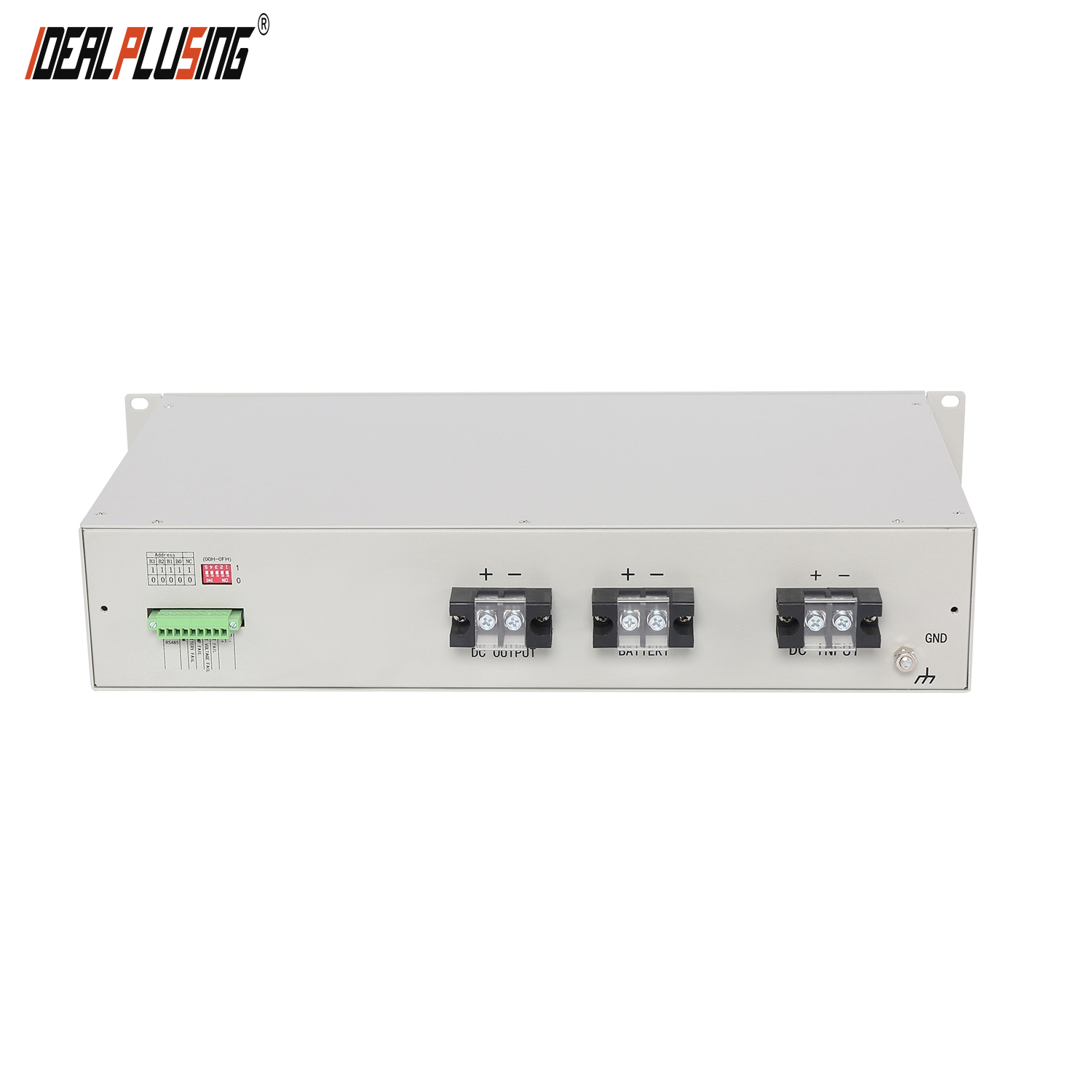

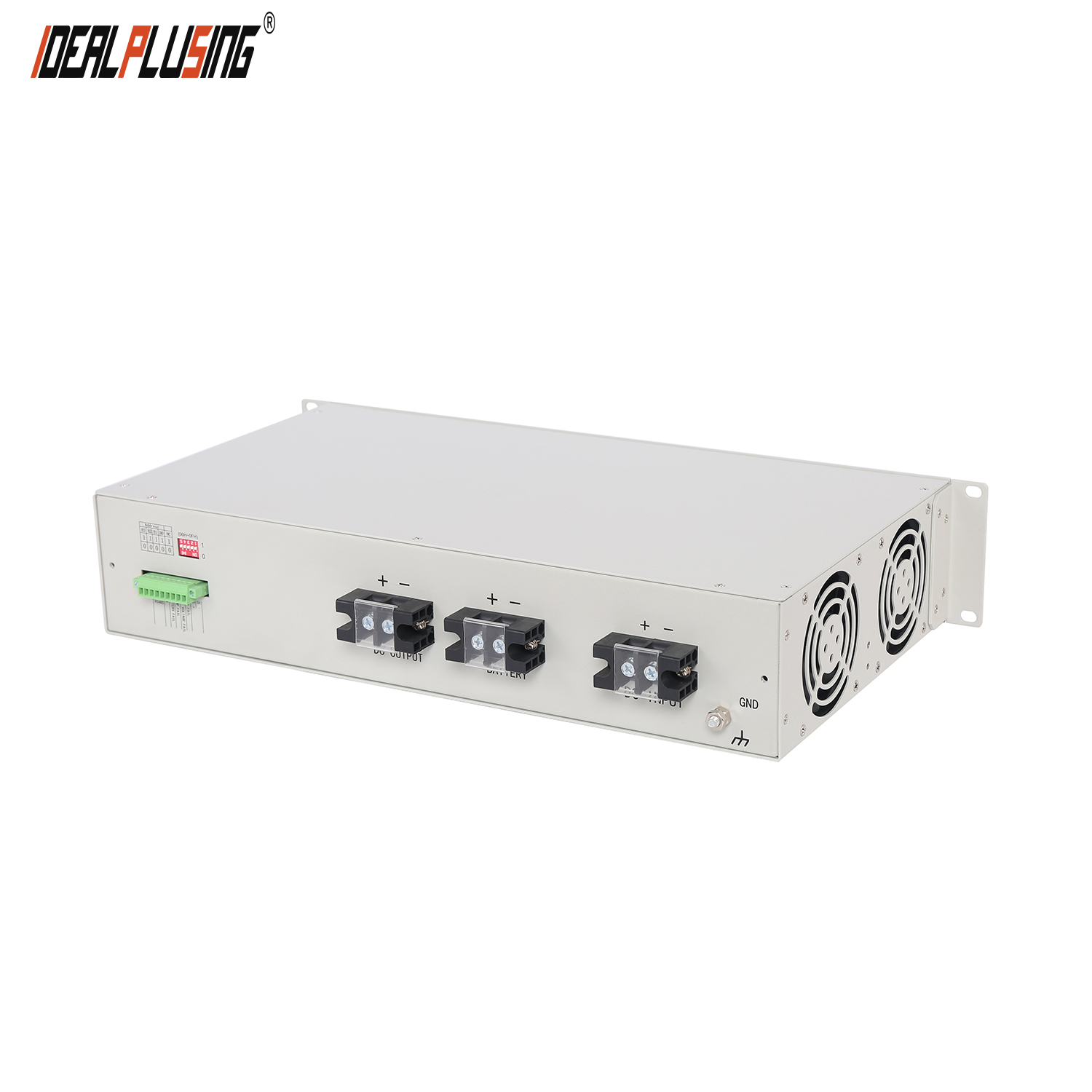

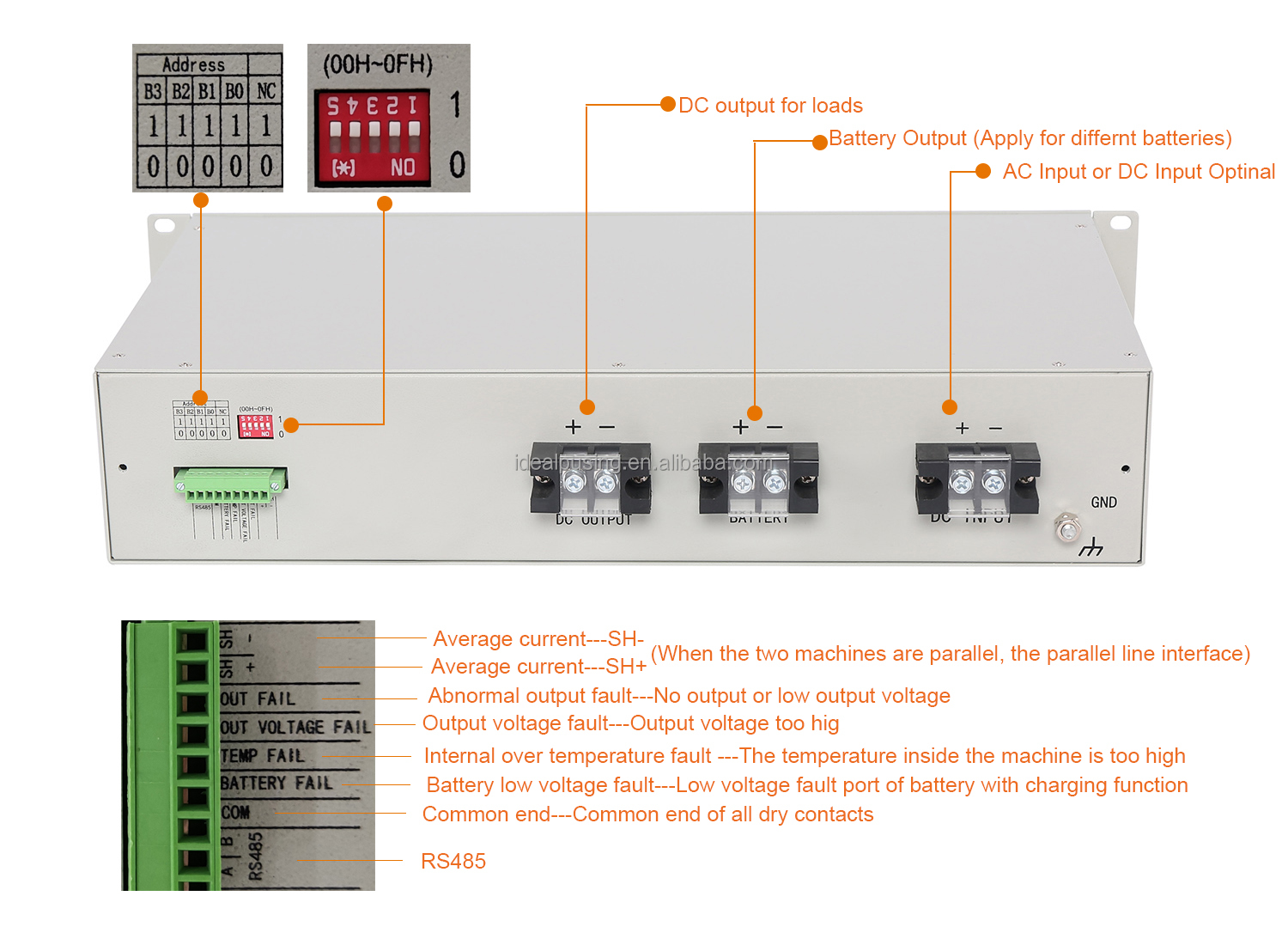

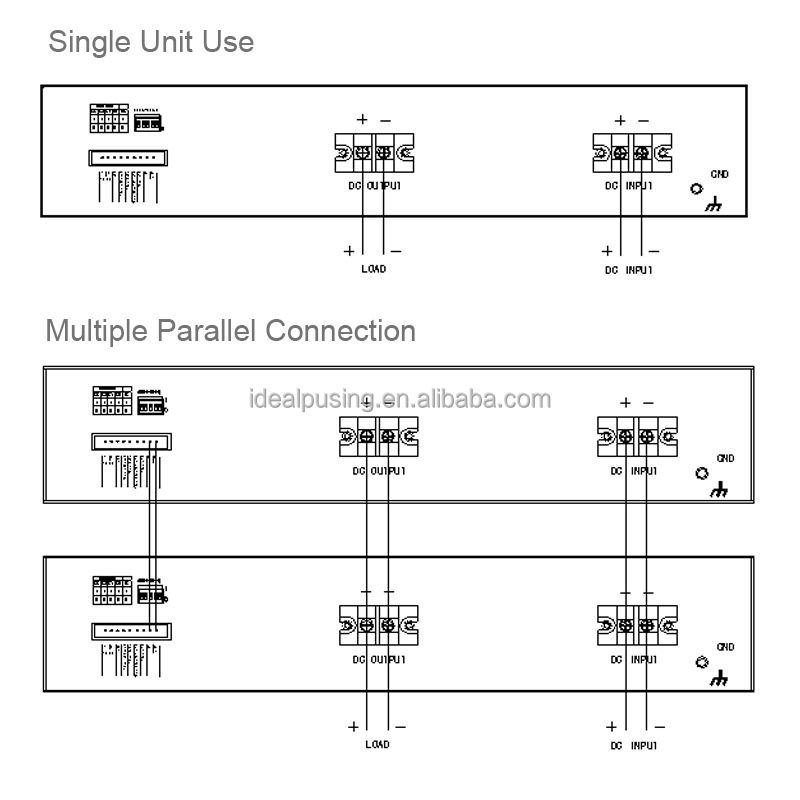

- Power Distribution: Terminal block output (1 load interface, 1 battery interface)
- Structure: Rack type (2U)
Main Features
- Advanced dual-tube forward switch technology with module isolation.
- Supports 220V AC and 110V AC power supply system standards.
- Wide input voltage range suitable for various grid requirements.

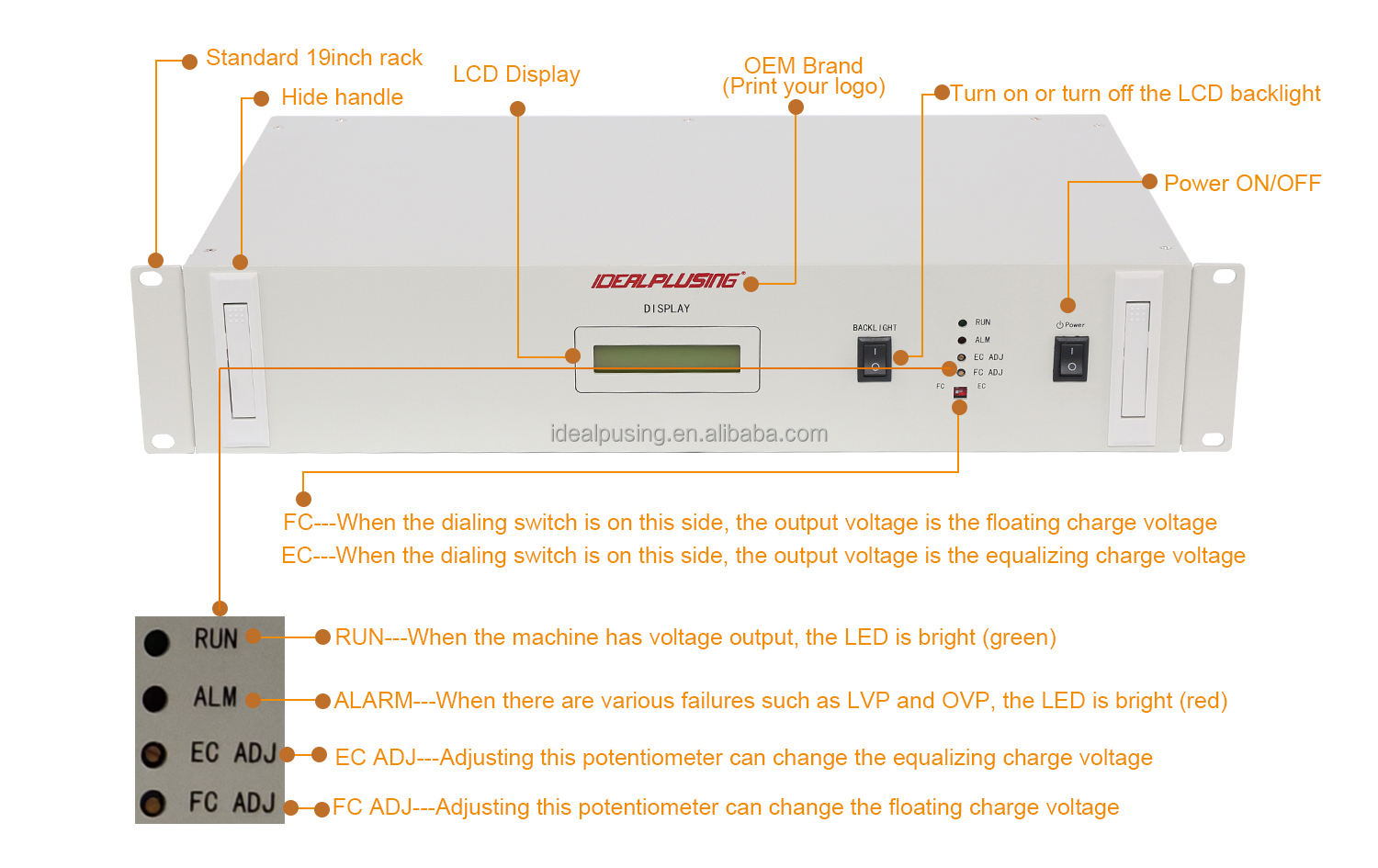

- Head module features a 3.5-digit display for real-time current and voltage.
- Standard 19-inch rack-mounted design (1U/2U height).
- Operating temperature range: -25℃ to +55℃ with full output power.
- Compact size and lightweight for easy maintenance.
- High compatibility with multiple communication power systems.
Technical Specifications
| Model | IPS-RT1105 | IPS-RT11010 | IPS-RT11020 | |
| AC Input | Input Voltage | 220VAC±20% or 110VAC±20% (Customize) | ||
| Frequency | 50/60Hz (Range: 45Hz~66Hz) | |||
| Efficiency | ≥88% | |||
| DC Output | Output Power | 550W | 1100W | 2200W |
| Output Voltage | 110VDC | |||
| Rated Current | 5A | 10A | 20A | |
| Reliability | MTBF ≥ 100,000h | |||

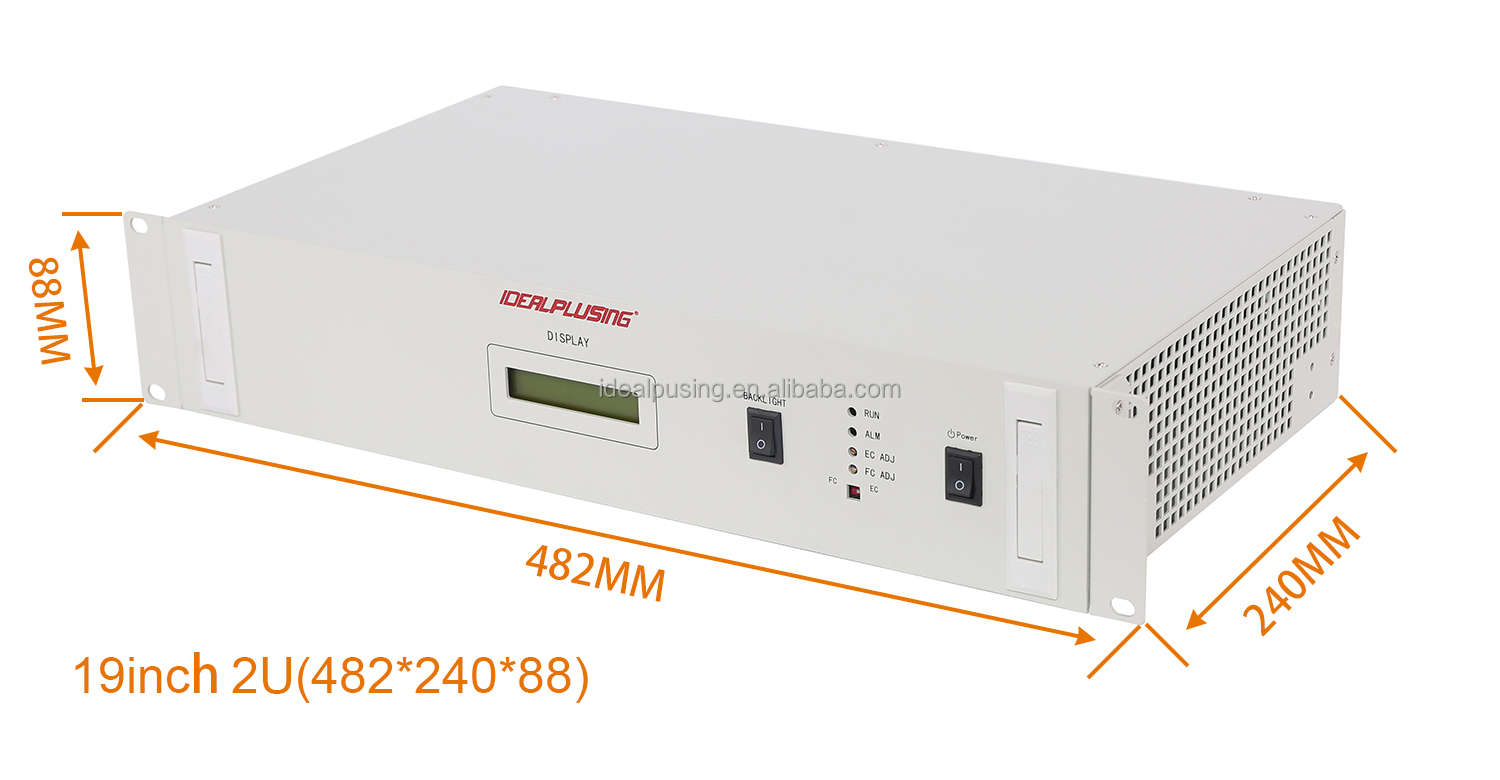

| Dimensions (L*W*H) | 482 * 240 * 88 mm | |||
Model List
| Model | Specification | Dimension (19 Inch 2U) |
| 110VDC SERIES | ||
| IPS-RT1105 | 110VDC 5A | L482*W240*H88(MM) |
| IPS-RT11010 | 110VDC 10A | L482*W240*H88(MM) |
| IPS-RT11020 | 110VDC 20A | L482*W240*H88(MM) |
| 48VDC SERIES | ||
| IPS-RT4820 | 48VDC 20A | L482*W240*H88(MM) |
| IPS-RT4850 | 48VDC 50A | L482*W240*H88(MM) |
Reference Pictures
Factory Display
Frequently Asked Questions
What are the primary applications for this power supply?
It is designed for telecommunications equipment, program-controlled switches, servers, LANs, and communication base stations.
Does the unit support global voltage standards?
Yes, it supports both 220V AC and 110V AC power supply systems with a wide input voltage range of ±20%.
What safety protections are built into the modules?
The system includes AC input over-voltage, DC output over-voltage, over-current, and short-circuit protection.
Can these modules be mounted in a standard rack?
Absolutely. The modules feature a standard 19-inch rack-mounted design with heights available in 1U or 2U configurations.
What is the operating temperature range?
The power supply operates efficiently within a range of -25℃ to +55℃ while maintaining full output power.
Is there a display to monitor performance?
Yes, the head module uses a 3.5-digit table display to show real-time output current and voltage for easy monitoring.
