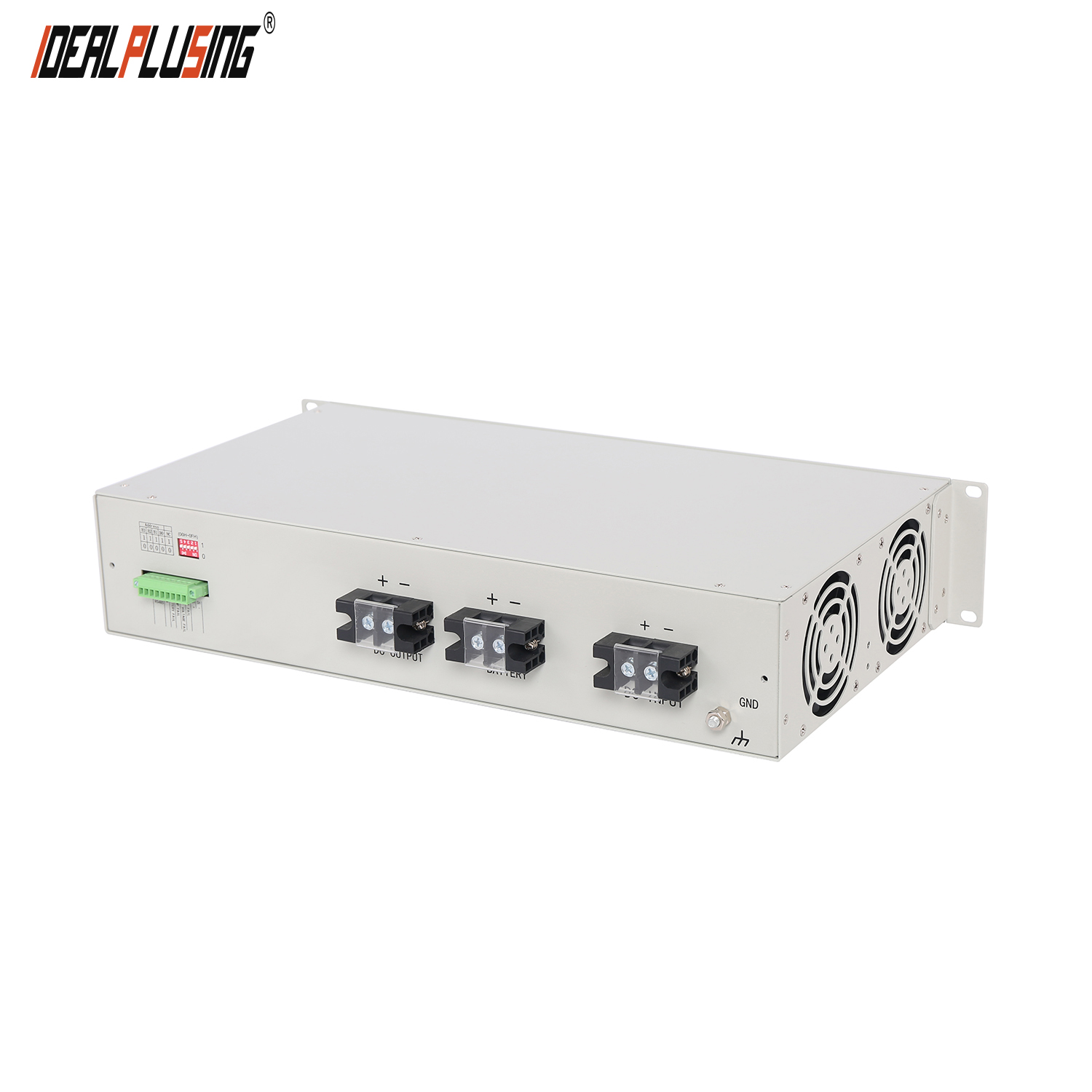

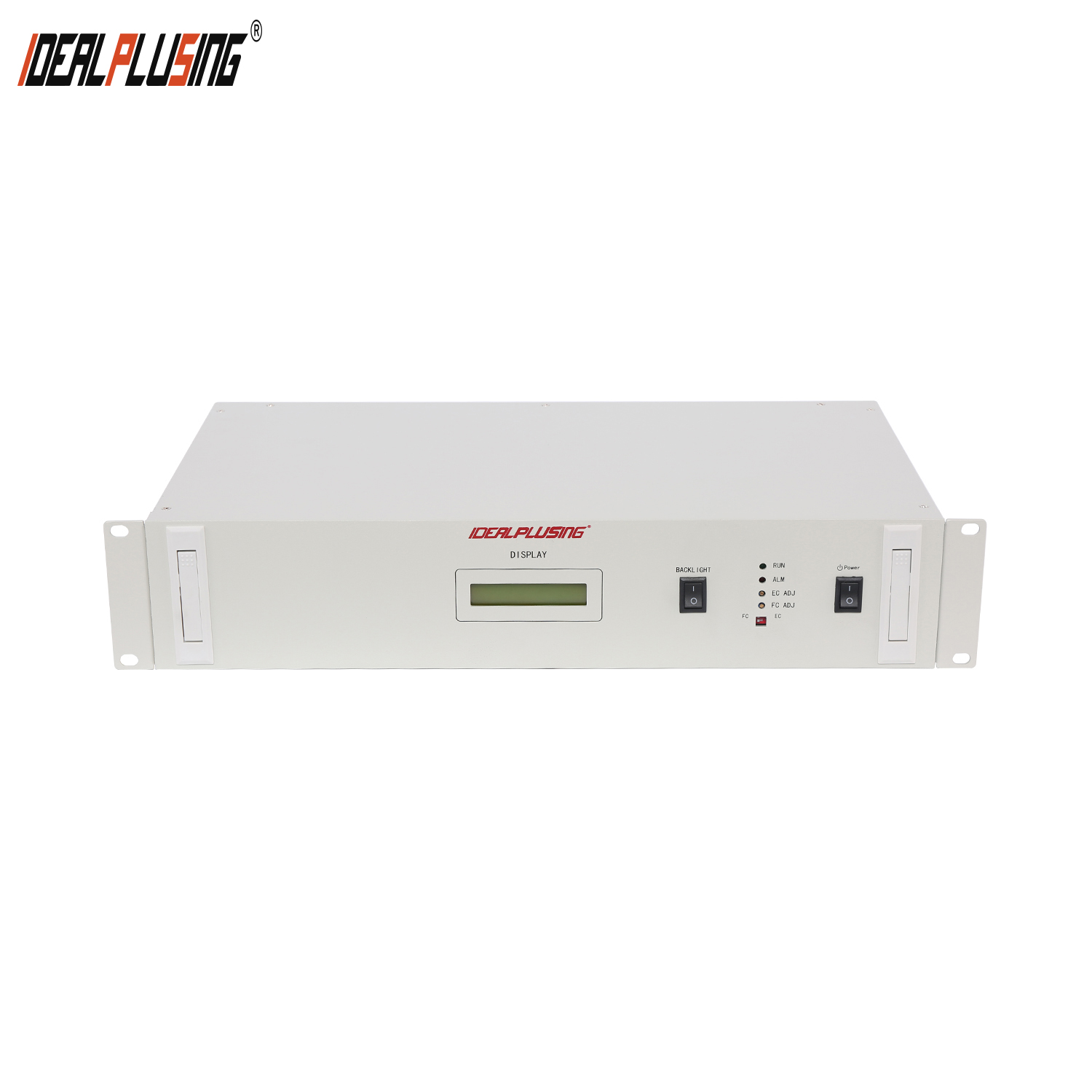

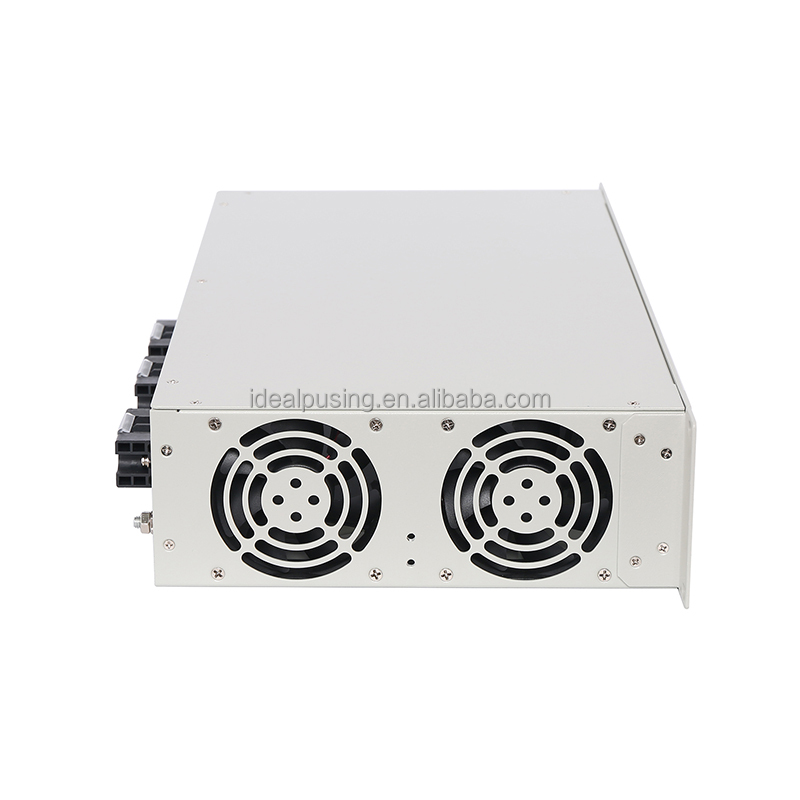

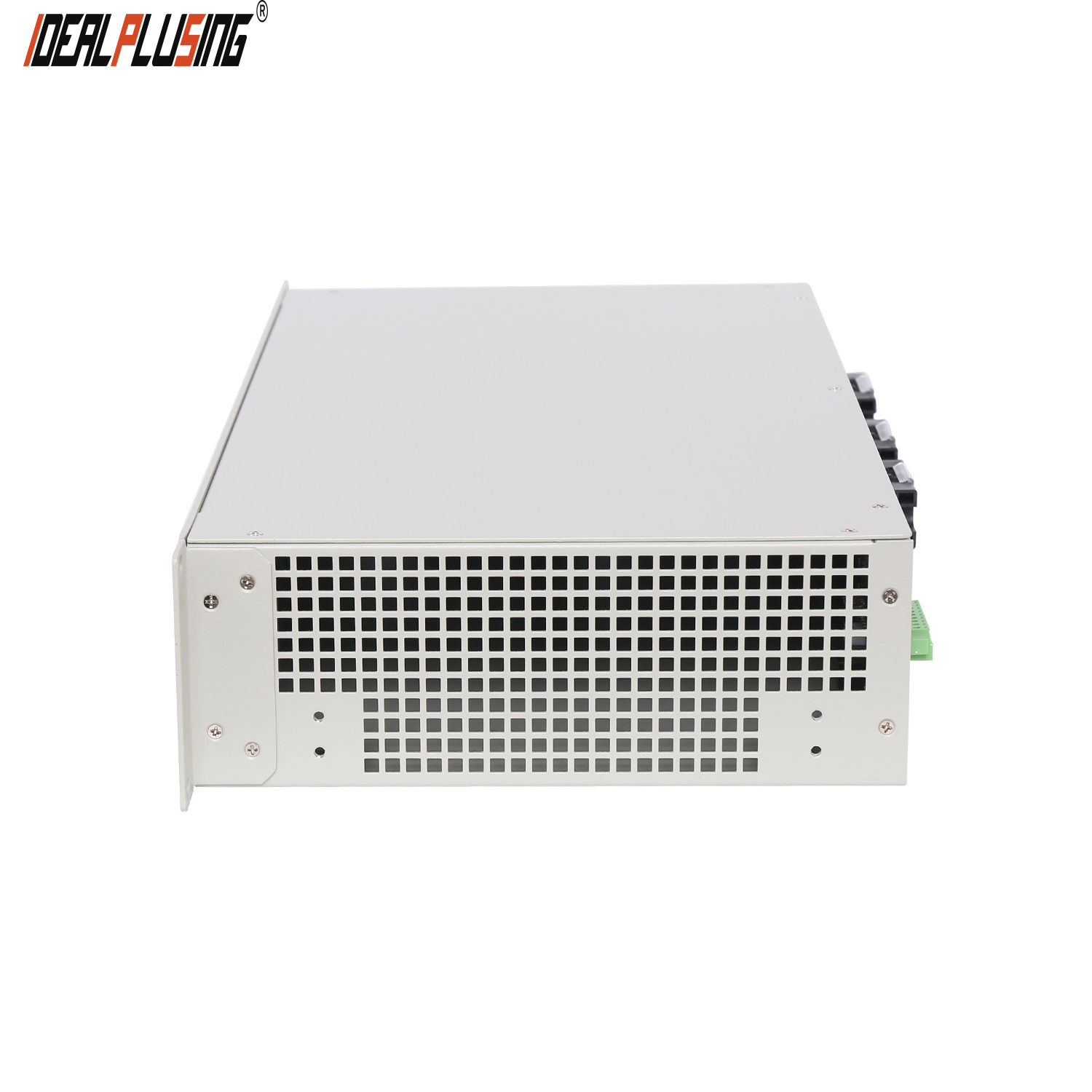

Telecom Rectifier 24V 50a With Battery Charger Port
Product Description
I. PRODUCT INTRODUCTION
The series of high-frequency switching power supply is designed for mobile communications, program-controlled switches, access network equipment, telecommunications equipment, servers, local area network, and communications room base stations.
Utilizing advanced dual-tube forward switch technology, the modules feature an isolation design to prevent interaction between units, ensuring high reliability and stability for mission-critical applications.
This power supply system includes comprehensive protection mechanisms such as AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short circuit protection.
Designed with a standard 19-inch 1U rack-mount structure, the module offers ultra-low radiation and meets stringent electromagnetic compatibility (EMC) standards for telecommunications environments.
II. PRODUCT SPECIFICATIONS
Environment: Telecom / Switches / Servers / LAN
Working Mode: AC / DC
Nominal Voltage: +24VDC, -24VDC
Rated Current: 10A ~ 50A

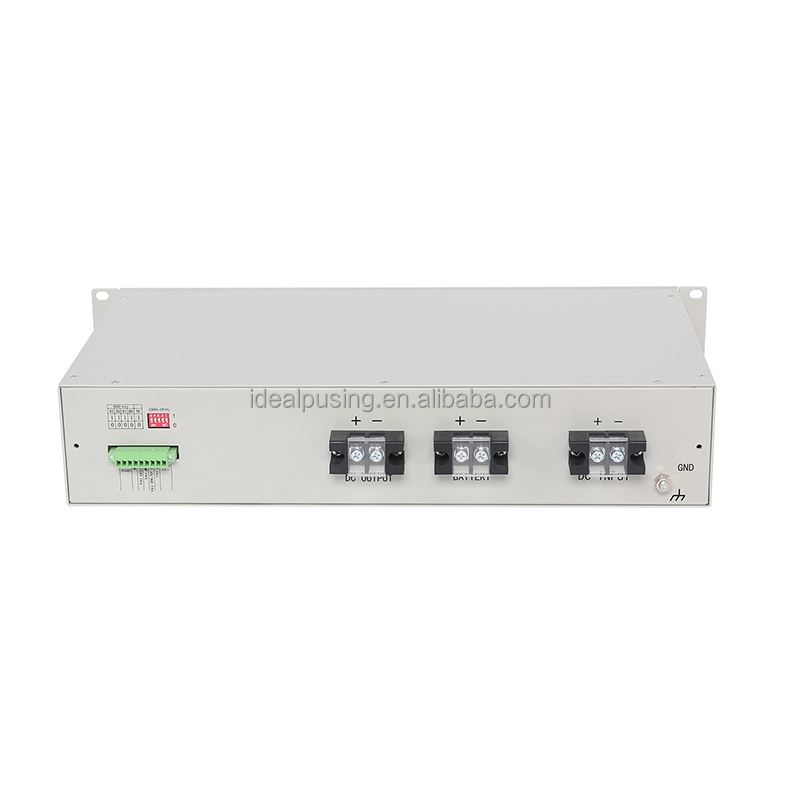

Distribution: Terminal block (1 Load, 1 Battery)
Structure: Rack type (1U/2U)
III. KEY FEATURES
Advanced dual-tube forward switch technology with module isolation.
Multiple protection: AC/DC over-voltage, over-current, and short circuit.
Wide input voltage range, compatible with 220V AC and 110V AC grid systems.
3.5-digit LED display for real-time output current and voltage monitoring.
Compact 19-inch standard rack-mounted design (1U/2U height).
Wide operating temperature: Full power output from -25°C to +55°C.
Small size, lightweight design for easy installation and maintenance.
IV. TECHNICAL DATA
| Model Parameters | IPS-RT2410 | IPS-RT2420 | IPS-RT2430 | IPS-RT2440 | IPS-RT2450 | |
|---|---|---|---|---|---|---|
| AC Input | ||||||
| Input Voltage | 220VAC±20% or 110VAC±20% | |||||
| Frequency | 50/60Hz (Range: 45Hz~66Hz) | |||||
| Efficiency | ≥88% | |||||
| DC Output | ||||||
| Output Power | 240W | 480W | 720W | 960W | 1200W | |
| Rated Current | 10A | 20A | 30A | 40A | 50A | |
| Peak Noise | ≤150mV (20MHz bandwidth) | |||||
| Mechanical & Environmental | ||||||
| Dimensions | L482*W240*H88 (MM) | |||||
| Weight (Net/Gross) | 8.5KG / 11KG | |||||
| Reliability | MTBF ≥ 100,000h | |||||
V. MODEL SELECTION LIST
| MODEL | SPECIFICATION | DIMENSION |
| IPS-RT4810~50 | 48VDC 10A-50A | 19Inch 2U, L482*W240*H88 |
| IPS-RT2410~50 | 24VDC 10A-50A | 19Inch 2U, L482*W240*H88 |
| IPS-RT2205~10 | 220VDC 5A-10A | 19Inch 2U, L482*W240*H88 |
| IPS-RT1105~20 | 110VDC 5A-20A | 19Inch 2U, L482*W240*H88 |
VI. REFERENCE PICTURES
FACTORY DISPLAY
FREQUENTLY ASKED QUESTIONS
Q1: What are the primary applications for the IPS-RT24 series?
A: It is designed for high-demand environments including telecommunications base stations, program-controlled switches, server rooms, and local area networks (LAN).
Q2: What type of protection does the unit offer?
A: The series includes multiple safety features: AC input over-voltage protection, DC output over-voltage protection, over-current protection, and short circuit protection.
Q3: Is the power supply compatible with different international power grids?
A: Yes, it supports both 220V AC and 110V AC input systems with a wide voltage tolerance of ±20%, making it highly compatible worldwide.
Q4: What is the operating temperature range for full power output?
A: The unit can maintain its full rated output power within a wide temperature range of -25°C to +55°C.
Q5: Can these modules be used in parallel?
A: Yes, they feature current capacity balancing for inter-module parallel connection, with current differences maintained below 2A under 10% load.
Q6: What is the standard physical size for installation?
A: The modules follow a standard 19-inch rack-mounted design, with heights available in 1U or 2U configurations to save space.
